SERVICING INFORMATION 18-17

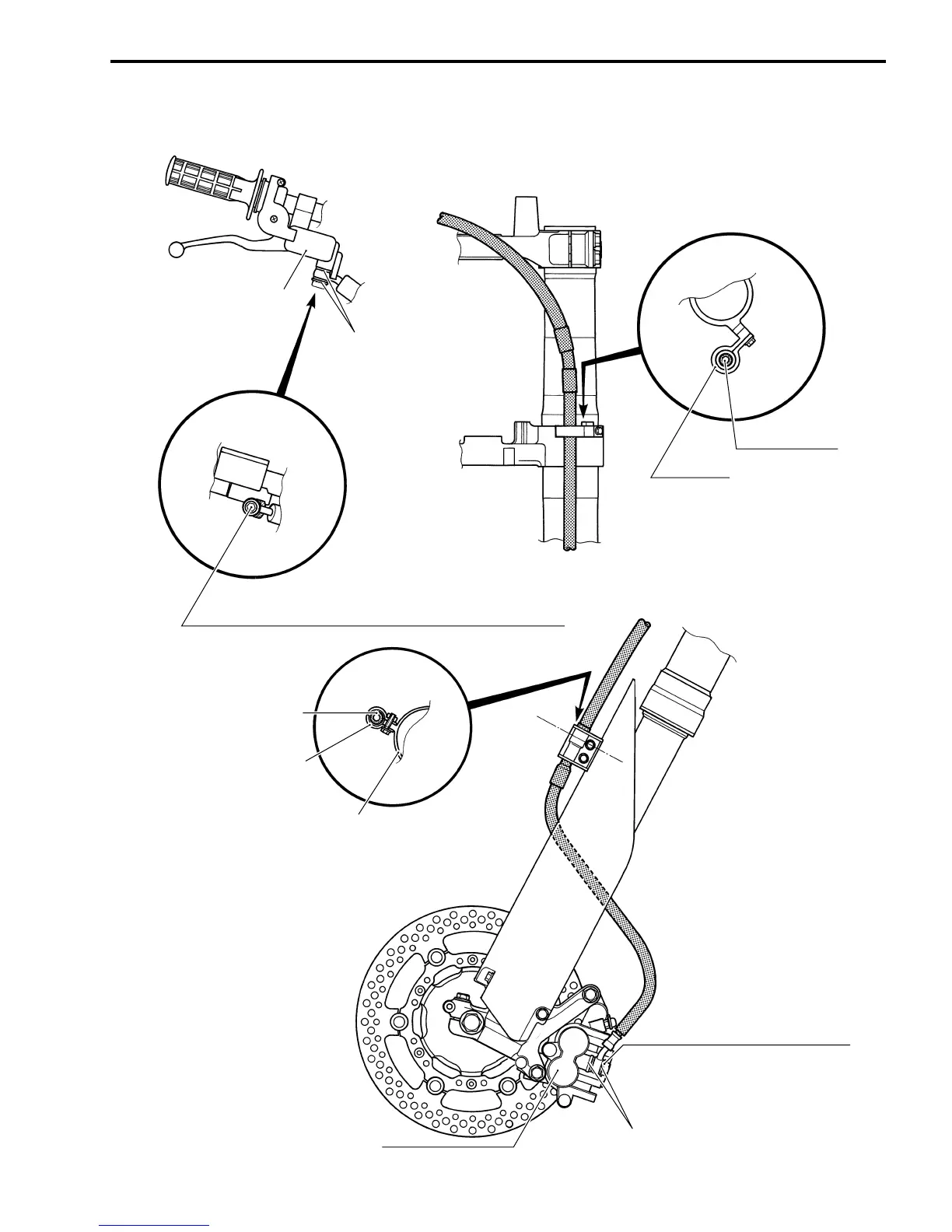

FRONT BRAKE HOSE ROUTING
Front brake master cylinder
Washer
Hose guide
Front brake hose
Front brake hose
Clamp
Front fork protector
Clamp the upper
difference portion in
brake hose diameter.
Washer
Caliper
After touching the brake hose
union to the stopper, tighten the
union bolt to the specified torque.
Set the brake hose end between the hose stopper,
then tighten the brake hose union bolt to the specified torque.
