ELECTRICAL SYSTEM 13-11

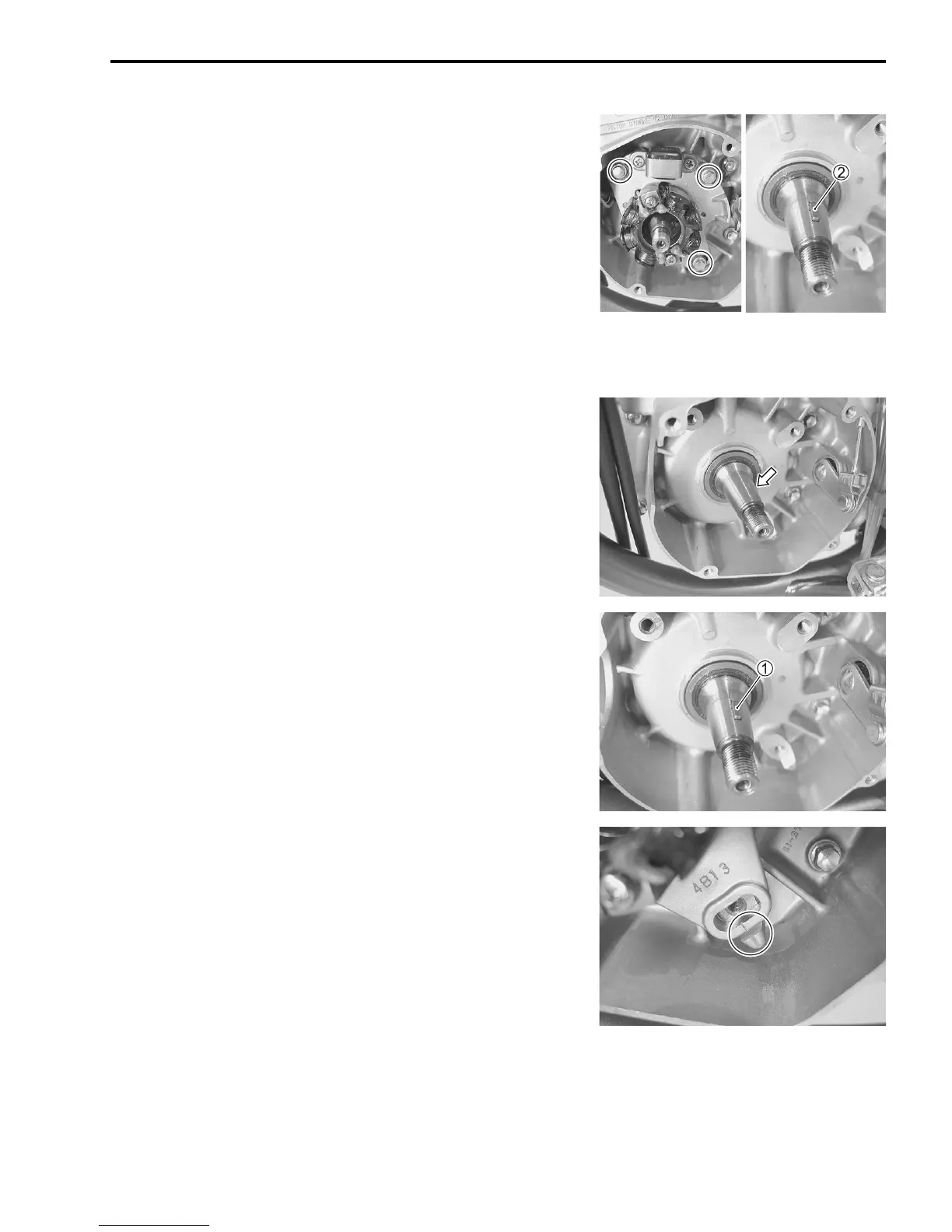

• Remove the stator.
• Remove the key 2.
INSTALLATION
Install the stator and magneto rotor in the reverse order of
removal. Pay attention to the following points:
• Degrease the tapered portion of the crankshaft and magneto
rotor.
• Fit the key 1 into the crankshaft.
• Align the line on the stator and line on the crankcase to set
the ignition timing correctly.
• Install the stator.
Stator mounting bolts: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
