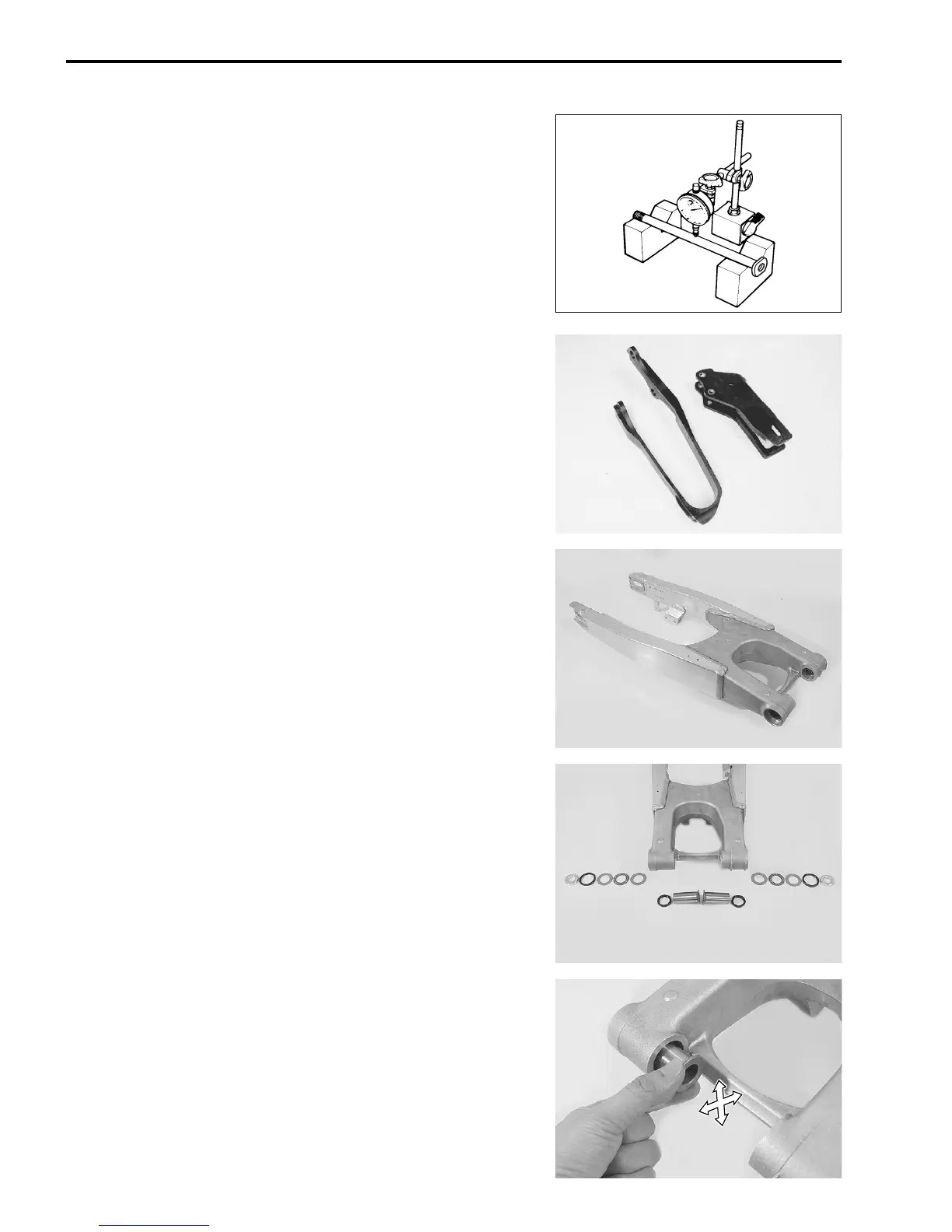

17-14 REAR SUSPENSION
INSPECTION
PIVOT SHAFT
• Measure the pivot shaft runout with the dial gauge and V-
blocks.
Swingarm pivot shaft runout
Service Limit: 0.3 mm (0.01 in)
09900-20607: Dial gauge (1/100 mm)
09900-20701: Magnetic stand
09900-21304: V-block set (100 mm)
CHAIN BUFFER AND CHAIN GUIDE
• Inspect the chain buffer and chain guide for damage and
excessive wear.
SWINGARM
• Inspect the swingarm for cracks and damage.
BEARING, SPACER, DUST SEAL
• Inspect the bearings, spacers and dust seals for damage.
• Insert the spacers into the bearings and inspect them for play
and smooth movement.
