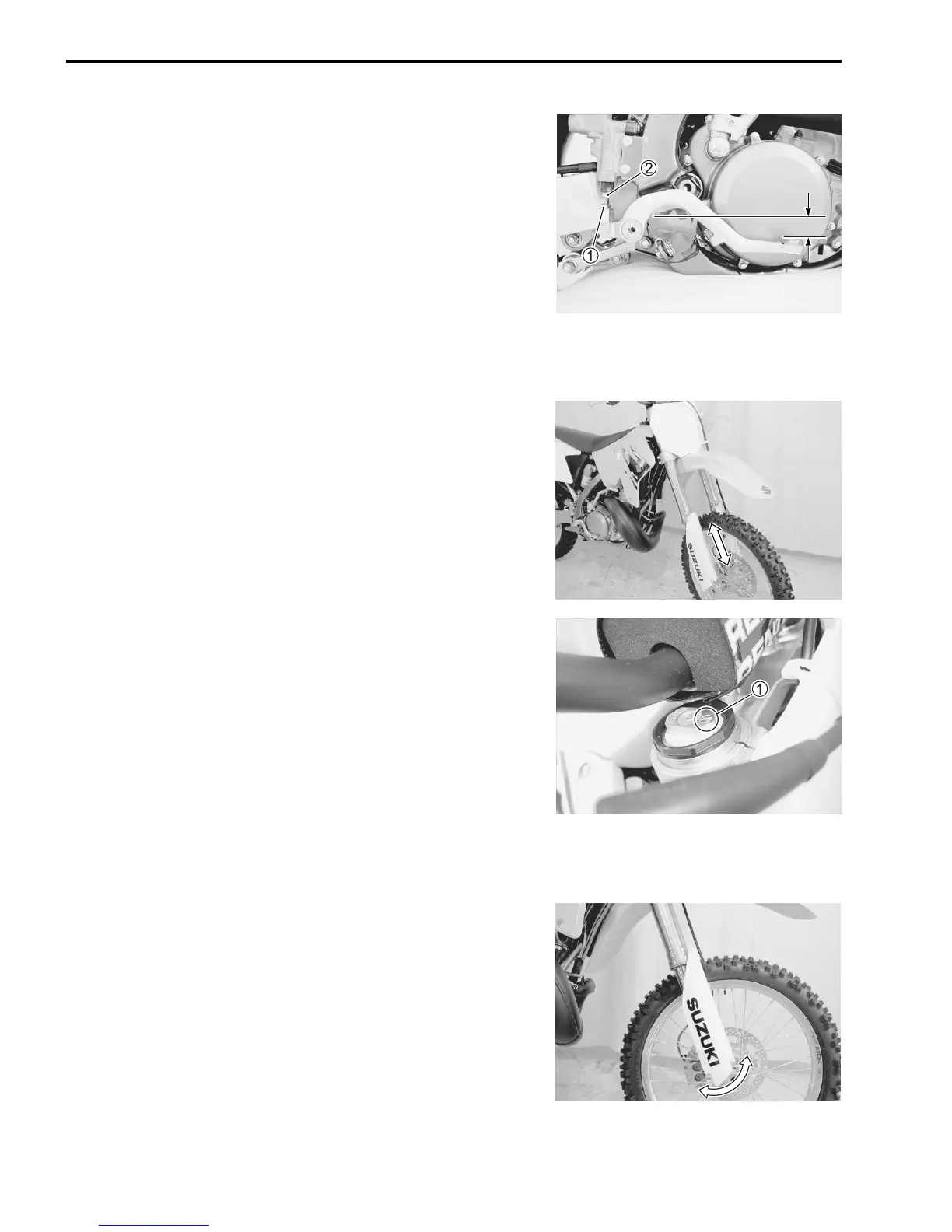

2-20 PERIODIC MAINTENANCE
BRAKE PEDAL HEIGHT ADJUSTMENT
Adjust the rear brake pedal height as follows:
• Loosen the lock-nut 1.
• Adjust the brake pedal height by turning the adjuster 2 to
locate the pedal 0 – 10 mm (0 – 0.39 in) below from the top
face of the footrest.
Brake pedal height: 0 – 10 mm (0 – 0.39 in) below
FRONT FORK
• Move the front fork up and down several times and inspect for
smooth movement.
• Inspect for damage and oil leaks.
• Inspect the bolts and nuts for tightness.
AIR PRESSURE ADJUSTMENT
• Place a stand under the chassis tube to lift the front wheel off
the ground.
• Remove the air bleed screw 1 and equalize the air pressure
in the front forks to atmospheric pressure.
• Refit the air bleed screw.
STEERING
• Inspect the steering by moving the front fork up and down,
and right and left. If the steering has play or binds, inspect
steering stem head nut tightness and steering bearings.
(16-23)
