18-20 SERVICING INFORMATION

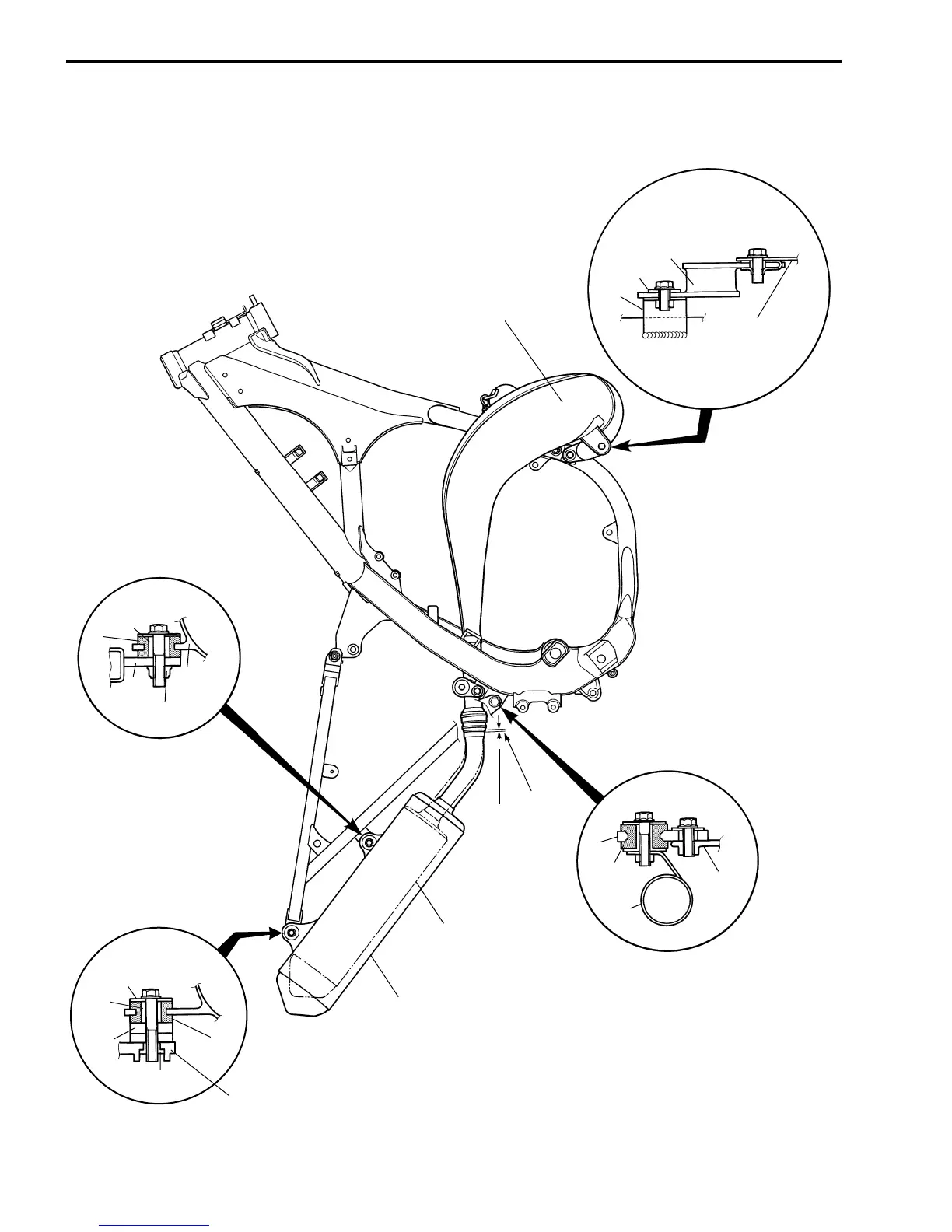

MUFFLER SET-UP
Seat rail
Silencer
Spacer
Cushion
Seat rail
Nut
Silencer
Silencer (E-19, 000)
Clearance
1st muffler
1st muffler
Frame
Washer
Damper
Muffler
Frame
Cushion
Muffler plate
Make clearance between
connector and exhaust stopper.
Silencer (E-03, 28)
Spacer
Washer
Cushion
Nut
Rear fender
Seat rail
Insert muffler to the
end of cylinder.
