SERVICING INFORMATION 18-15

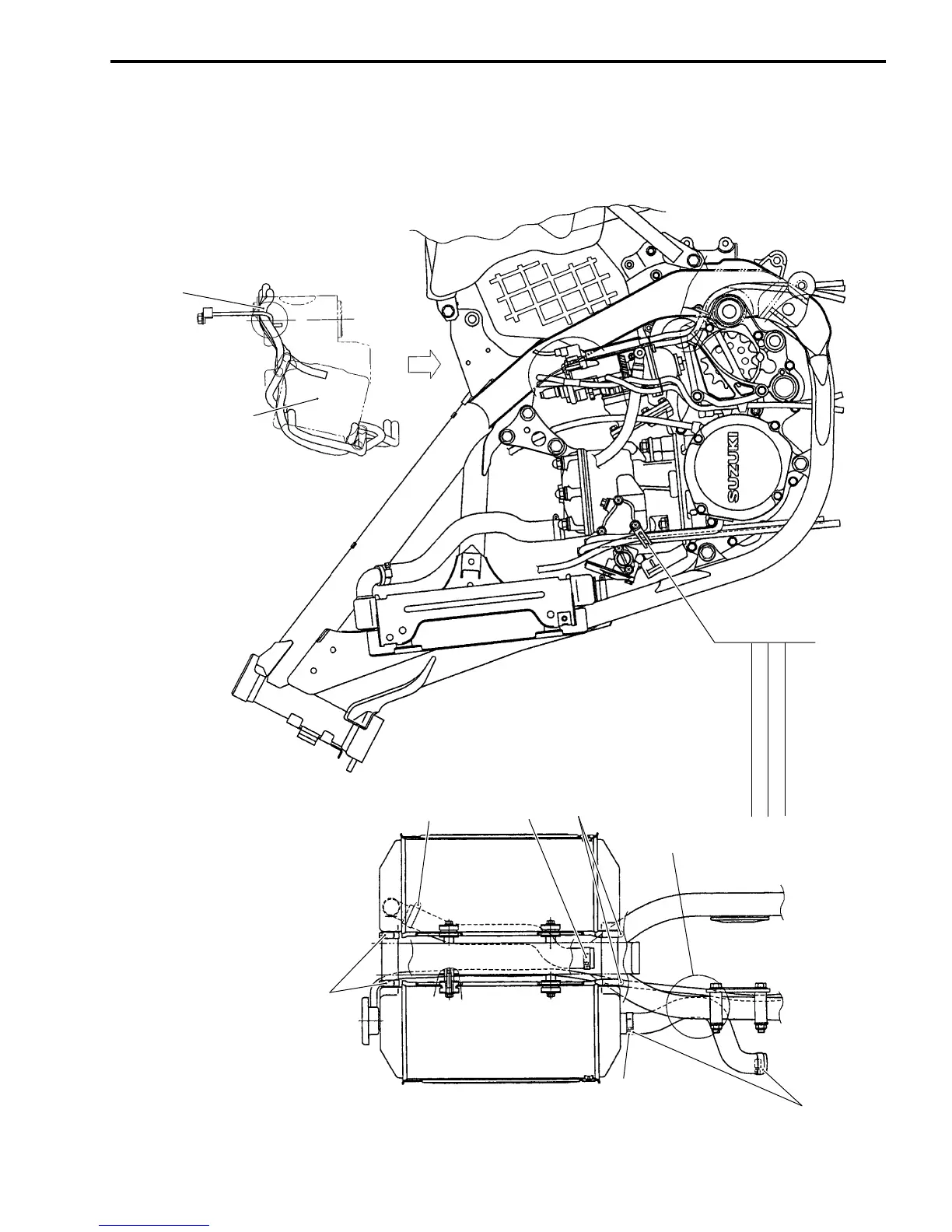

CARBURETOR HOSE AND WATER HOSE ROUTING
Face the white
marking paint left.
Face the clamp
left side.
Face the clamp
backward.
Face the clamp backward.
Face the
white marking
paint right.
Pass through the hoses inside the clamp.
Be carefull not to bend them.
Carburetor
Clamp
Cylinder breather hose
Exhaust valve breather hose
Magneto lead wire
Insert the hose firmly before clamp.
Clamp the end of hoses.
Face the clamp
downward.
The radiator outer hose must
pass behind the frame.
