CYLINDER, PISTON AND EXHAUST VALVE 6-21

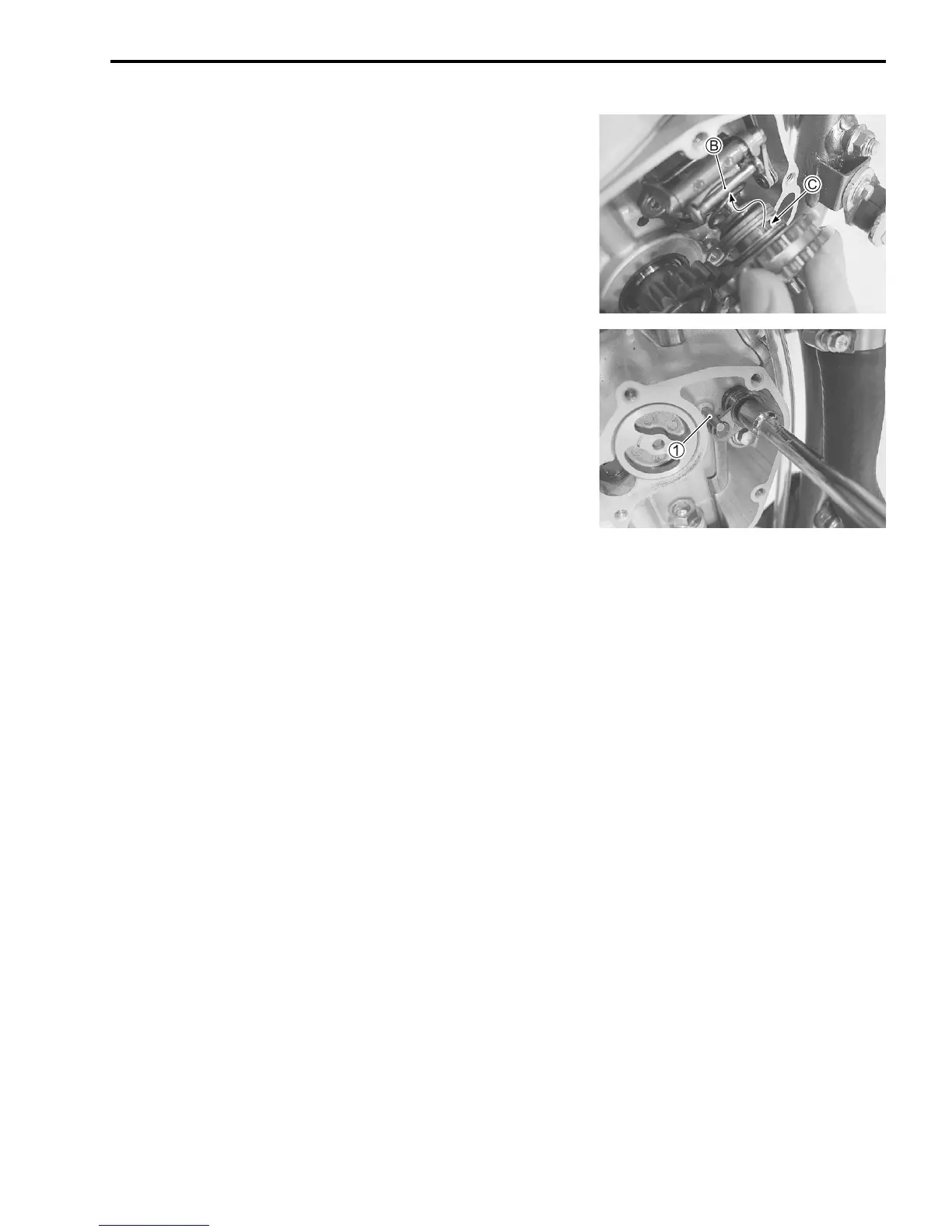

• Install the governer with the actuator B engaged with the
groove C of the governer.
• Connect the exhaust valve rod to the exhaust valve shaft and
tighten the exhaust valve rod bolt using the pin 1 as a stop-
per.
NOTE:
The pin 1 is one of the included parts.
Exhaust valve rod bolt: 10 N·m (1.0 kgf-m, 7.0 lb-ft)
• Install the right crankcase cover. (8-6)
• Install the exhaust side valve cover. (6-11)
• Install the exhaust pipe. (5-9)
INSPECTION AFTER INSTALLATION
After the installation, inspect the followings.
• Transmission oil level (2-9)
• Engine coolant level (2-11)
• Brake pedal heignt. (2-20)
