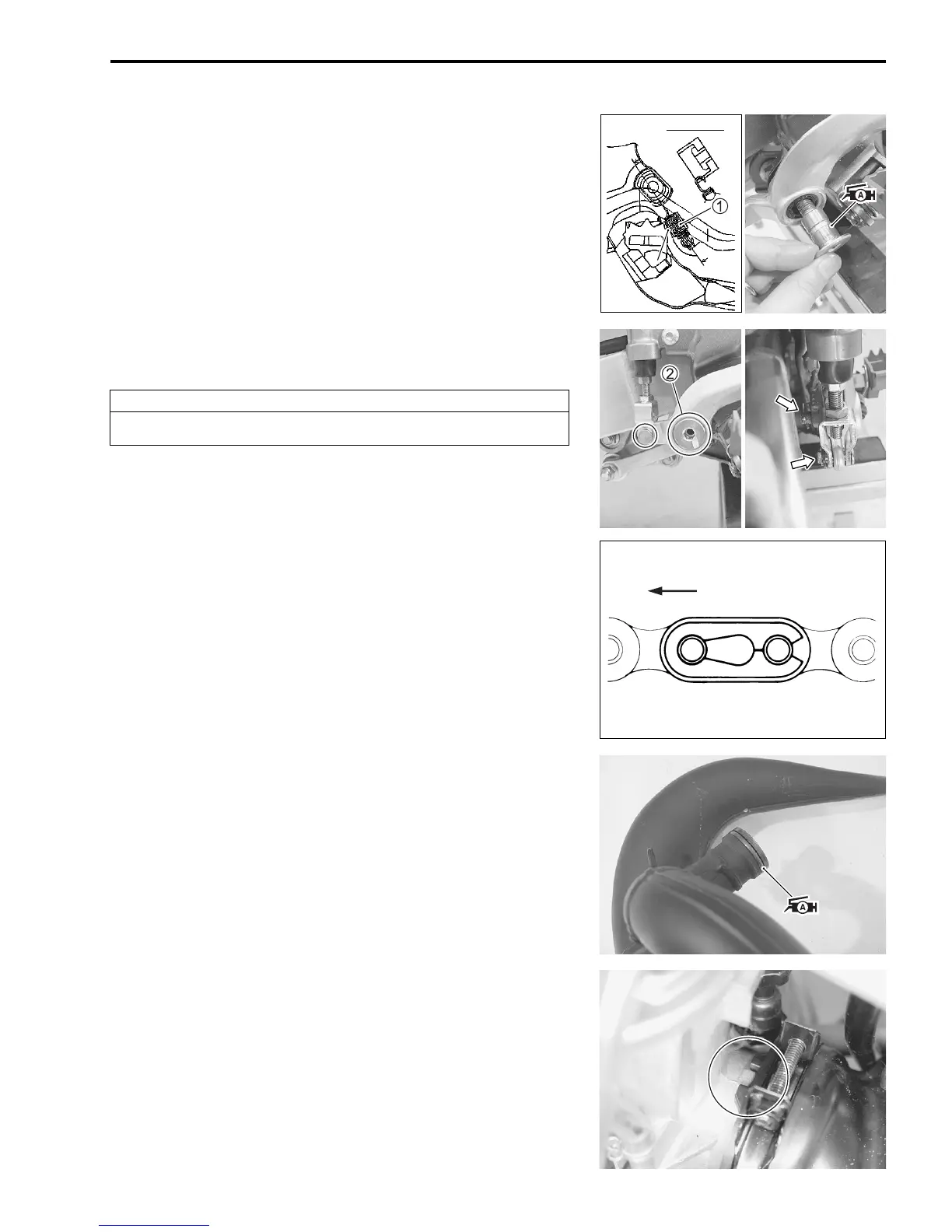

ENGINE REMOVAL AND INSTALLATION 5-9
• Install the spring 1 as shown.
• Apply grease to the brake pedal pivot bolt.
99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
• Tighten the brake pedal pivot bolt 2.
Brake pedal pivot bolt: 29 N·m (2.9 kgf-m, 21.0 lb-ft)
• Reassemble the drive chain clip so that the slit end faces
opposit to the direction of rotation.
• Install a new exhaust pipe gasket.
• Apply a small quantity of grease to the new O-ring before
installing the exhaust pipe.
99000-25010: SUZUKI SUPER GREASE “A”
(or equivalent grease)
• Fit the projection of the carburetor to the depression of the
intake pipe.
A
A
SECT AA
ProtectorProtector
CAUTION
Replace the cotter pins with new ones.
Direction of travel
To Next Page
