Scaling the vertical axis

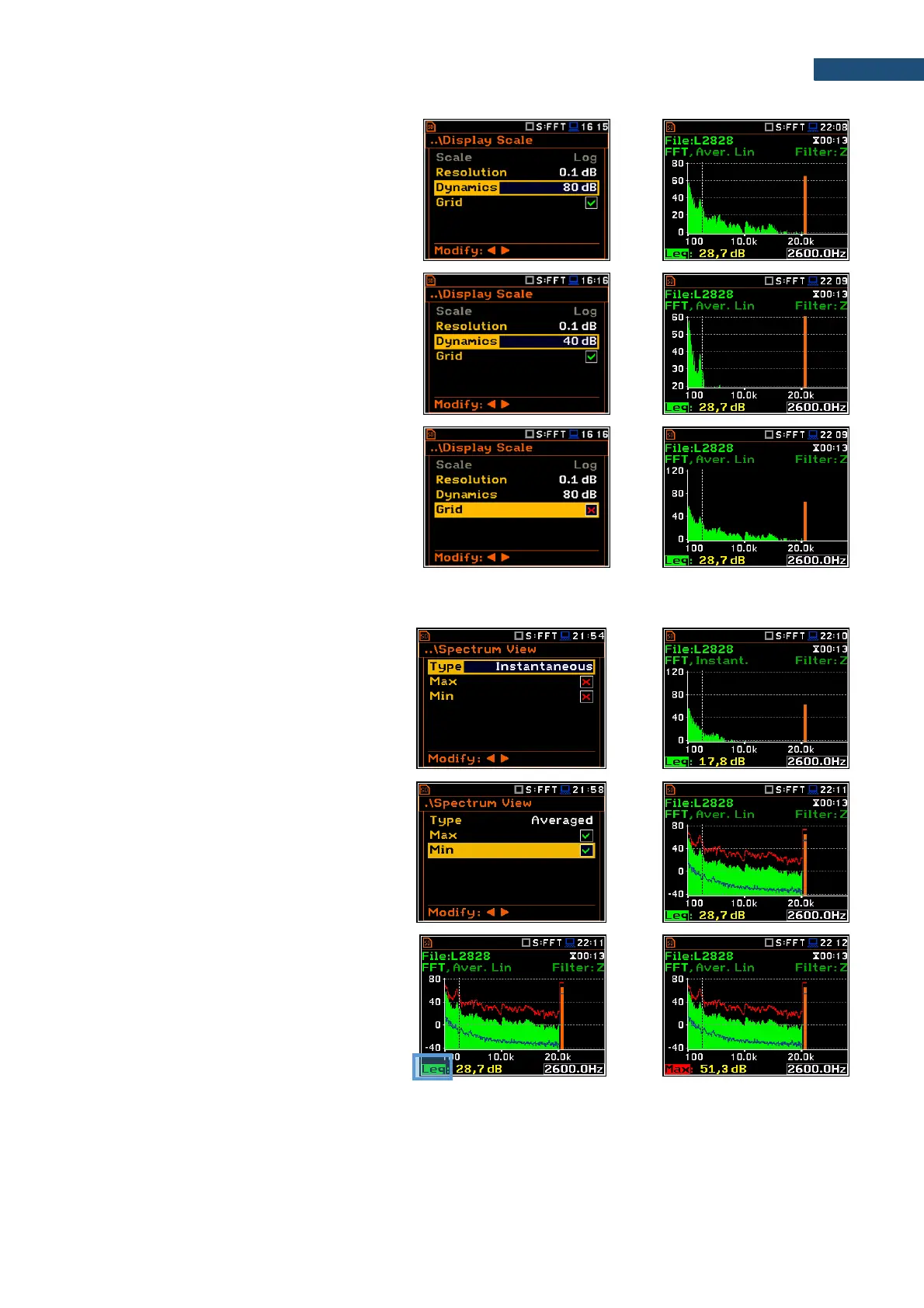

The Dynamics parameter defines the
dynamic range of the Y-axis scale.
=>
It is possible to select the range from the set:
10dB, 20dB, 40dB, 80dB, 100dB and 120dB.
=>
Toggling the grid
The Grid position allows to toggle the
horizontal grid lines of the logger or spectrum
plot.
=>
11.3.3 Selection of spectra to be viewed - Spectrum View
In the Spectrum View screen, you can select
the different spectra to be viewed in the
Spectrum display mode: Averaged,
Instantaneous, Max or Min.
=>
When the Averaged or Instantaneous
spectrum is selected, you can additionally
switch on or off the presentation of the Max
and/or Min values by switching the Max or
Min parameters on.
=>
To enable to read the Max or Min values at
the cursor position, select the field in the lower
left-hand corner of the display with the ▲ / ▼
key. Then select the appropriate value with
the ◄ / ► key pressed together with <Alt>.
<Alt/►>
