6 CONFIGURING DATA VIEWING – Display
The Display section contains elements for
programming presentation of measurement
result and display parameters.
The content of the Display list depends on
selected measurement function.
The Display section contains following items:
Display Modes allowing to define active modes of a measurement results presentation;
Display Scale allowing to adjust the scale in a graphical modes of the measurement results
presentation;
Logger View allowing to select and present results stored in logger files;
Spectrum View allowing to select spectra to be viewed: instantaneous, averaged, maximum or
minimum. This position appears only in spectrum analyser functions;
Spectrum Type allowing to change the spectrum type presented on the display: acceleration,
velocity or displacement. This position appears only in spectrum analyser
functions in the Vibration mode;
Screen Setup allowing to set up the brightness and switch on/off the energy saver function.
6.1 ACTIVATION OF THE DISPLAY MODES - DISPLAY MODES

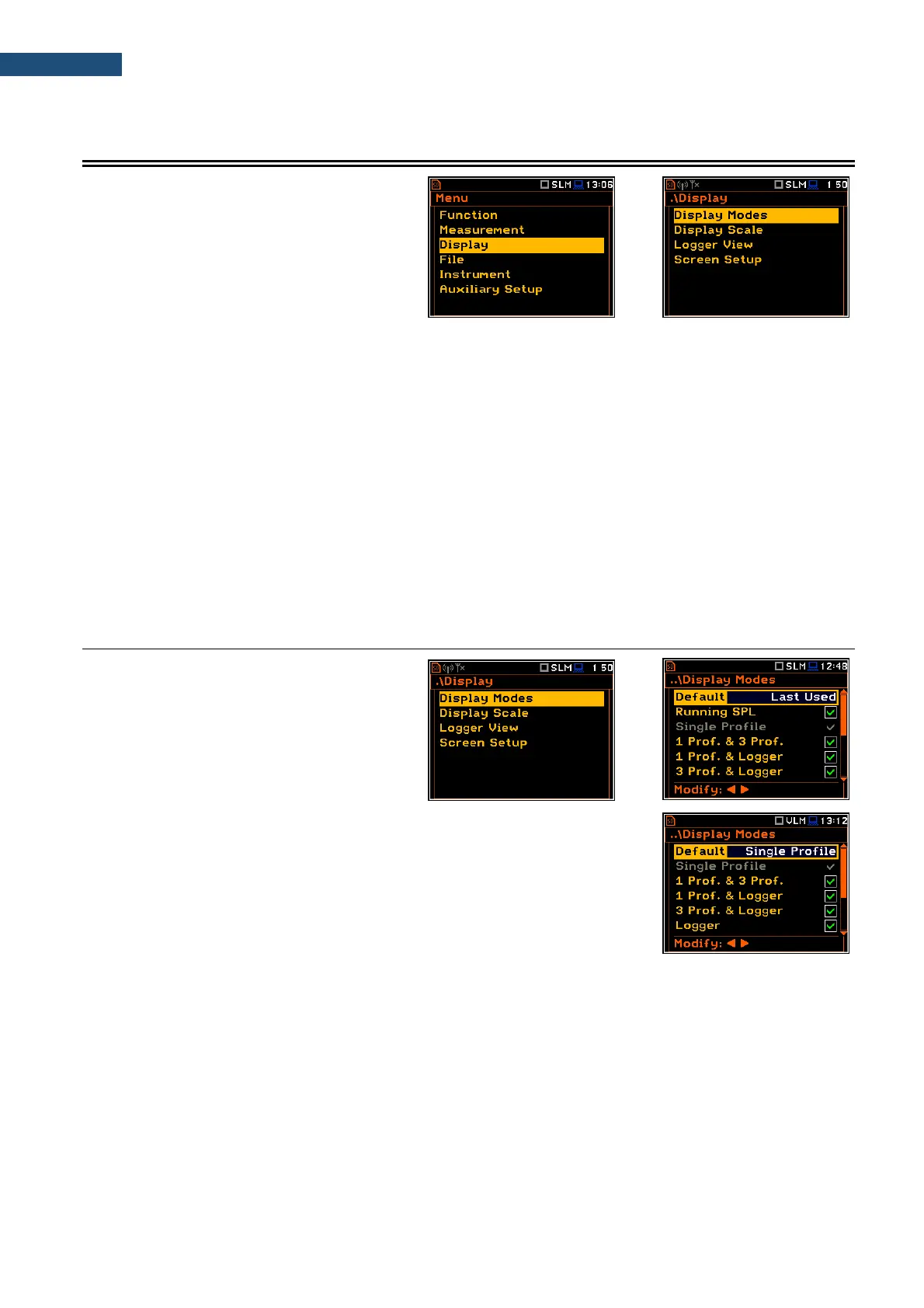

The Single Profile view (results display
mode) is always active and available. Other
views can be enabled or disabled in the
Display Modes screen.
You may change views among those, that
were enabled in the Display Modes screen.
In the Sound Level Meter mode, following views are available: Running SPL,
Single Profile, 1 Prof. & 3 Prof, 1 Prof. & Logger, 3 Prof. & Logger,
Logger, Statistics, Meter Table, GPS and File Info.
In the Vibration Level Meter, following views are available: Single Profile,
1 Prof. & 3 Prof., 1 Prof. & Logger, 3 Prof. & Logger, Logger, Meter Table,
GPS and File Info.
In the Default position, you can define which view will be presented after instrument’s turn on. If you select
Last Used the instrument will be switched to the view used before the instrument turning off.
Changing views
Being in the measurement mode you can change the view with the ▲ / ▼ key pressed together with <Alt>.
