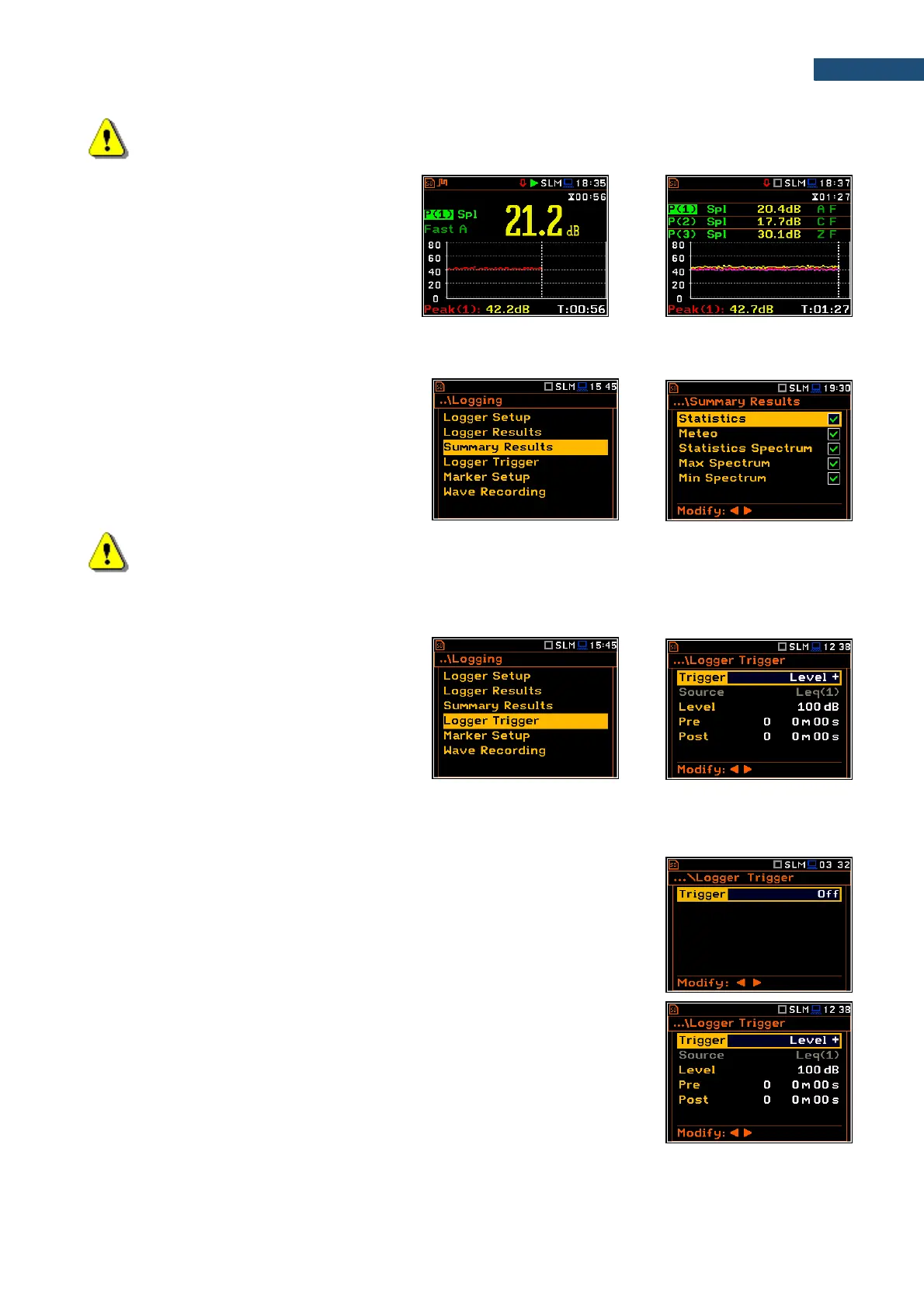

Note: When Logger is disabled or no Logger results were selected, the logger plot cannot be
activated in Display Modes and therefore doesn’t appear on the display.
When Logger is enabled and results for
logging selected, the logger plot will be
available in measurement views.
5.4.3 Selecting additional summary results for saving – Summary Results
The Summary Results list allows to exclude
saving in the file some summary results, like:
Statistics, Meteo, Statistics Spectrum,
Max Spectrum and Min Spectrum for Sound
measurements and Meteo, Max Spectrum
and Min Spectrum for Vibration
measurements.
Note: The Meteo results are transmitted to the instrument from the weather station connected to the
monitoring station SV 279 PRO or SV 279 PRIME.
5.4.4 Triggering the logger results saving – Logger Trigger
In the Logger Trigger list, you can configure
the way the logger results will be registered in
the logger file. It is a context list in which: the
trigger can be disabled (Off) or enabled by
selecting its type in the Trigger position.
When the trigger type is selected, other parameters appear in the list: measured result that is checked for a
trigger condition (Source), threshold level (Level) as well as number of results saved in the logger file before the
trigger (Pre) and number of results saved in the logger file after the trigger (Post).
Trigger disabling
The logger trigger (Trigger) can be switched Off with the ◄ key. The trigger is
switched on if the Level + or Level – mode is selected with the ► key.
Level type trigger
The Level +/Level - trigger enables logging of Logger results averaged by the
Logger Step period under the condition: value of the RMS result (Source)
averaged by the Logger Step period is greater/lower than the threshold level
(Level). In other cases, the logging is skipped.
Due to this type of trigger it is possible to separate results related to the high
noise level.
