To start using the instrument the user should turn it on with the <Shift> and <Start/Stop> keys at the same time.
Hold both keys down for 1 or 2 seconds and release to switch on.
The instrument is controlled by means of nine keys on the keypad. Using these keys, one can access all available
functions and change the value of all available parameters.
The instrument is equipped with the super contrast OLED color display (320 x 240 pixels), which displays the
measurement results and the configuration menu.
3.1 BASIS OF THE INSTRUMENT’S CONTROL
The instrument has two general modes of operation: measurement performance and results preview mode and
configuration mode with the use of Menu functionality.
The measurement results can be viewed in different view modes, the set of which depend on the selected
Measurement Function and which you can change and activate/deactivate.

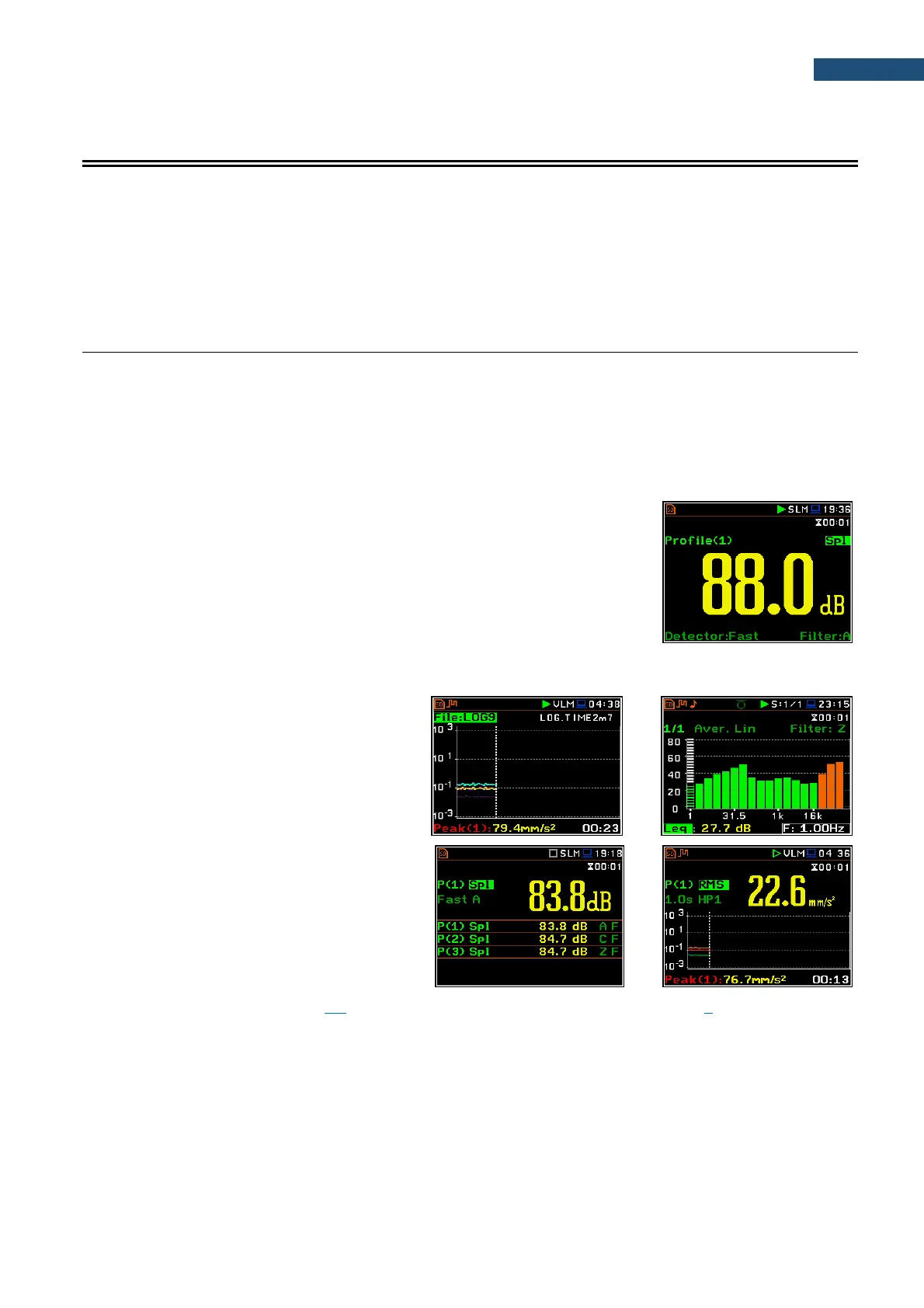

Display modes
Display modes present some measurement results as well as additional
information in the way of icons regarding:
• instrument status: memory, power, real time, Bluetooth, GPS, connection
with the modem etc.;
• measurement status: measurement function, measurement elapsed time,
measurement start/stop/pause, trigger, logger etc.;
• measurement parameters: measured result, profile number, file name,
detector type, filter etc.
Measurement results can be presented in
different views, so called display modes, some
of which are always available, and some can
be activated or deactivated.
Some views present numerical and some
graphical results, like on the right-hand
example: time-history plot and spectrum.
In some views the screen is divided into two
parts to show more numerical results in
different formats or both numerical and
graphical results.
If you are in the measurement mode, you can
switch between views using the â–² / â–¼ keys
pressed together with <Shift>.
All icons are described in Chapter 3.4, other fields and view control functions - in Chapter 6.
To configure a measurement or the instrument, use the menu mode, which is switched with the <Menu> key.
The menu consists of different type of screens, which include main menu, sub-menu, lists of options, lists of
parameters, text editor screens, information screens etc.
