10.3 CONFIGURING 1/1 AND 1/3 OCTAVE SPECTRA VIEWS
The Display section contains elements for
programming measurement result
presentation and display parameters.
The following positions are used for setting
views of 1/1-octave or 1/3-octave results:
Display Modes allowing to switch on the Spectrum view;
Display Scale allowing to adjust scales of a spectrum plot and toggle the grid;
Spectrum View allowing to select spectra to be viewed: instantaneous, averaged, maximum or minimum;
Spectrum Type allowing to change the spectrum type presented on the display: acceleration, velocity or
displacement. This position appears in the vibration modes.
10.3.1 Presentation of 1/1 and 1/3 octave spectra
Spectrum plot view
The Spectrum position in the Display Modes
list becomes available for the 1/1 Octave and
1/3 Octave functions and enables/disables
the spectrum plot view.
<ENT>

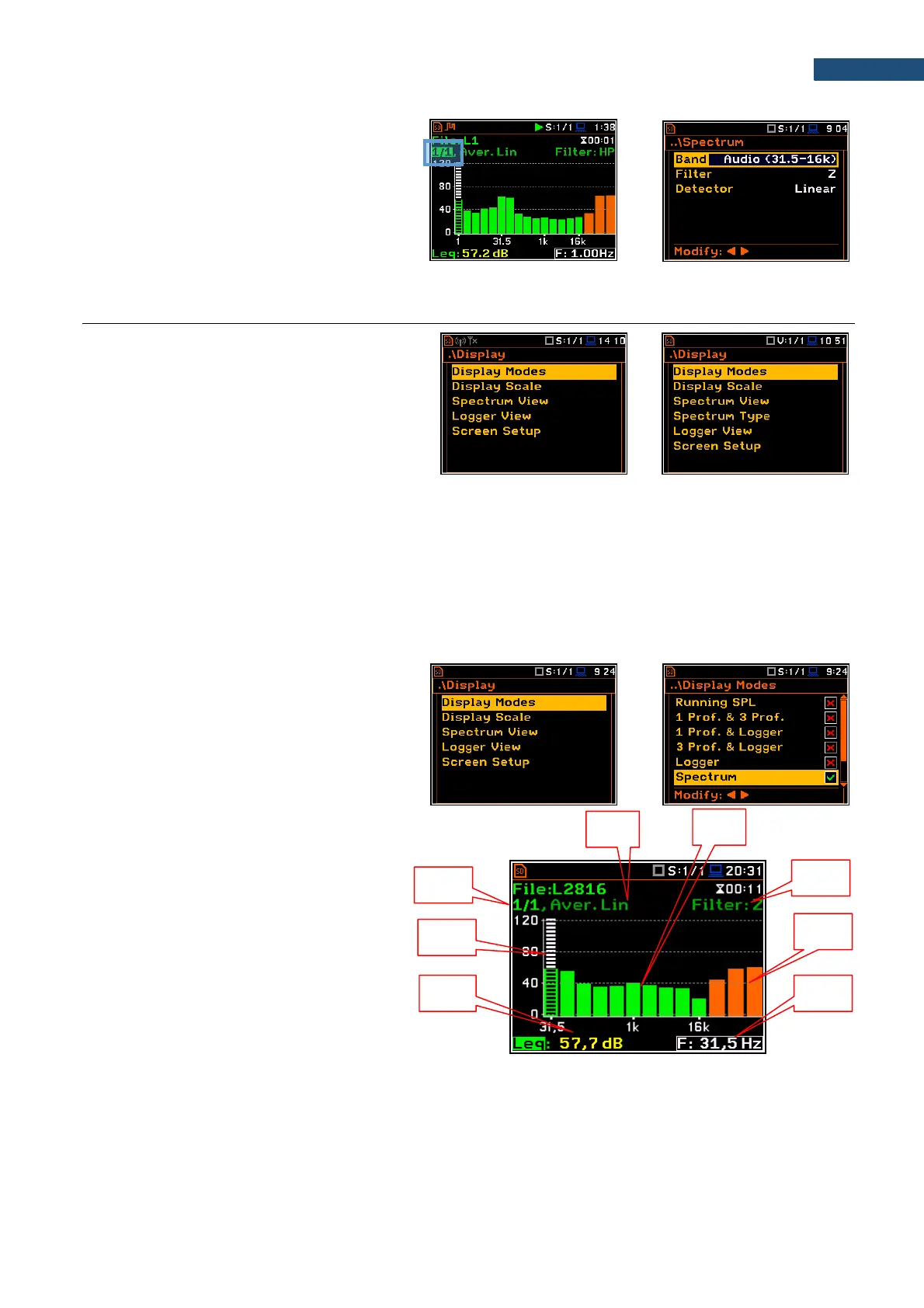

Spectrum view fields
1. Analyser function
2. Cursor position
3. Value of the cursor position
4. Averaging used
5. Spectrum plot
6. Frequency weighting filter
7. Total values
8. Central frequency for the cursor position
