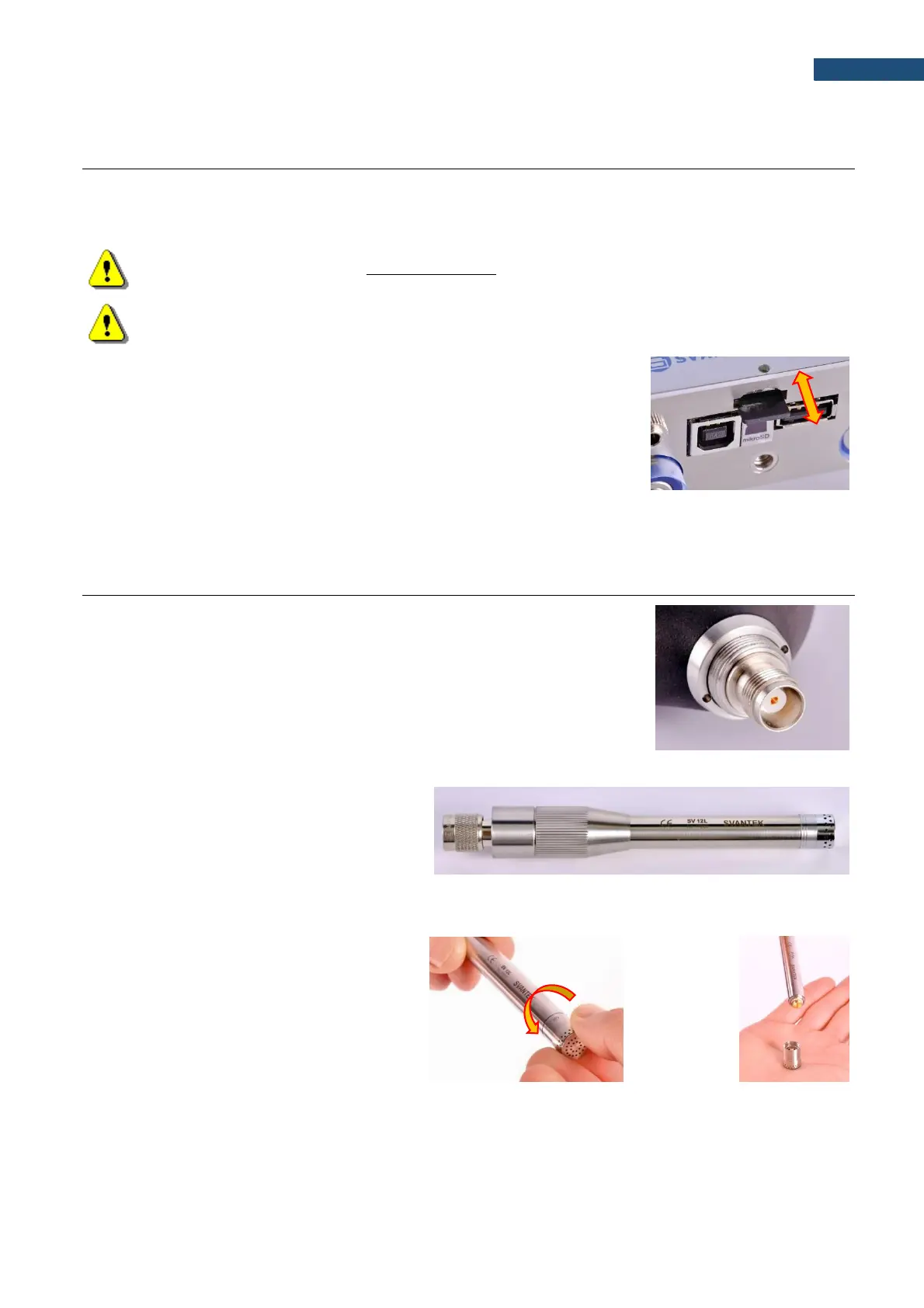

14.2 MEMORY CARD EXTRACTION AND INSERTION
SVAN 977A is delivered with 16 GB micro SD-card - Kingston Industrial (SDCIT/16GBSP).
You may exchange it with the high capacity card (up to 32GB), but before insertion the card must be formatted
as FAT32.
Note: The originally supplied Kingston Industrial memory card has been tested by SVANTEK and
cards of this type are strongly recommended for use when the original card is going to be replaced.
Note: If you would like to use card with higher capacity, call to the local distributer for confirmation.
To extract the memory card from the card-slot, switch off the instrument,
unscrew the coin-operated screw and take off the black bottom cover of the
instrument.
The card is installed in the slot. To extract the card, push on the card and then
pull it out of the slot.
While insertion the SD-card, a click sound indicates that the card is inserted properly. If necessary, use a tool
(e.g. pen) to push the card right in.
SVAN 977A is equipped with the TNC connector as an input of the measured
signal taken from the microphone preamplifier or the vibration transducer.
Microphone
The SVAN 977A set includes prepolarised ½”
microphone with nominal sensitivity 35 mV/Pa
(SV 7052E) and microphone preamplifier with
IEPE power supply (SV 12L).
The microphone is delivered in a special box,
and you must screw it onto the preamplifier
threads themselves.
When unscrewing the microphone, care must
be taken not to drop the microphone. To avoid
this, unscrew the microphone so that it ended
up in the user's palm.
