SVAN 977A User Manual - Appendixes

Directional characteristics of SVAN 977A

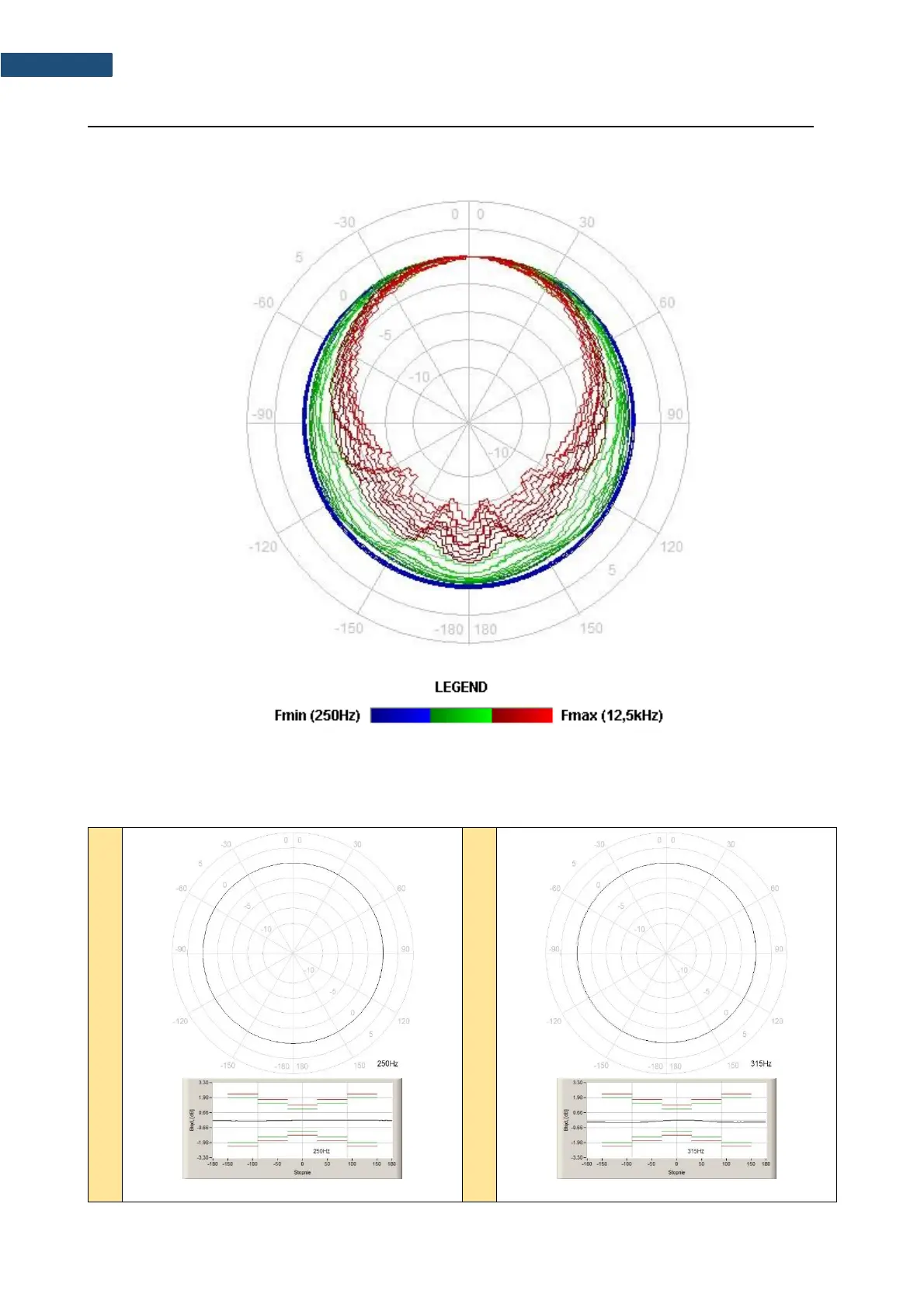

Directional response for SLM Class SVAN 977A with microphone ACO 7052E and preamplifier SV 12L for

specified frequencies:

The round charts show the directional characteristic and the charts below shows the errors for angles.

250 Hz

315 Hz
