SVAN 977A User Manual - Appendixes

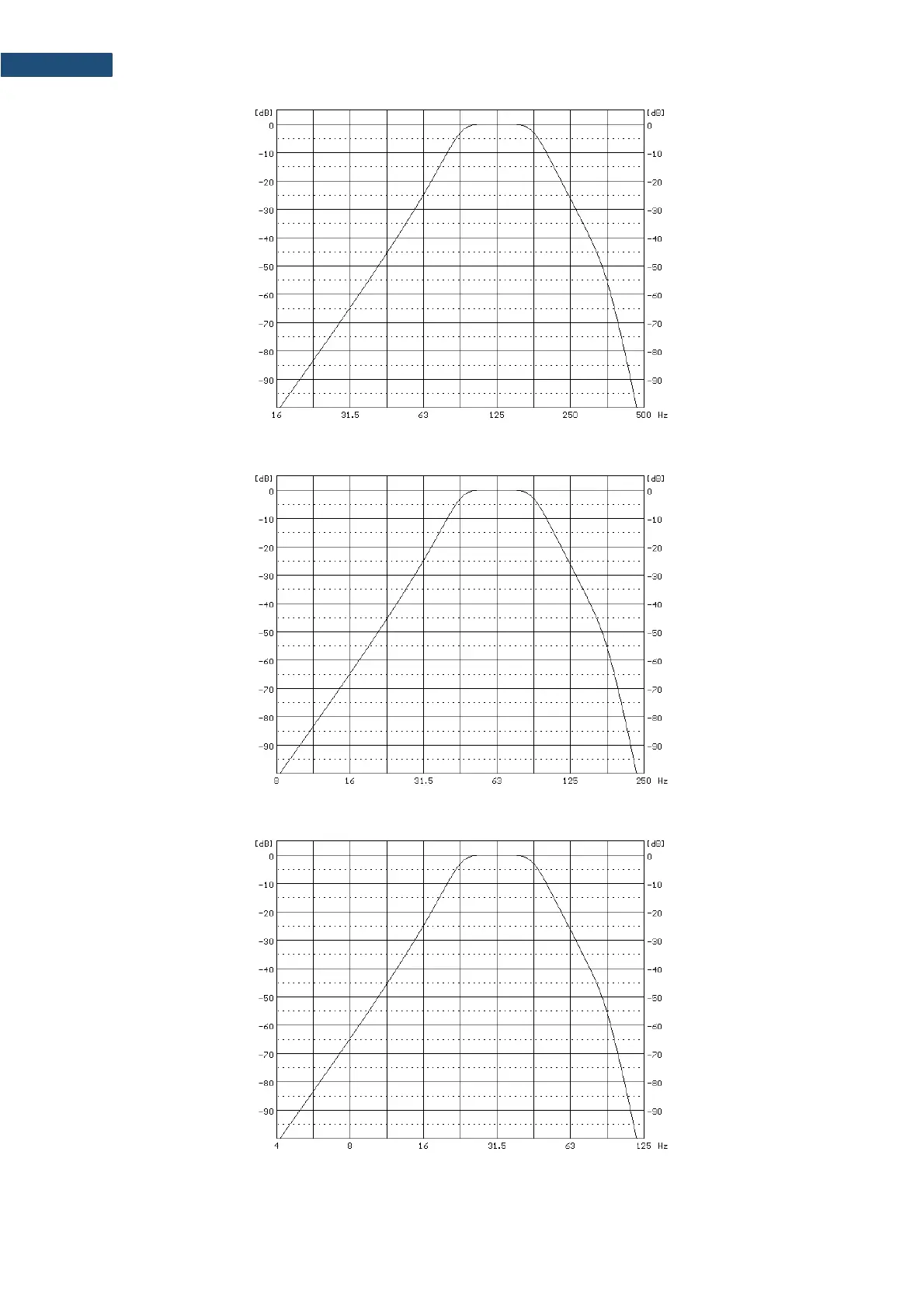

125 Hz 1/1 octave filter

63.0 Hz 1/1 octave filter

31.5 Hz 1/1 octave filter
