SVAN 977A User Manual - Appendixes

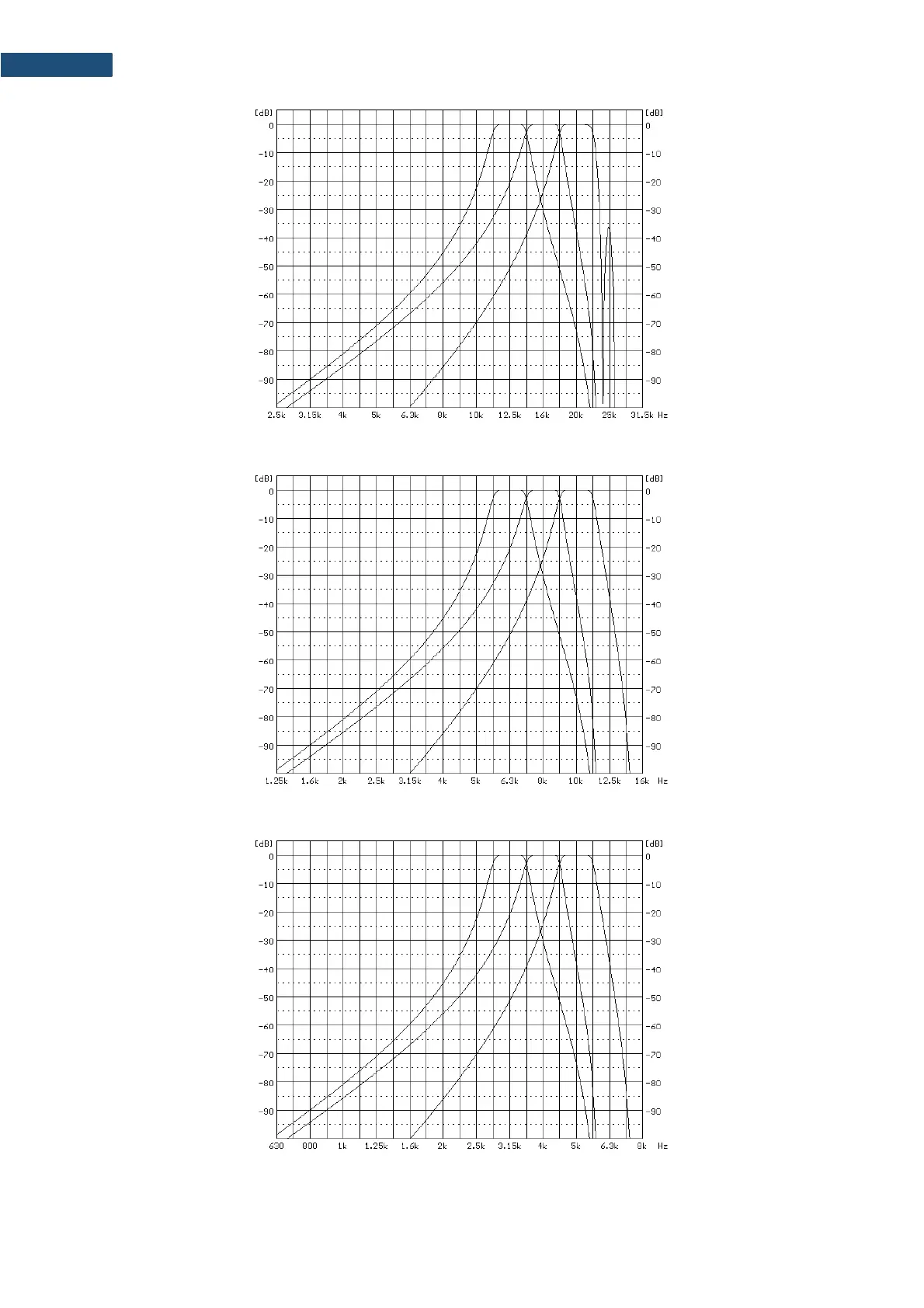

1/3 octave filters for 16.0 kHz 1/1 octave filter (Audio/Full band)

1/3 octave filters for 8.0 kHz 1/1 octave filter

1/3 octave filters for 4.0 kHz 1/1 octave filter
