SVAN 977A User Manual - Appendixes

“HP” filter is a High-Pass filter

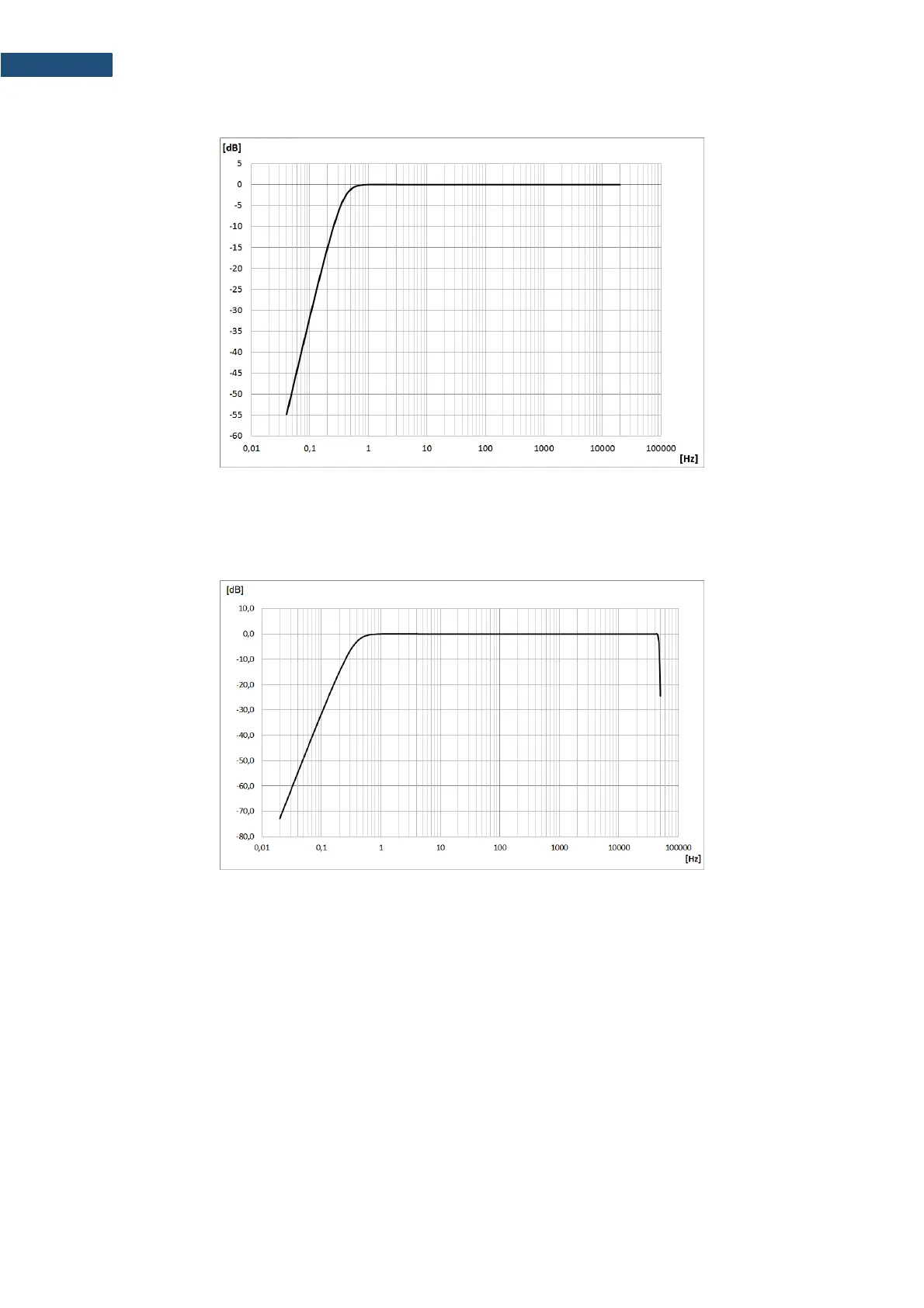

“HP” filter characteristics

“HPE” filter is a High-Pass filter for the Ultra frequency band

“HPE” filter characteristics
