29
SVAN 977A User Manual

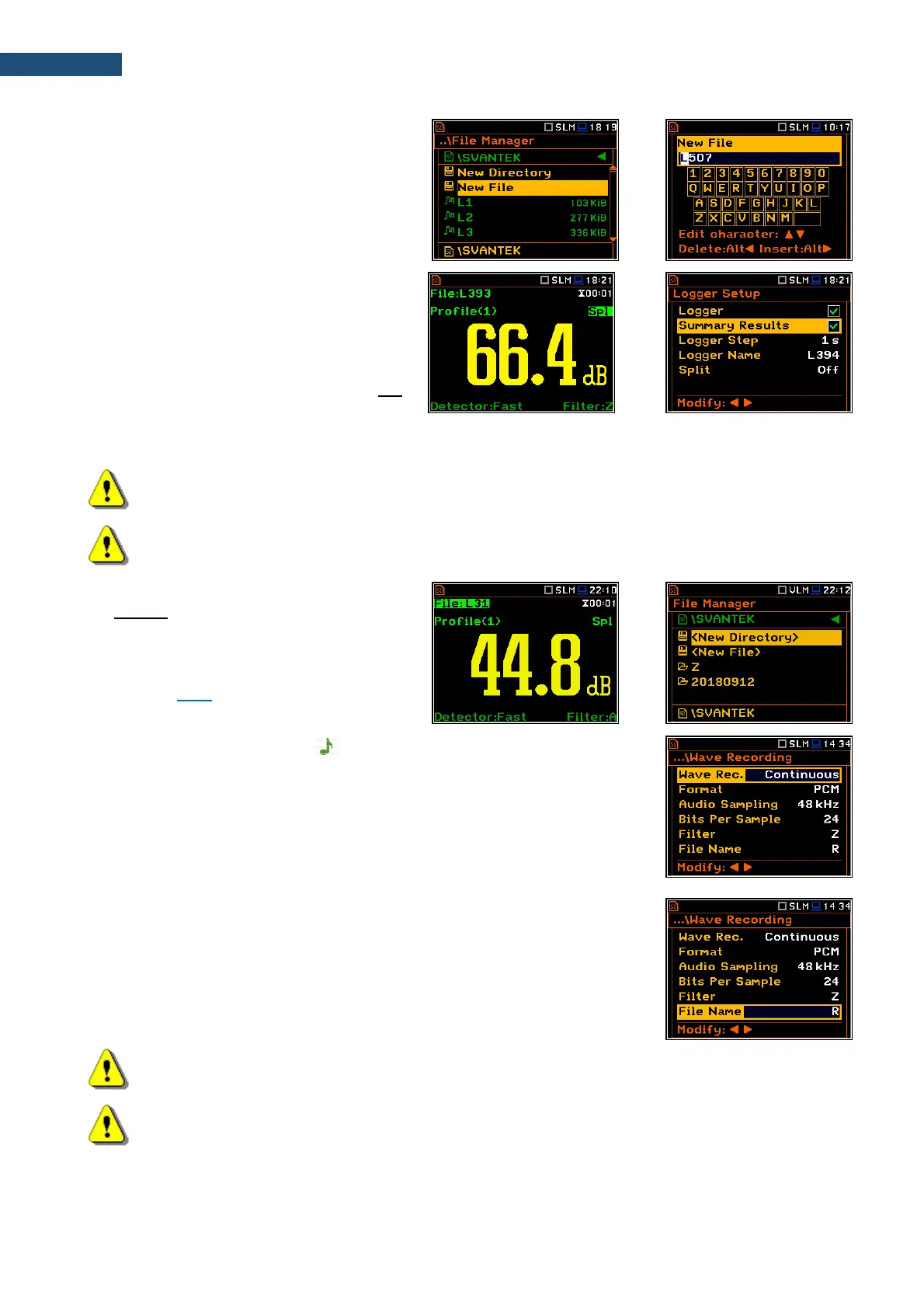

Another option is to open the File Manager
screen (path: <Menu> / File / File Manger),
select New File and press <ENTER>.
After edition of the automatically proposed
name, press <ENTER> to confirm.
<ENT>
If Logger and Summary Results are both
switched on in the Logger Setup list (path:
<Menu> / Measurement / Logging /
Logger Setup) the Logger results and
Summary results will be saved automatically
in the file with their steps. At the same time,
you can manually save only the last
Summary Results.
<Save>
For this, open the File Manager after the measurement stop, select New File and press <ENTER>. The
Summary results for the last cycle will be saved in the working directory.
Note: Manual saving is not possible when the instrument is measuring. If you attempt to save results,
the message “Measurement in progress!” will be displayed for about 3 seconds.
Note: When no measurements were performed and there are no results to save, all the save functions
are disabled.
You can jump from the measurement view to
the working directory in the File Manager. To
do this, make the field with file name active by
means of ▲ / ▼ key and press <ENTER>.
Here you can change the working directory –
see Chapter 7.1.1.
<ENT>
Automatic Wave files saving ( )
Wave files containing signal recording data are also saved automatically in the
SD Card memory with an extension .WAV. To enable automatic saving next
conditions should be fulfilled:
1. SD-card should be inserted and there should be enough space on it.
2. The wave recording should be switched on (path: <Menu> / Measurement
/ Logging / Wave Recording / Wave Rec.: Continuous or On Trigger).
The wave file name is defined automatically using the same rules as for the
logger files. The default prefix for the wave files is R.
Note: During the measurement run with recording of the time-domain signal to the wave file the
„wave” icon is displayed.
Note: The wave files usually are big in size and may use enormous memory space. Since the wave-
file name is not displayed on the result view screen, you should remember that wave recording
function is active and switch it off always when wave recording is not required.
