68
SVAN 977A User Manual

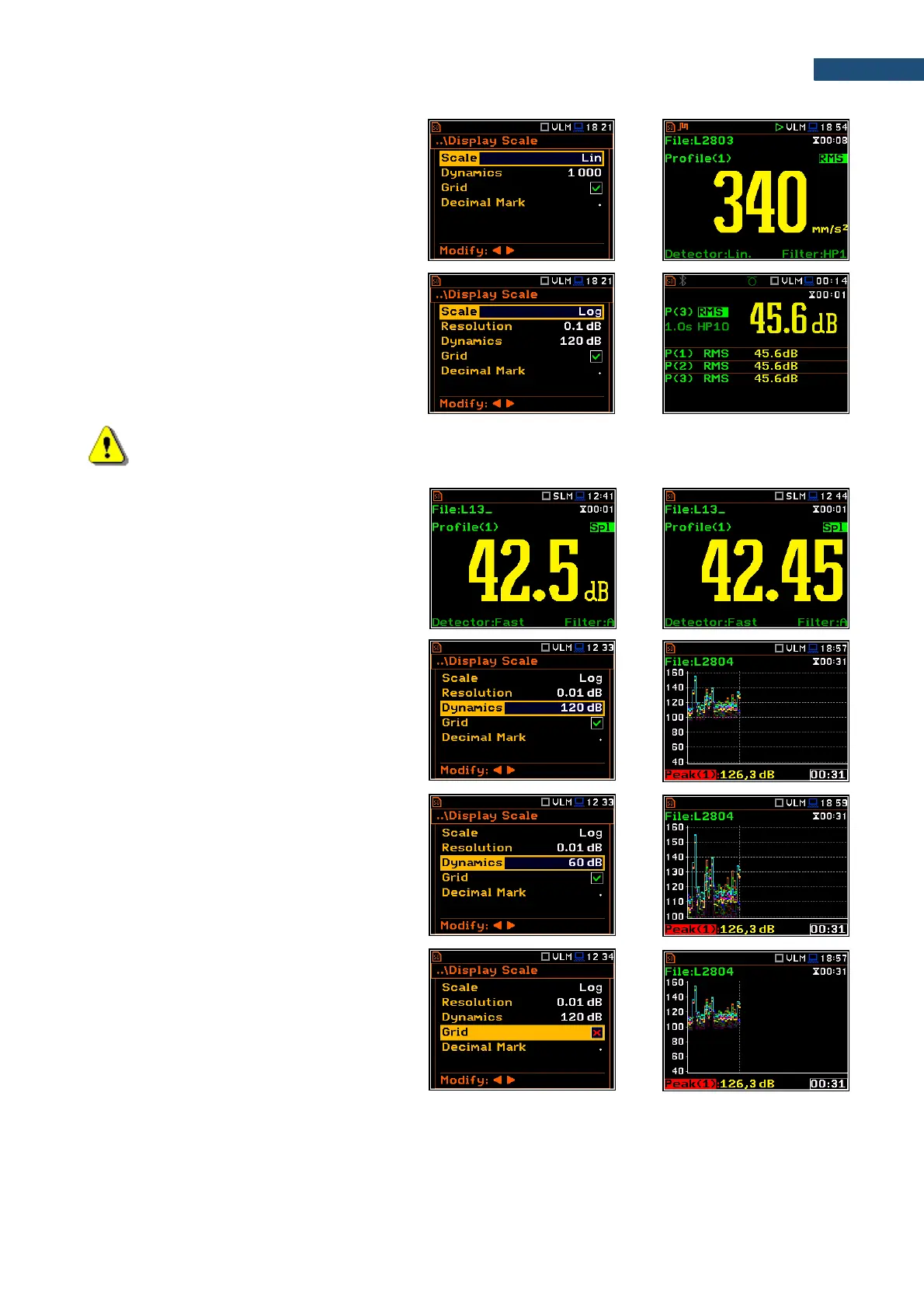

Scale of results presentation
The Scale parameter defines results units:
linear (Lin) or logarithmic (Log).
For sound measurements the Scale position
is not active. All results are always presented
in dB.
=>
In case of Log, the graphical presentation is
given in the logarithmic scale and the
measurement results are expressed in
decibels (results are calculated in relation to
the values specified in the Reference Levels
screen (path: <Menu> / Auxiliary Setup /
Reference Levels)).
=>
Note: In Vibration modes, parameters can be presented in Logarithmic (dB) or Linear (for example,
m/s
2
) units. It depends on the Scale parameter value. For example, 10 m/s
2
can be presented also
as 140 dB.
Resolution
The Resolution parameter defines the
number of digits after the decimal point in the
presented results: one digit after the decimal
point (0.1 dB) or two digits after the decimal
point (0.01 dB).
Scaling the vertical axis of the plot
The Dynamics parameter defines the
dynamic range of the plot Y-axis scale. It is
possible to select the range from the set:
10dB, 20dB, 40dB, 80dB, 100dB and 120dB.
=>
=>
Toggling the grid
The Grid position allows to toggle the
horizontal grid lines of the logger or spectrum
plot.
=>
