RemovingtheEngine(continued)
g230310

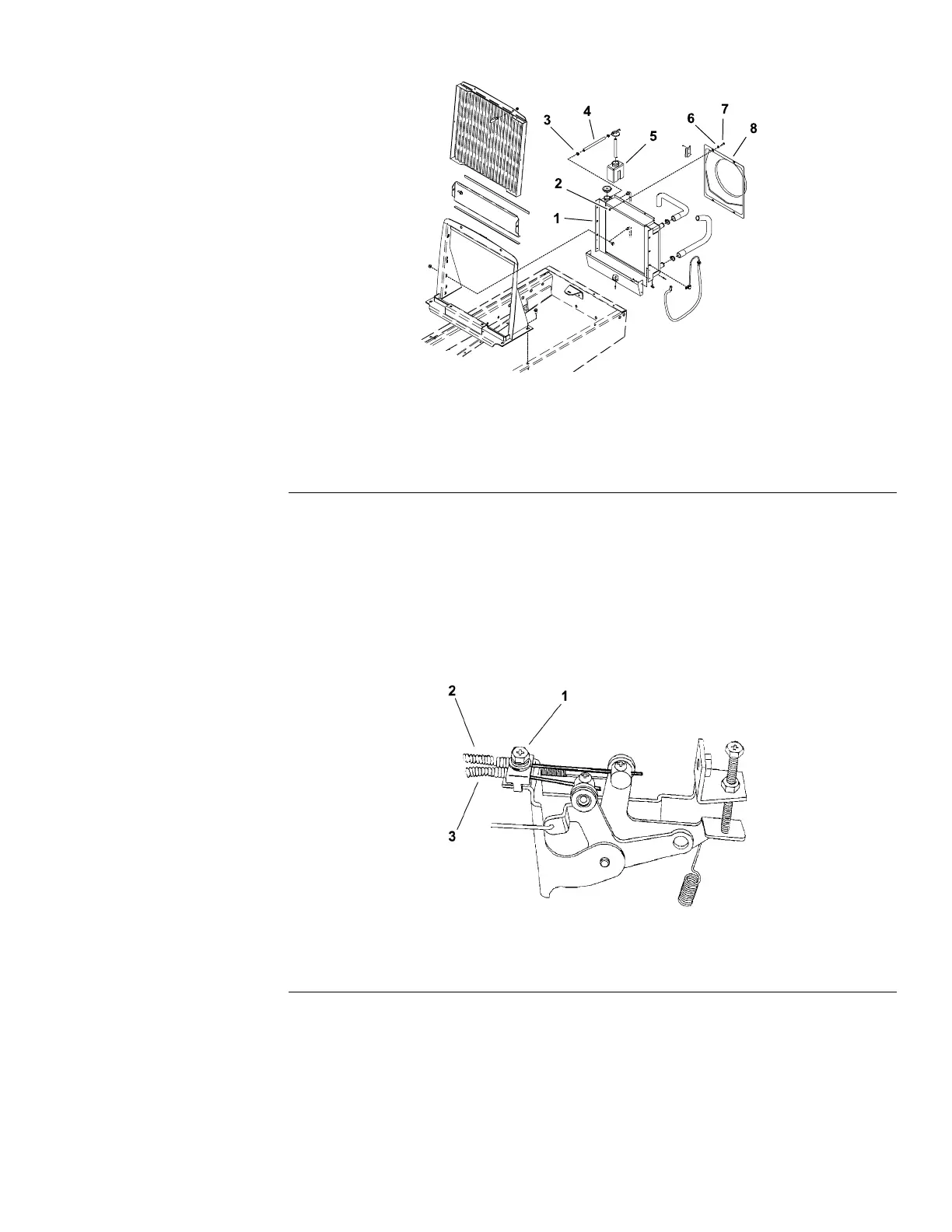

Figure17
1.Radiator
4.Overowhose
7.Bolt
2.Locknut
5.Coolantreservoir
8.Fanshroud
3.Hoseclamp6.Flatwasher
7.Loosenhoseclampandremoveoverowhosefromradiatorllopening
(Figure17).Removecoolantreservoirfrombracketonradiatorfanshroud.
8.Remove4bolts,4atwashers,and4locknutsthatsecurefanshroudto
radiator(Figure17).Positionfanshroudawayfromtheradiator.
9.RemovePTOshaftfrommachine;refertoRemovingthePTOShaft(page
9–8).
10.Removeaircleaner;refertoRemovingtheAirCleaner(page3–12).
g230311
Figure18
1.Cableclamp
2.Throttlecable
3.Chokecable
11.Loosenscrewthatsecurescableclamptogovernorbracket(Figure18).
Removethrottleandchokecablesfromgovernorlevers.Positioncables
awayfromtheengine.
Groundsmaster
®
3280-D/3320
Page3–17
GasolineEngine:ServiceandRepairs
05138SLRevB
