Main Menu Mode
The keypad provides access to the main menu mode.
Select the Main Menu mode by pressing the [Main
Menu] key. Illustration 6.2 shows the resulting read-
out, which appears on the display of the
GLCPkeypad.
Lines 2 through 5 on the display show a list of pa-
rameter groups which can be chosen by toggling the
up and down buttons.

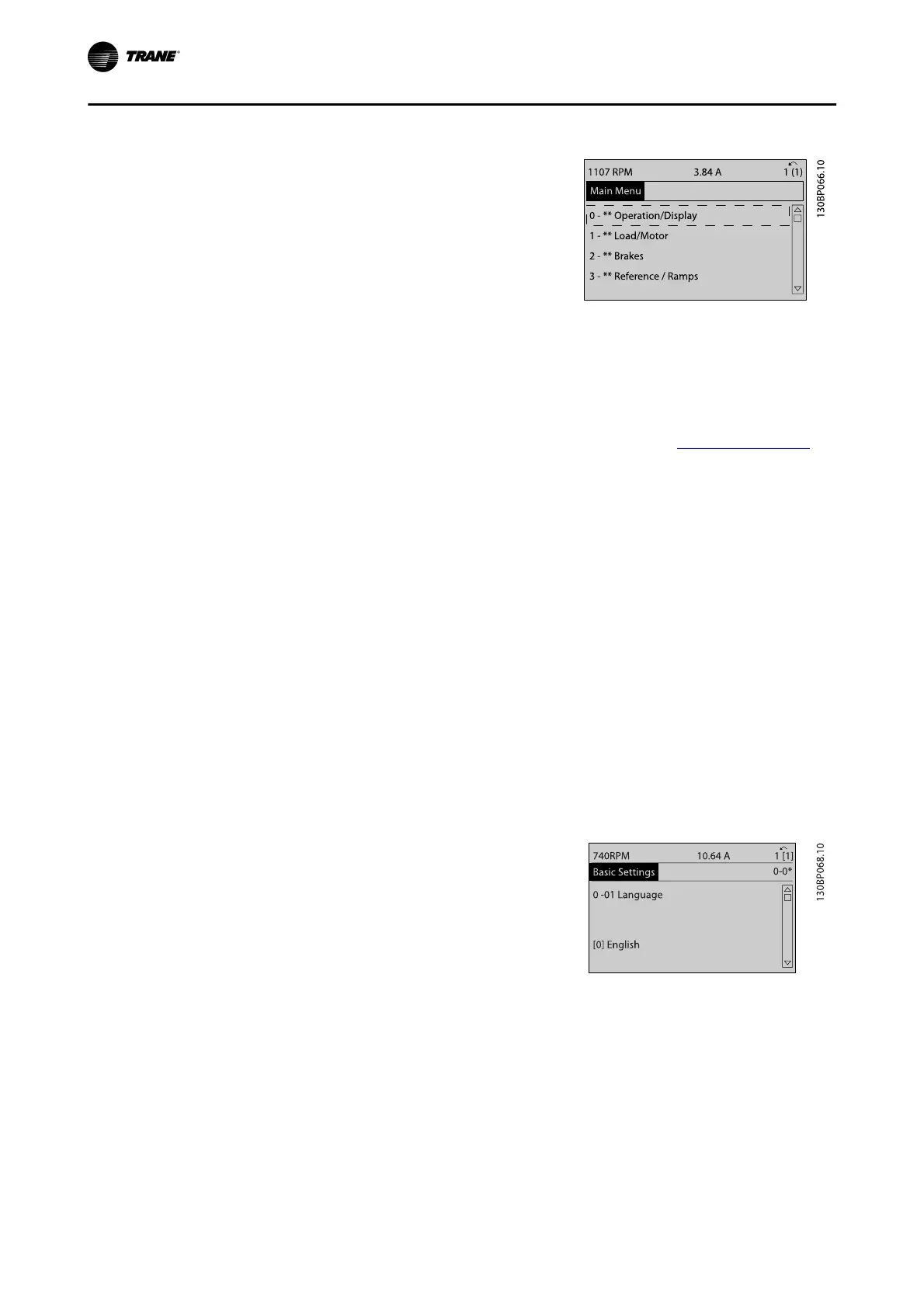

Figure 6. 9: Display example.
Each parameter has a name and number which remain the same regardless of the programming mode. In the
Main Menu mode, the parameters are divided into groups. The first digit of the parameter number (from the
left) indicates the parameter group number.
All parameters can be changed in the Main Menu. The configuration of the unit (par. 1-00
Configuration Mode)
will determine other parameters available for programming. For example, selecting Closed Loop enables addi-
tional parameters related to closed loop operation. Option cards added to the unit enable additional parameters
associated with the option device.
Changing Data
1. Press [Quick Menu] or [Main Menu] key.
2.
Use [
▲
] and [
▼
] keys keys to find parameter group to edit.
3. Press [OK] key.
4.
Use [
▲
] and [
▼
] keys to find parameter to edit.
5. Press [OK] key.
6.
Use [
▲
] and [
▼
] keys to select correct parameter setting. Or, to move to digits within a number, use keys.
Cursor indicates digit selected to change. [
▲
] key increases the value, [
▼
] key decreases the value.
7. Press [Cancel] key to disregard change, or press [OK] key to accept change and enter new setting.
Changing a Text Value
If the selected parameter is a text value, change the
text value by means of the up/down navigation keys.
The up key increases the value, and the down key de-
creases the value. Place the cursor on the value to be
saved and press [OK].
Figure 6. 10: Display example.
