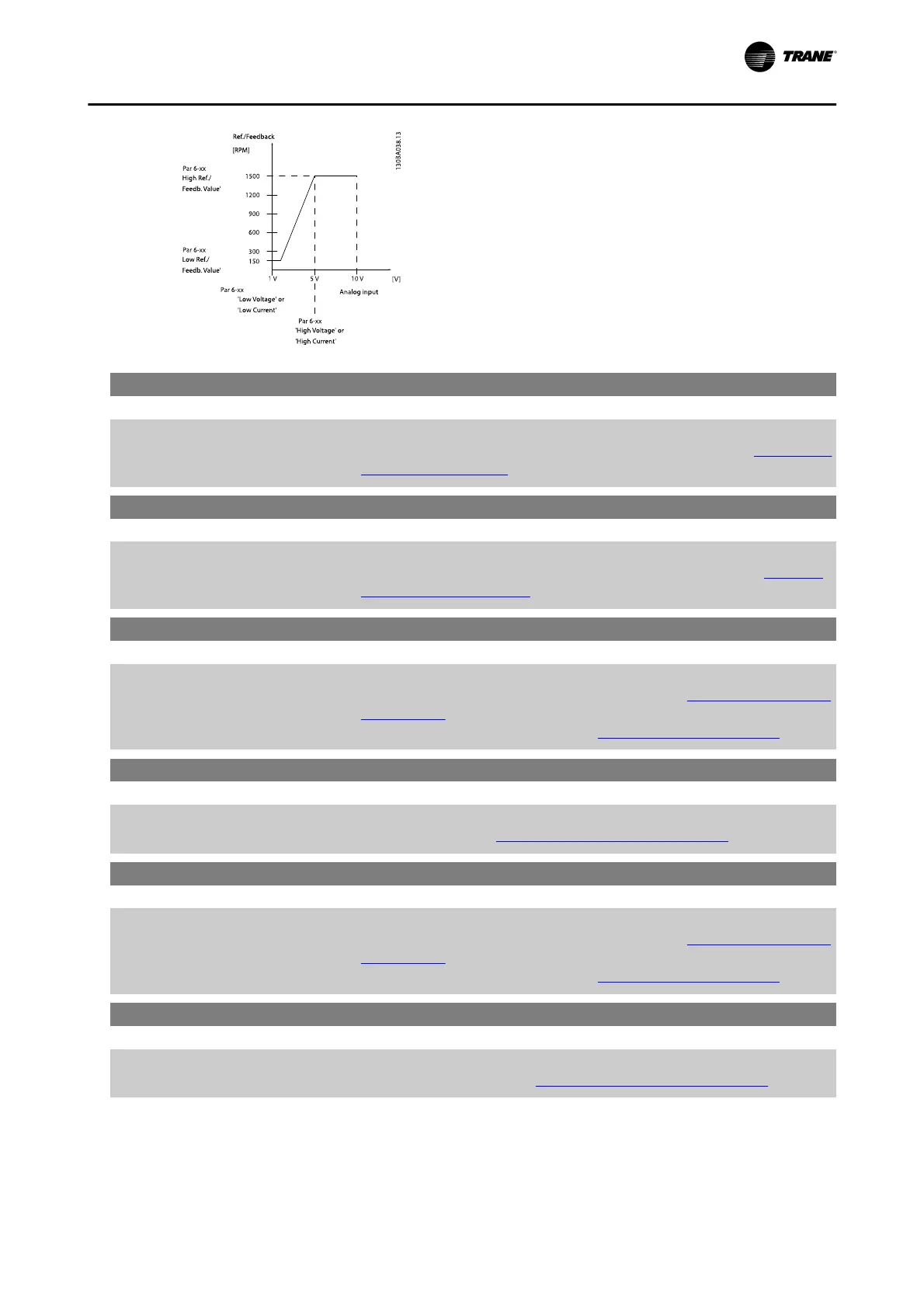

6-10 Terminal 53 Low Voltage
Range: Function:
0.07 V* [Application dependant] Enter the low voltage value. This analog input scaling value should cor-
respond to the low reference/feedback value set in par. 6-14
Terminal 53
Low Ref./Feedb. Value.
6-11 Terminal 53 High Voltage
Range: Function:
10.00 V* [Application dependant] Enter the high voltage value. This analog input scaling value should cor-
respond to the high reference/feedback value set in par. 6-15
Terminal
53 High Ref./Feedb. Value.
6-12 Terminal 53 Low Current
Range: Function:
4.00
mA*
[Application dependant] Enter the low current value. This reference signal should correspond to
the low reference/feedback value, set in par. 6-14
Terminal 53 Low Ref./
Feedb. Value. The value must be set at >2 mA in order to activate the Live
Zero Time-out Function in par. 6-01
Live Zero Timeout Function.
6-13 Terminal 53 High Current
Range: Function:
20.00
mA*
[Application dependant] Enter the high current value corresponding to the high reference/feed-
back set in par. 6-15
Terminal 53 High Ref./Feedb. Value.
6-22 Terminal 54 Low Current
Range: Function:
4.00
mA*
[Application dependant] Enter the low current value. This reference signal should correspond to
the low reference/feedback value, set in par. 6-24
Terminal 54 Low Ref./
Feedb. Value. The value must be set at >2 mA in order to activate the Live
Zero Time-out Function in par. 6-01
Live Zero Timeout Function.
6-23 Terminal 54 High Current
Range: Function:
20.00
mA*
[Application dependant] Enter the high current value corresponding to the high reference/feed-
back value set in par. 6-25
Terminal 54 High Ref./Feedb. Value.
