Mains Connection for A2 and A3

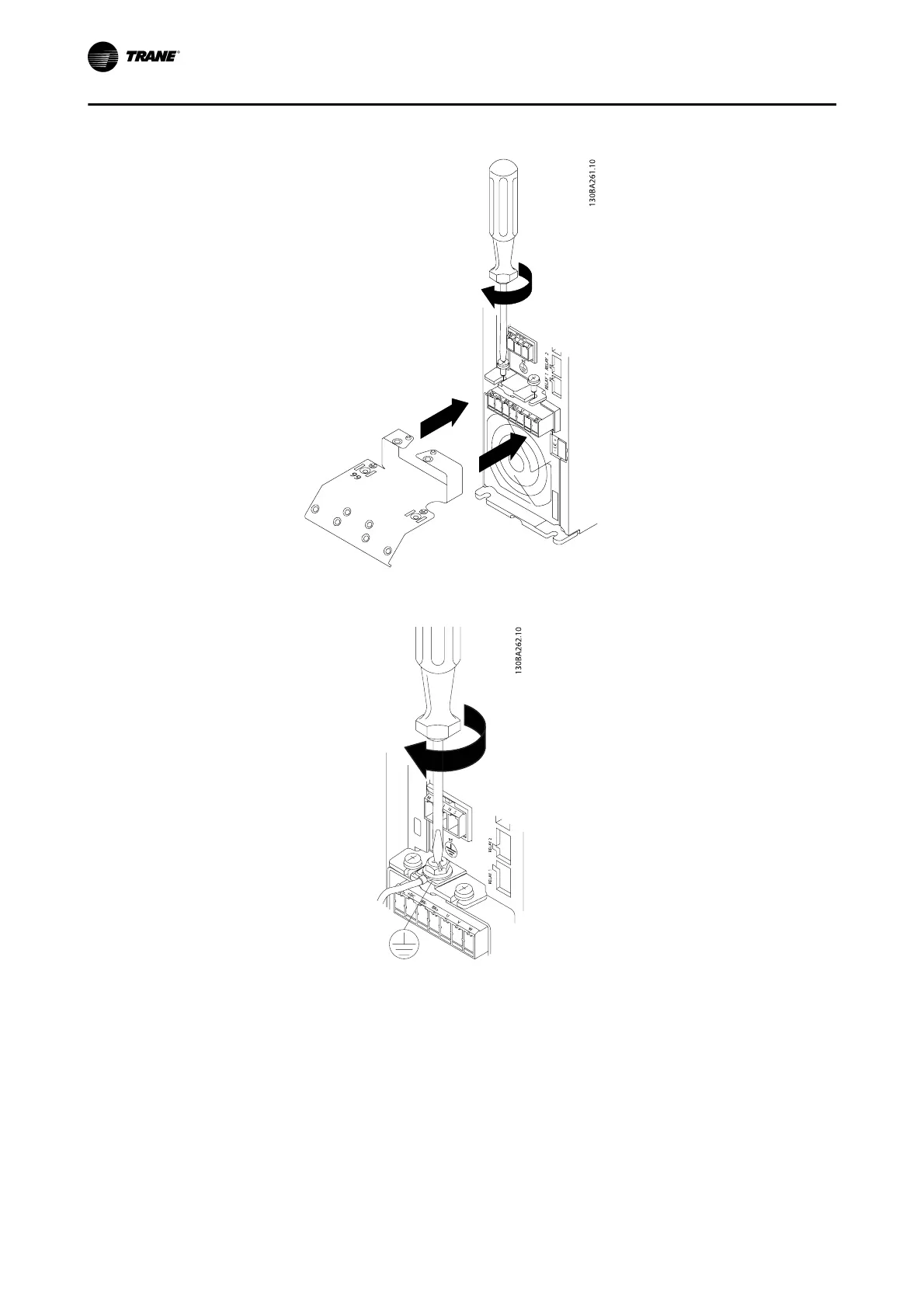

Figure 4. 9: First mount the two screws on the mounting plate, slide it into place and tighten fully.
Figure 4. 10: When mounting cables, first mount and tighten earth cable.
The earth connection cable cross section must be at least 10 mm
2
or 2 rated mains wires terminated separately ac-
cording to
EN 50178/IEC 61800-5-1
.
Failure to comply can result in high voltages on the chassis, which could result in death or serious injury, due to elec-
trocution.
