Trane TR200 - Switches S201, S202, and S801

Switches S201, S202, and S801
Switches S201 (Al 53) and S202 (Al 54) are used to
select a current (0-20 mA) or a voltage (0 to 10 V) con-
figuration of the analog input terminals 53 and 54 re-
spectively.
Switch S801 (BUS TER.) can be used to enable termi-
nation on the RS-485 port (terminals 68 and 69).
Please note that the switches may be covered by an
option, if fitted.
Default setting:
S201 (AI 53) = OFF (voltage input)
S202 (AI 54) = OFF (voltage input)
S801 (Bus termination) = OFF
130BT310.10

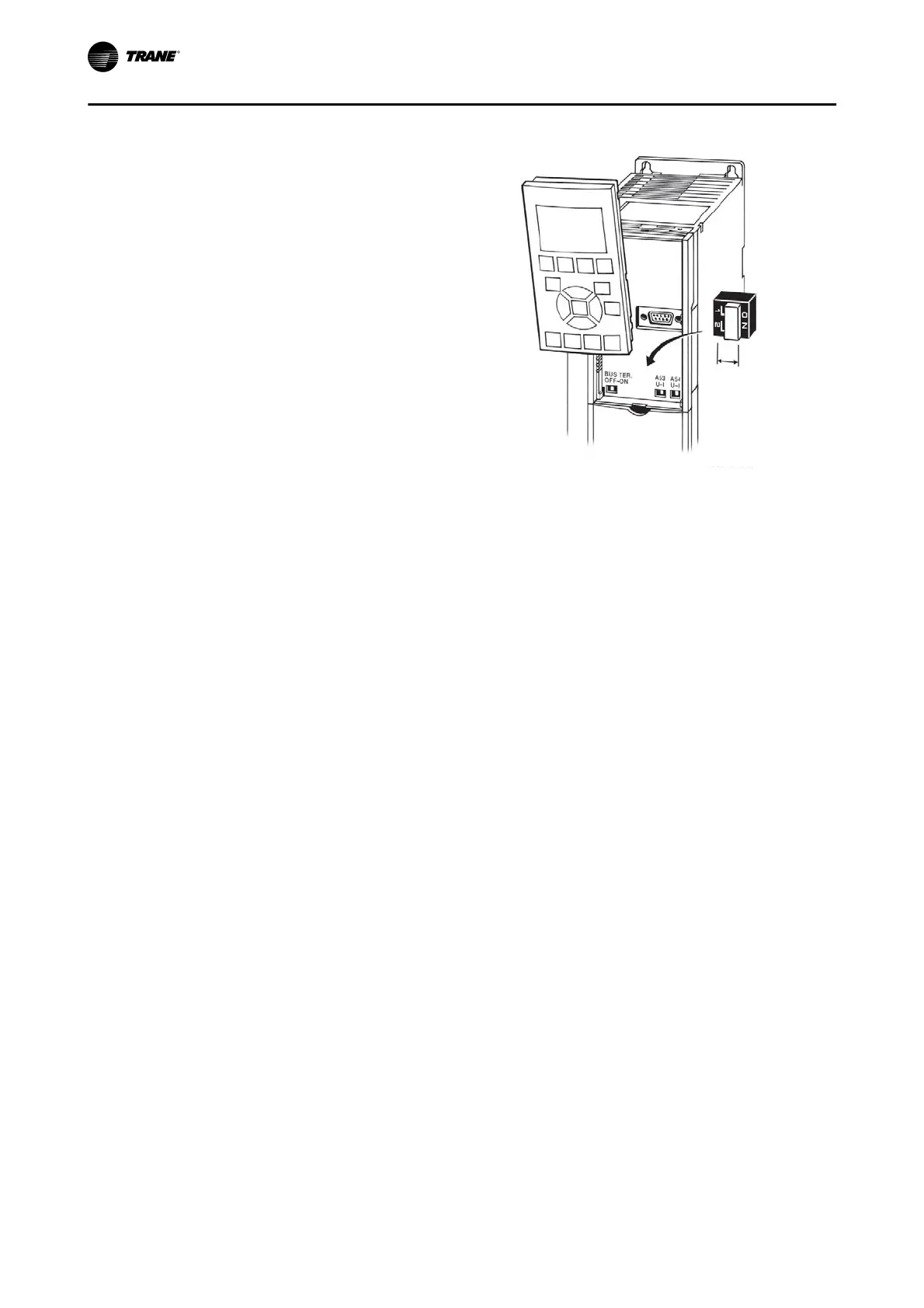

Figure 4. 52: Switches location.
Electrical Installation
4-36 BAS-SVX19C-EN
