Trane TR200 - Relay Output

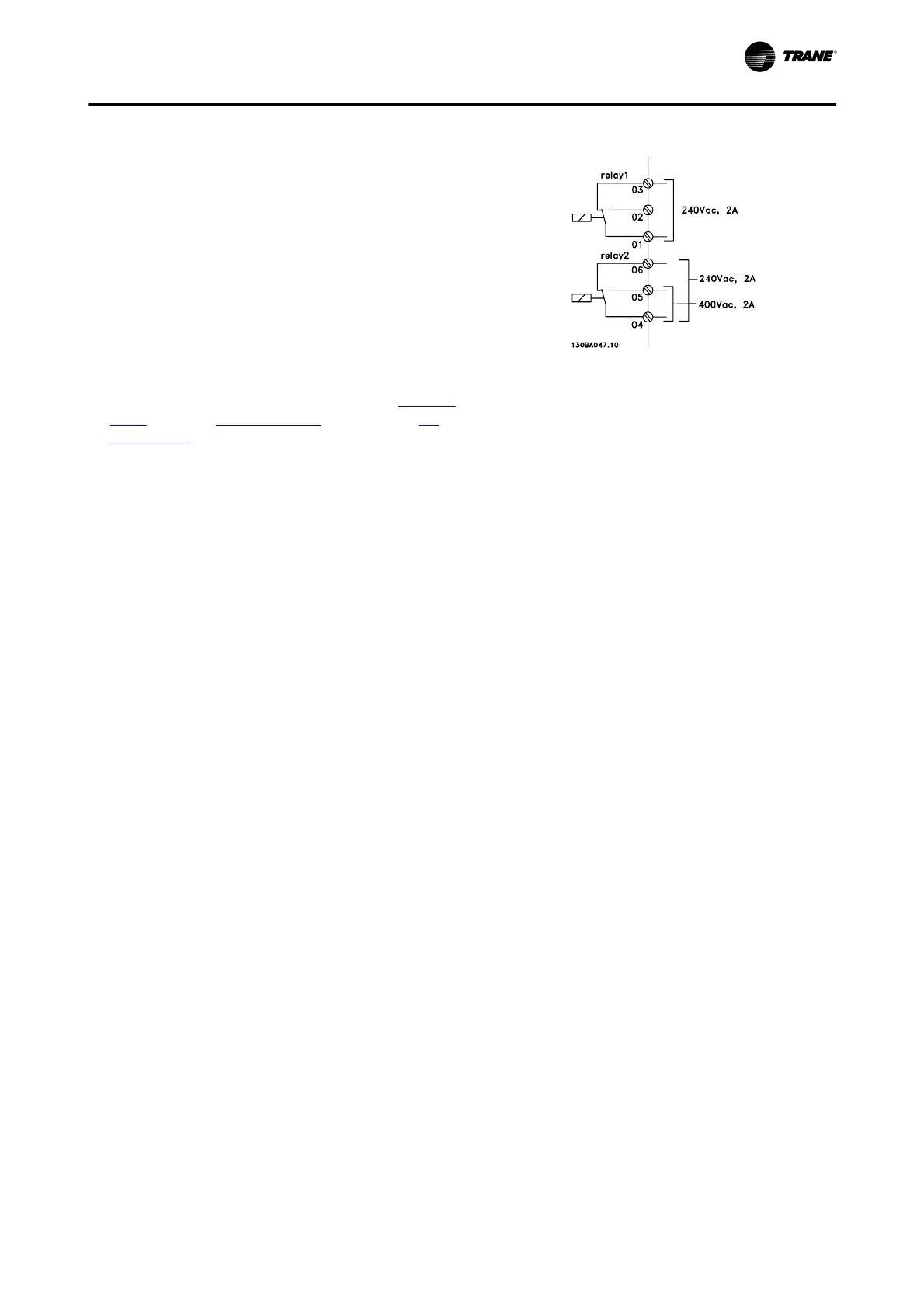

Relay Output
Relay 1
• Terminal 01: common
• Terminal 02: normal open 240 V AC
• Terminal 03: normal closed 240 V AC
Relay 2
• Terminal 04: common
• Terminal 05: normal open 400 V AC
• Terminal 06: normal closed 240 V AC
Relay 1 and relay 2 are programd in par. 5-40
Function
Relay, par. 5-41 On Delay, Relay, and par. 5-42 Off
Delay, Relay.
Additional relay outputs by using option module
MCB 105.
Electrical Installation
BAS-SVX19C-EN 4-31
