Mains Connection for B1, B2 and B3

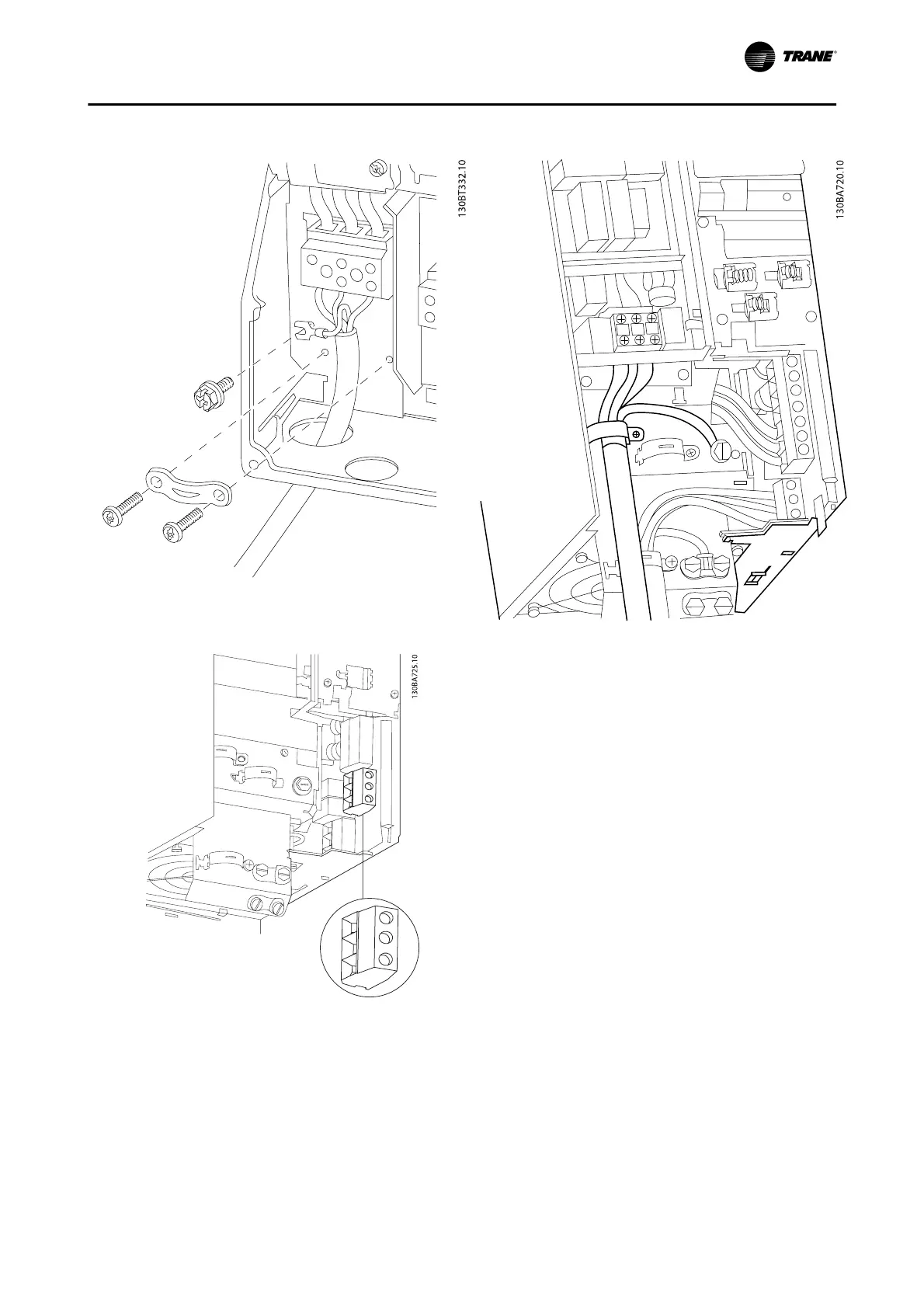

Figure 4. 15: How to connect to mains and earthing
for B1 and B2
Figure 4. 16: How to connect to mains and earthing
for B3 without RFI.
Figure 4. 17: How to connect to mains and earthing
for B3 with RFI.
NOTE: For correct cable dimensions please see the section
General Specifications
at the back of this manual.
Electrical Installation
BAS-SVX19C-EN 4-15
