Trane TR200 - Motor Connection for A4;A5; Motor Connection for B1 and B2

Motor Connection for A4/A5

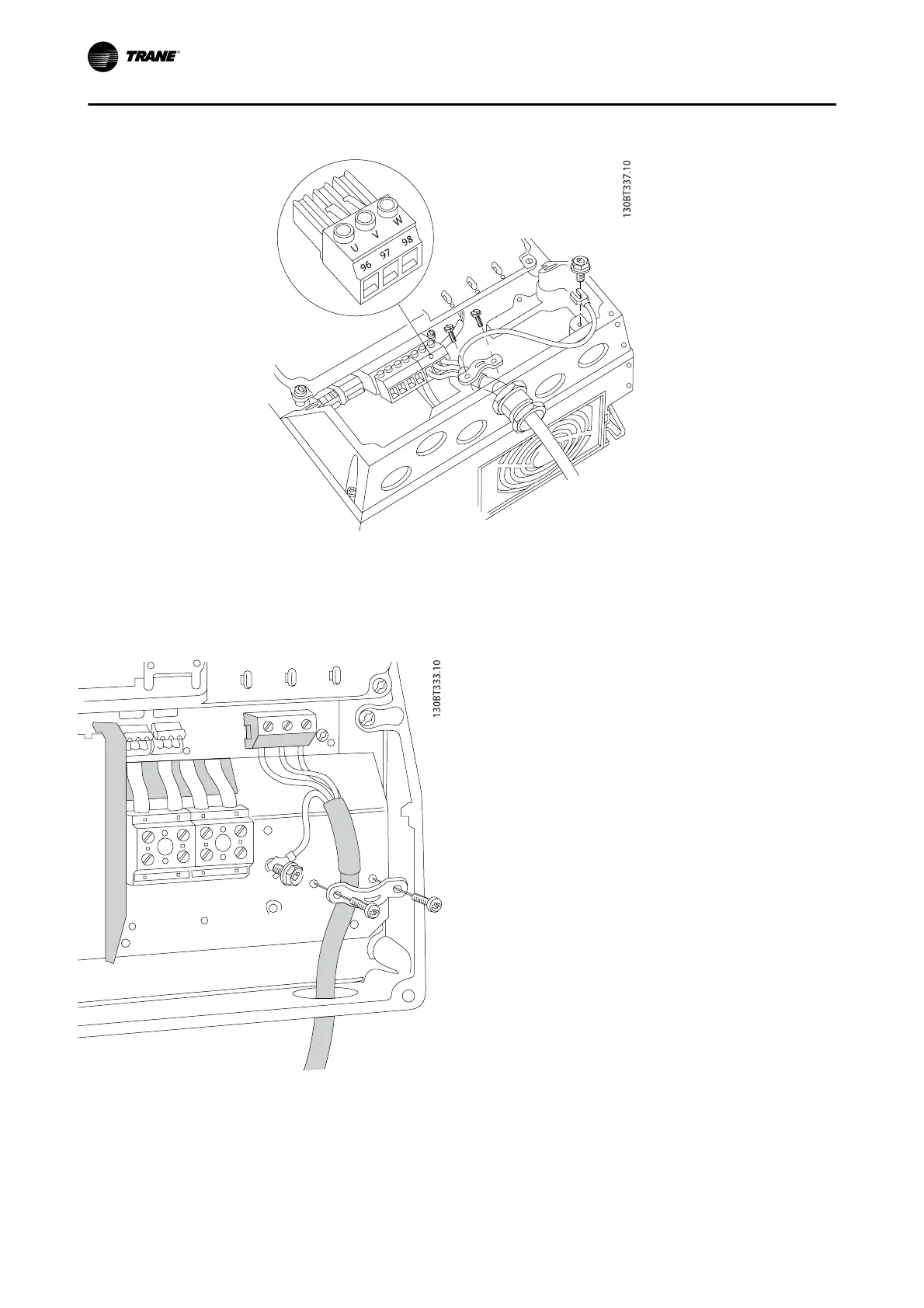

Figure 4. 25: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten. Please
ensure that the outer insulation of the motor cable is removed under the EMC clamp.
Motor Connection for B1 and B2
First terminate the motor earth, then Place motor U,
V and W wires in terminal and tighten. Please ensure
that the outer insulation of the motor cable is re-
moved under the EMC clamp.
