Changing a Group of Numeric Data Values
If the chosen parameter represents a numeric data
value, change the chosen data value by means of the
[◄] and [►] navigation keys as well as the up/down
[
▲
] [
▼
] navigation keys. Use the ◄] and [►] navigation
keys to move the cursor horizontally.

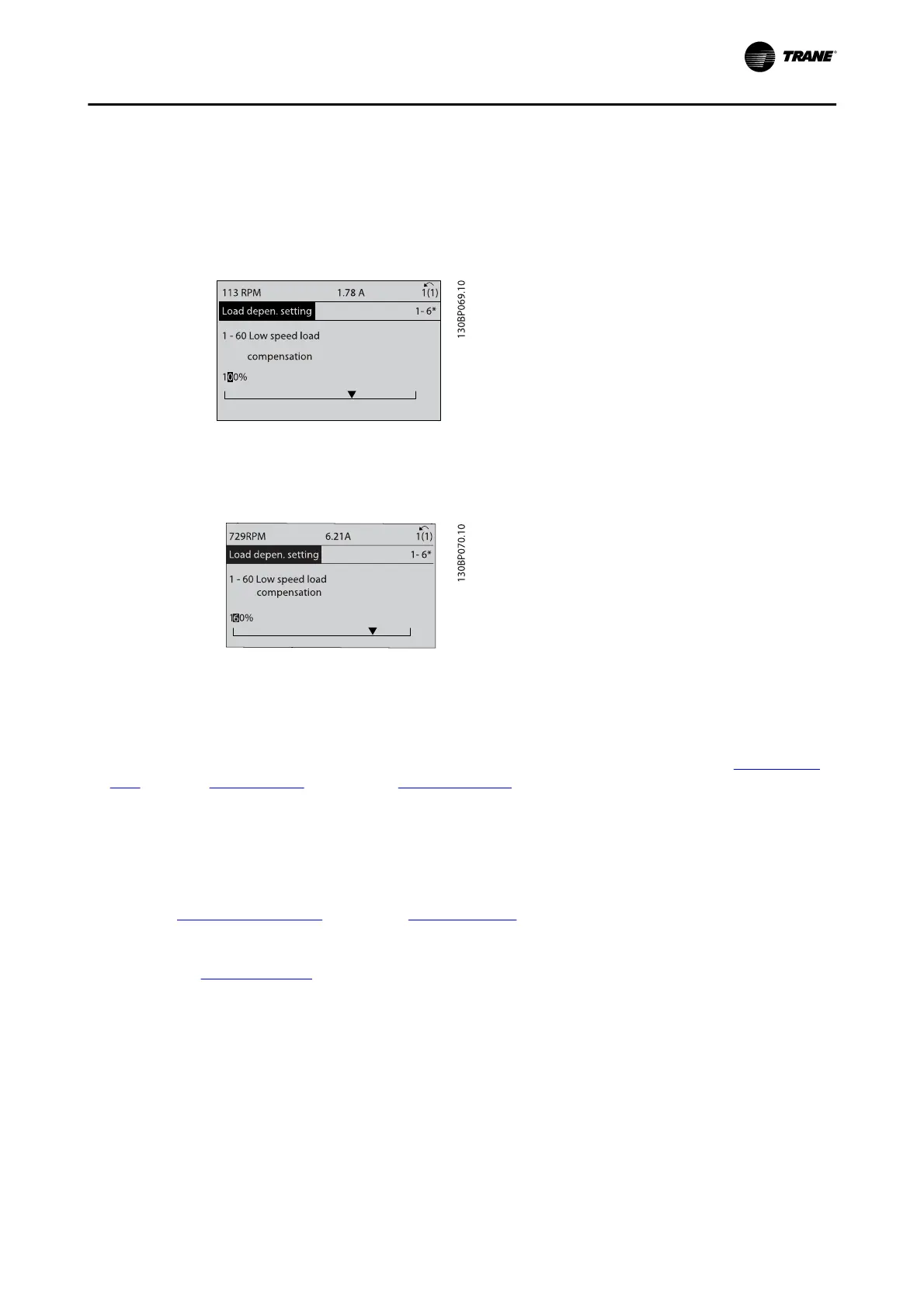

Figure 6. 12: Display example.
Use the up/down navigation keys to change the data value. The up key enlarges the data value, and the down
key reduces the data value. Place the cursor on the value to be saved and press [OK].
Figure 6. 13: Display example.
Changing of Data Value, Step-by-Step
Certain parameters can be changed step by step or infinitely variably. This applies to par. 1-20 Motor Power
[kW], par. 1-22 Motor Voltage and par. 1-23 Motor Frequency.
The parameters are changed both as a group of numeric data values and as numeric data values infinitely
variably.
Read-out and Programming of Indexed Parameters
Parameters are indexed when placed in a rolling stack.
Par. 15-30
Alarm Log: Error Code to par. 15-32 Alarm Log: Time contain a fault log which can be read out. Choose
a parameter, press [OK], and use the up/down navigation keys to scroll through the value log.
Use par. 3-10
Preset Reference as another example:
Choose the parameter, press [OK], and use the up/down navigation keys keys to scroll through the indexed
values. To change the parameter value, select the indexed value and press [OK]. Change the value by using the
up/down keys. Press [OK] to accept the new setting. Press [Cancel] to abort. Press [Back] to leave the parameter.
How to program the Frequency Converter
BAS-SVX19C-EN 6-61
