How to Operate the Frequency Converter
Two Ways of Operating
The frequency converter can be operated in two ways:
1. Graphical keypad, see 5.1.2
2. RS-485 serial communication or USB, both for PC connection, see 5.1.4
If the frequency converter is fitted with fieldbus option, please refer to relevant documentation.
How to operate graphical keypad

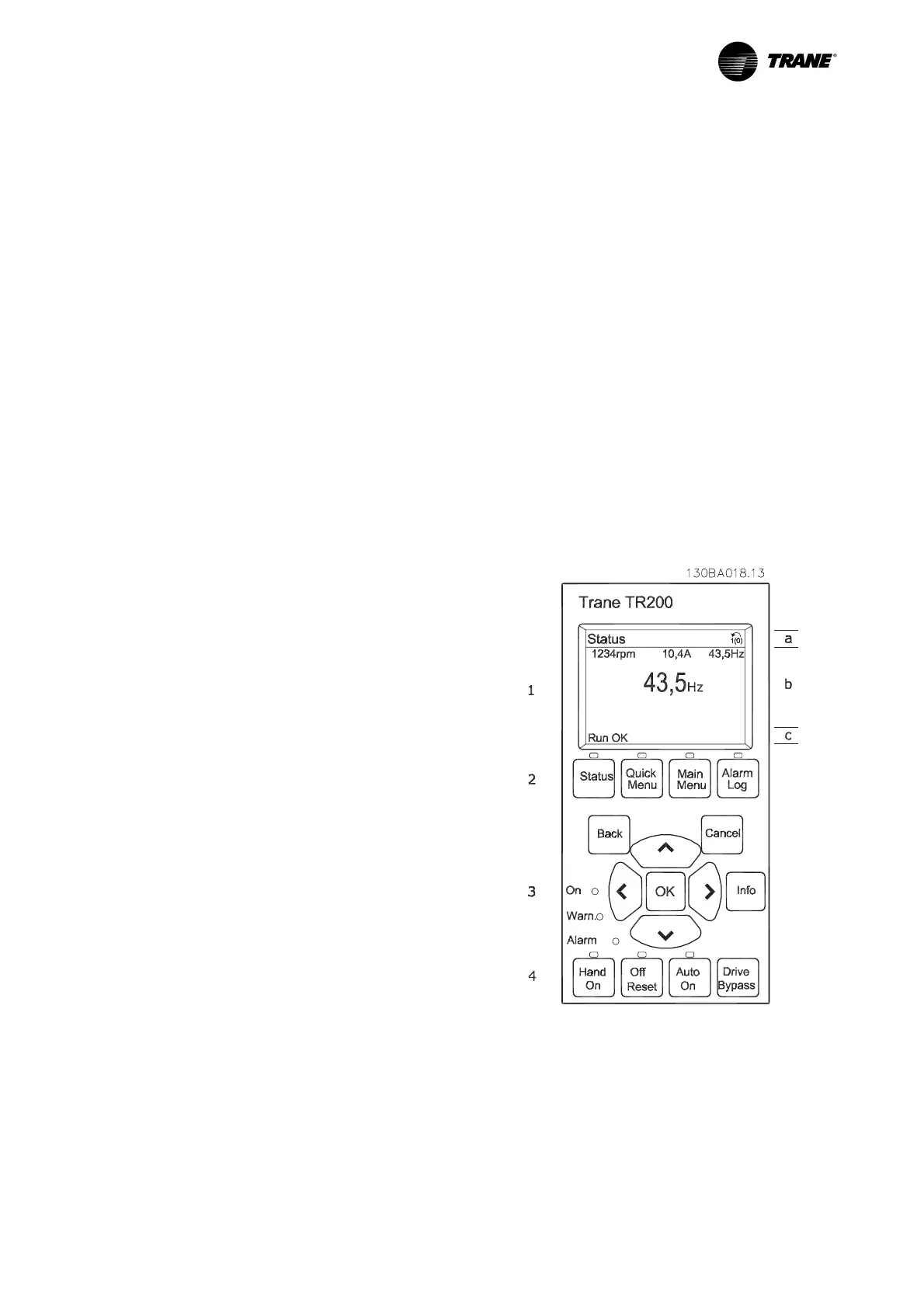

The keypad is divided into four functional groups:
1. Graphical display with Status lines.
2. Menu keys and indicator lights (LED's) - selecting mode, changing parameters and switching between dis-
play functions.
3. Navigation keys and indicator lights (LEDs).
4. Operation keys and indicator lights (LEDs).
Graphical display:
The LCD-display is back-lit with a total of 6 alpha-numeric lines. All data is displayed on the keypad which can
show up to five operating variables while in [Status] mode.
Display lines:
a. Status line: Status messages displaying icons
and graphics.
b. Line 1-2: Operator data lines displaying data and
variables defined or chosen by the user. By
pressing the [Status] key, up to one extra line can
be added.
c. Status line: Status messages displaying text.
BAS-SVX19C-EN 5-1
