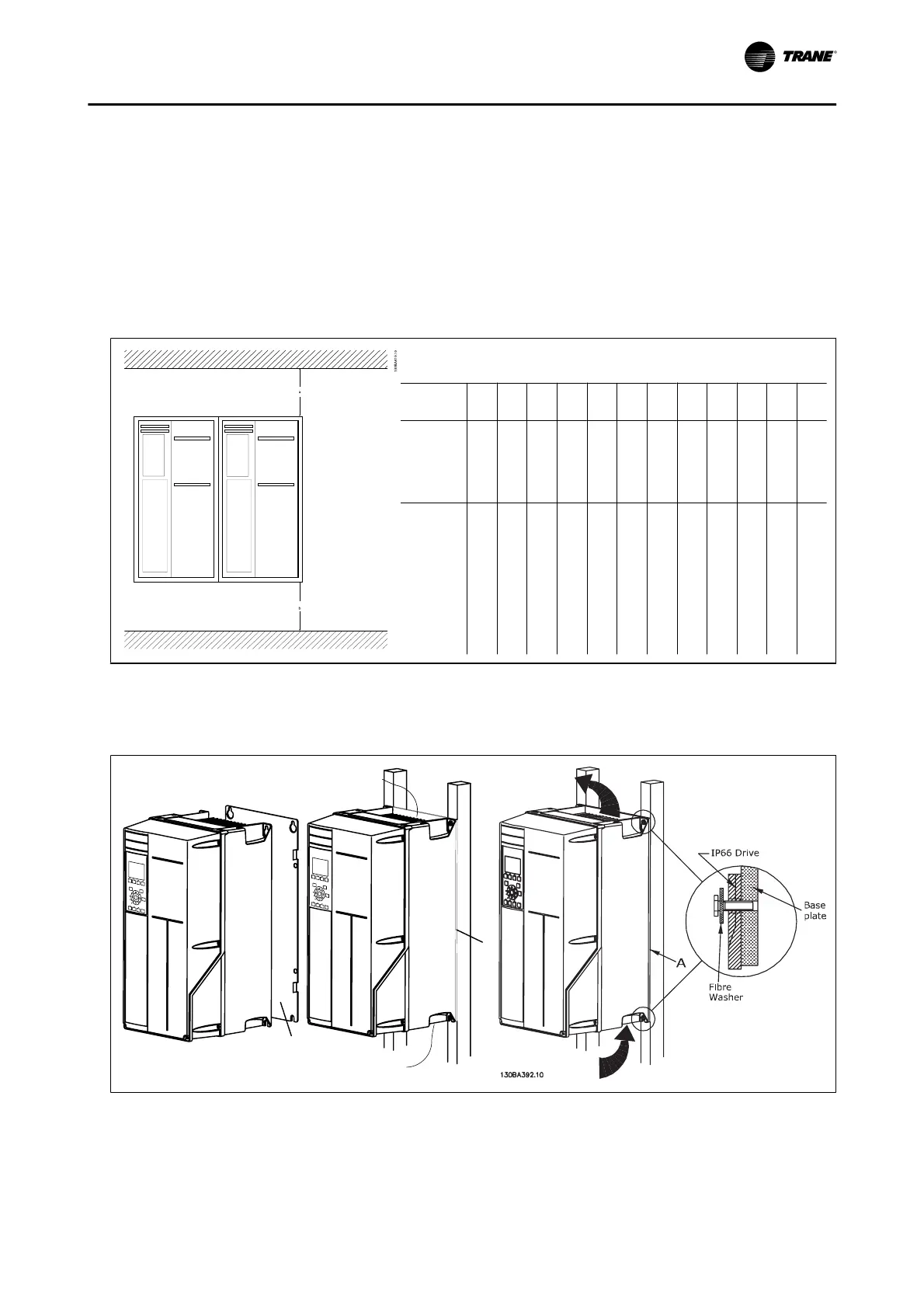

Mechanical Mounting
All IP20 enclosure sizes as well as IP21/ IP55 enclosure sizes except A2 and A3 allow side-by-side installation.
If the IP 21 Enclosure kit (130B1122 or 130B1123) is used on enclosure A2 or A3, there must be a clearance
between the drives of min. 50 mm.
For optimal cooling conditions allow a free air passage above and below the frequency converter. See table
below.
Air passage for different enclosures
Enclo-
sure:
A2 A3 A4 A5 B1 B2 B3 B4 C1 C2 C3 C4
a (mm): 100 100 100 100 200 200 200 200 200 225 200 225
b (mm): 100 100 100 100 200 200 200 200 200 225 200 225
1. Drill holes in accordance with the measurements given.
2. You must provide screws suitable for the surface on which you want to mount the frequency converter. Re-
tighten all four screws.
130BA219.10
A
130BA228.10
A
Mechanical Installation
BAS-SVX19C-EN 3-5
