Mains Connection for C3 and C4

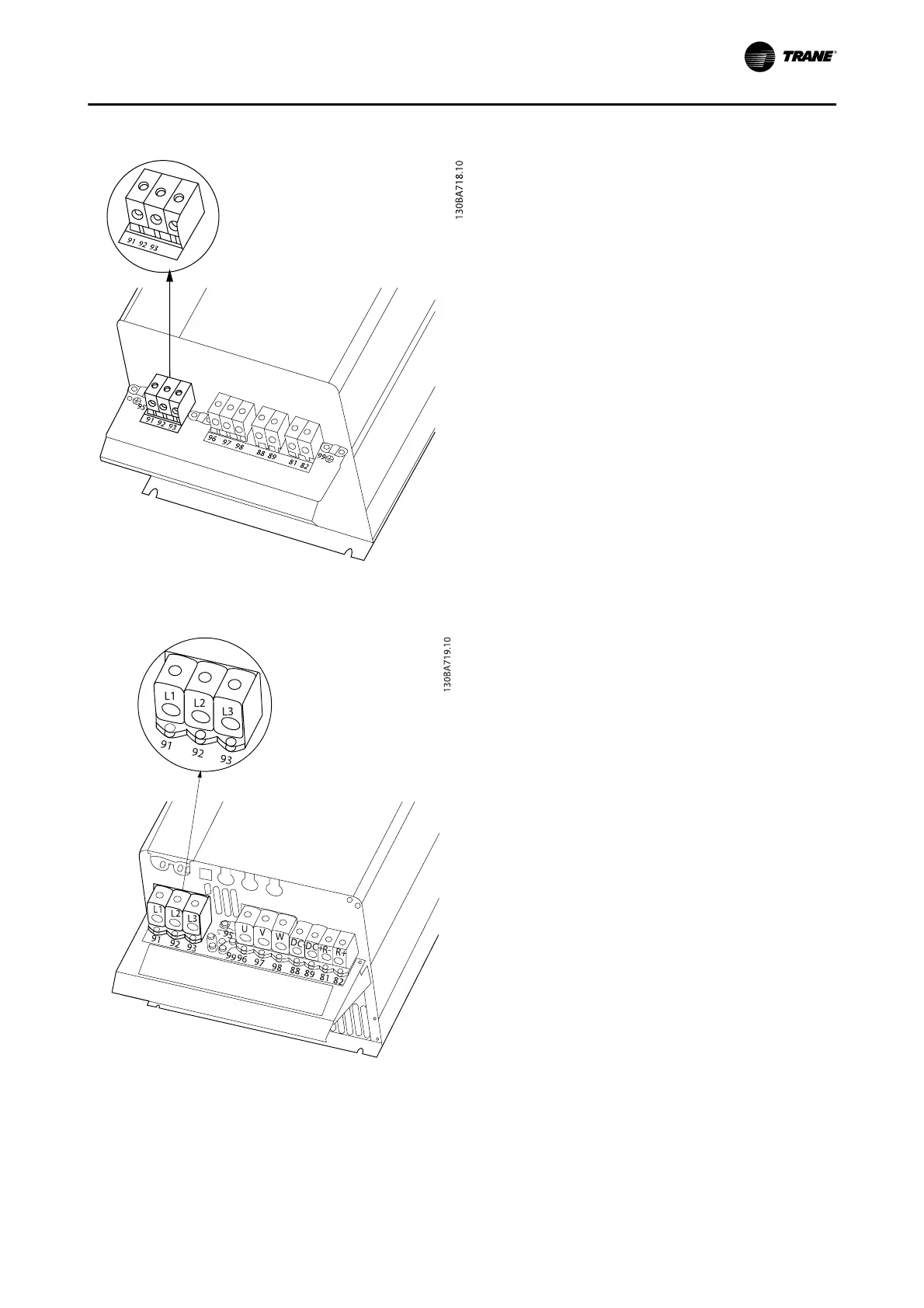

Figure 4. 20: How to connect C3 to mains and earth-
ing.
Figure 4. 21: How to connect C4 to mains and earth-
ing.
Electrical Installation
BAS-SVX19C-EN 4-17
