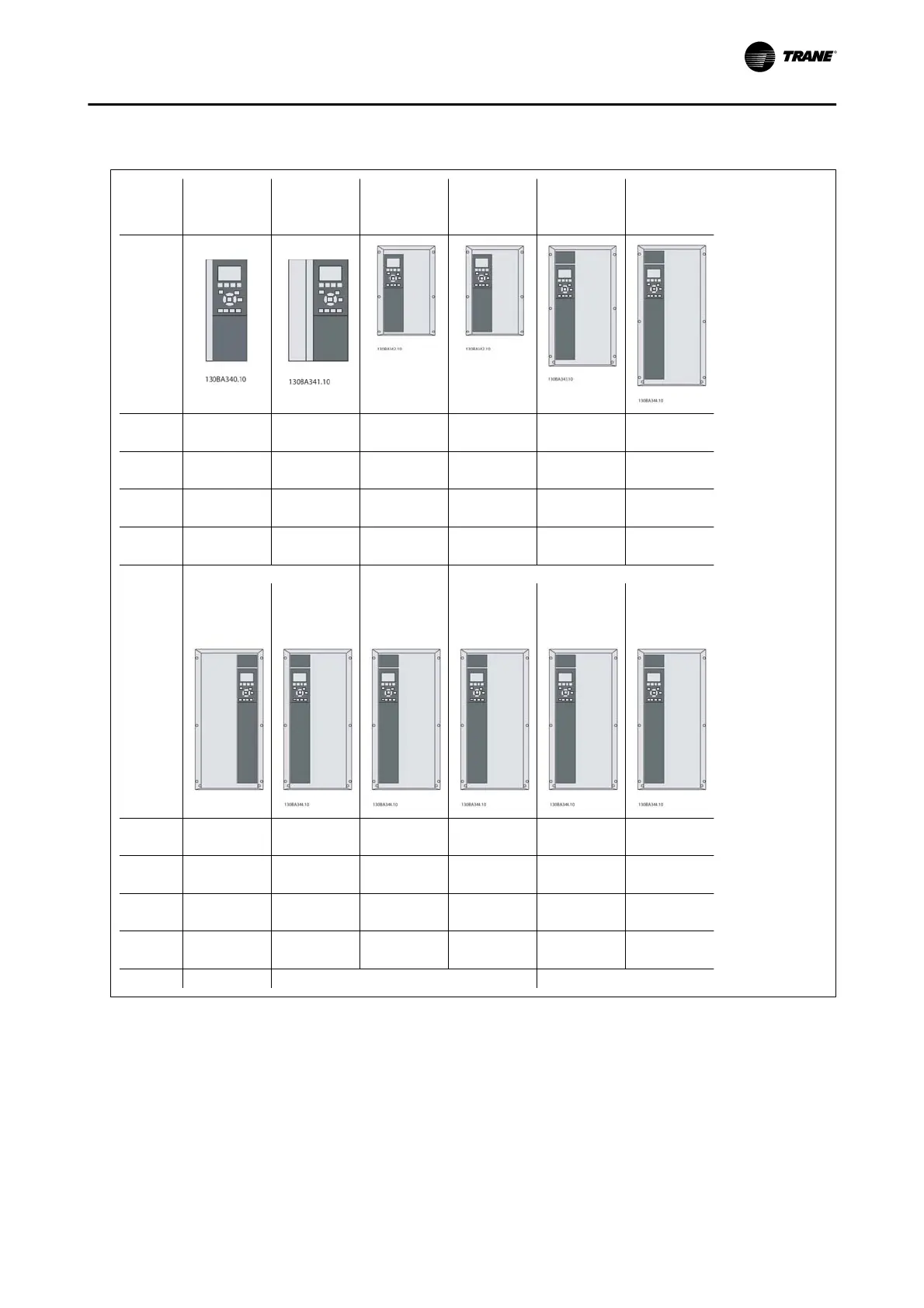

Mains Wiring Overview
Enclo-
sure:
A2
(IP 20/IP 21)
A3
(IP 20/IP 21)
A4
(IP 55/IP 66)
A5
(IP 55/IP 66)
B1
(IP 21/IP 55/
IP 66)
B2
(IP 21/IP 55/
IP 66)
Motor
size:
200-240
V
1.1-3.0
kW
3.7
kW
1.1-2.2 kW
1.1-3.7
kW
5.5-11
kW
15
kW
380-480
V
1.1-4.0
kW
5.5-7.5
kW
1.1-4.0 kW
1.1-7.5
kW
11-18.5
kW
22-30
kW
525-600
V
1.1-7.5
kW
1.1-7.5
kW
11-18.5
kW
22-30
kW
Goto: 4.1.5 4.1.6 4.1.6 4.1.7
Enclo-
sure:
B3
(IP 20)
B4
(IP 20)
C1
(IP 21/IP
55/66)
C2
(IP 21/IP
55/66)
C3
(IP 20)
C4
(IP20)
130BA768.10
Motor
size:
200-240
V
5.5-11
kW
15-18.5
kW
18.5-30
kW
37-45
kW
22-30
kW
37-45
kW
380-480
V
11-18.5
kW
22-37
kW
37-55
kW
75-90
kW
45-55
kW
75-90
kW
525-600
V
11-18.5
kW
22-37
kW
37-55
kW
75-90
kW
45-55
kW
75-90
kW
Goto: 4.1.8 4.1.9
Table 4. 7: Mains wiring table.
