Access to Control Terminals
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote discon-
nects before servicing. Follow proper lockout/tagout pro-
cedures to ensure the power can not be inadvertently
energized. Failure to disconnect power before servicing
could result in death or serious injury.
All terminals to the control cables are located under-
neath the terminal cover on the front of the frequency
converter. Remove the terminal cover with a screw-
driver.
130BT248

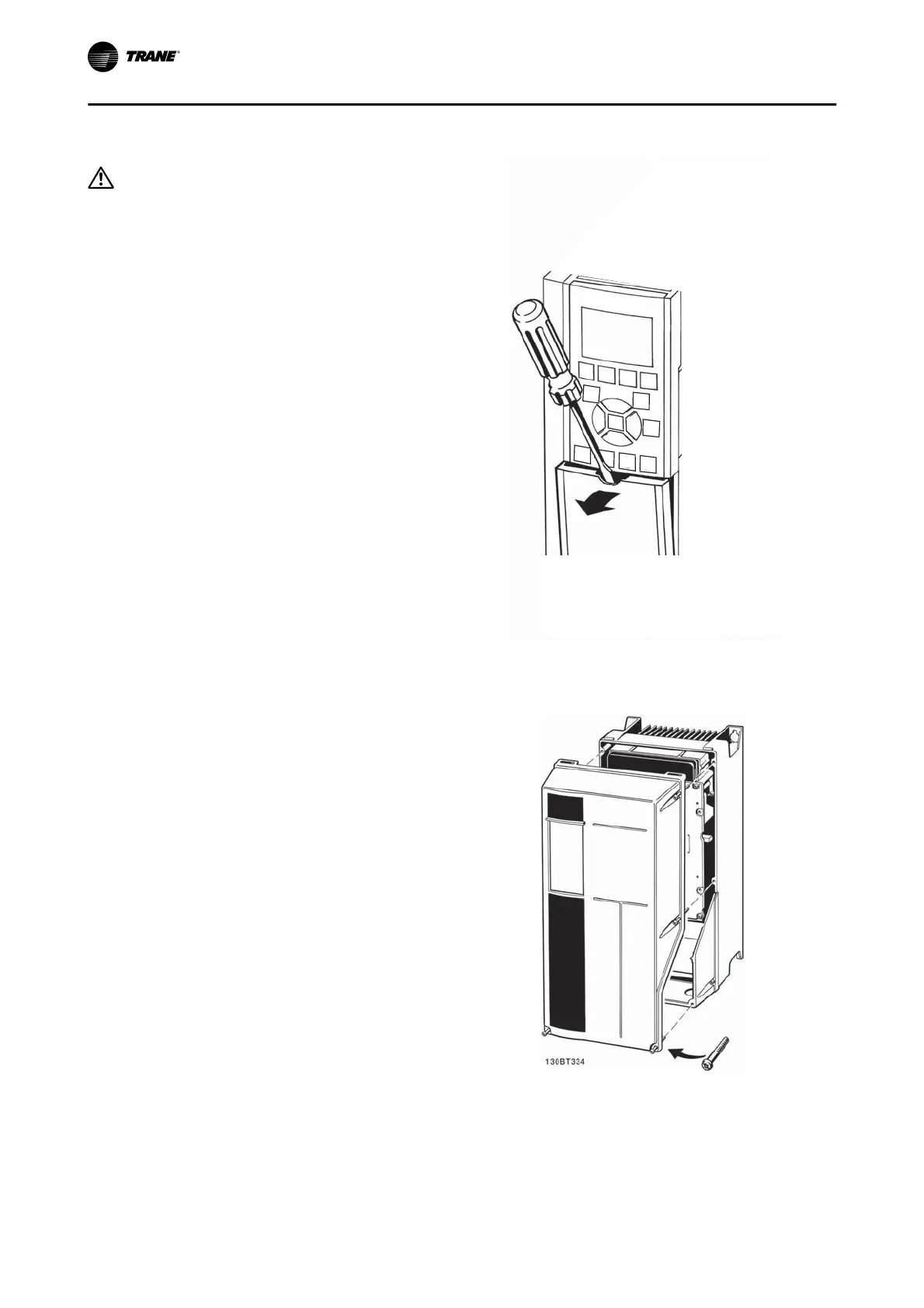

Figure 4. 40: Access to control terminals for A2, A3,
B3, B4, C3 and C4 enclosures
Remove front-cover to access control terminals.
When replacing the front-cover, please ensure proper
fastening by applying a torque of 2 Nm.
Figure 4. 41: Access to control terminals for A4, A5,
B1, B2, C1 and C2 enclosures
Electrical Installation
4-32 BAS-SVX19C-EN
