Function Set-ups
The Function set-up provides quick and easy access to all parameters required for the majority of TR200 appli-
cations including most VAV and CAV supply and return fans, cooling tower fans, Primary, Secondary and Con-
denser Water Pumps and other pump, fan and compressor applications.

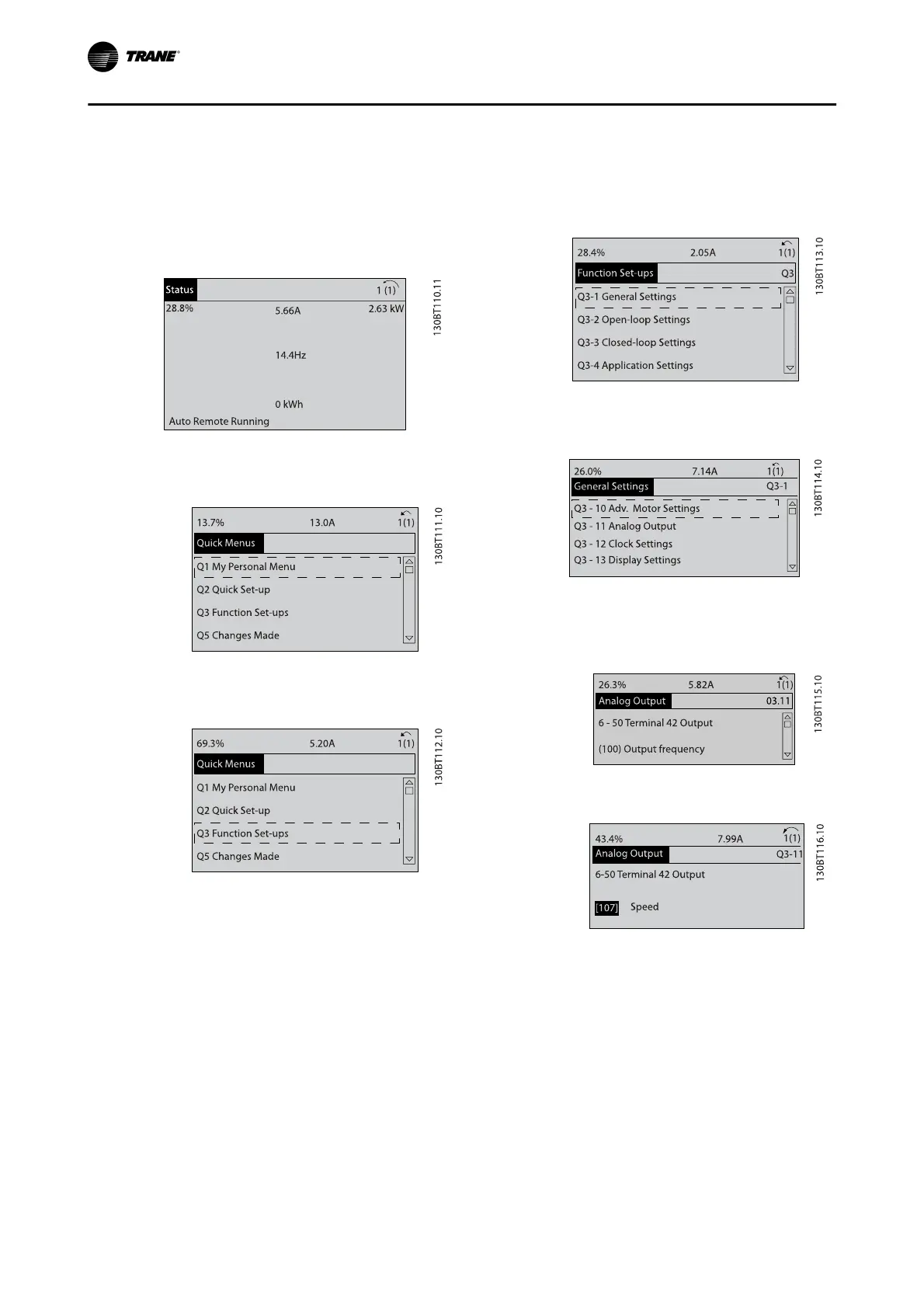

How to access Function set-up - example
Figure 6. 2: Step 1: Turn on the frequency converter
(yellow LED lights)
Figure 6. 3: Step 2: Press the [Quick Menus] button
(Quick Menus choices appear).
Figure 6. 4: Step 3: Use the up/down navigation keys
to scroll down to Function set-ups. Press [OK].
Figure 6. 5: Step 4: Function set-ups choices appear.
Choose Q3-1
General Settings
. Press [OK].
Figure 6. 6: Step 5: Use the up/down navigation keys
to scroll down to i.e. Q3-11
Analog Outputs
. Press
[OK].
Figure 6. 7: Step 6: Choose par. 6-50. Press [OK].
Figure 6. 8: Step 7: Use the up/down navigation keys
to select between the different choices. Press [OK].
How to program the Frequency Converter
6-12 BAS-SVX19C-EN
