Motor Connection for A2 and A3

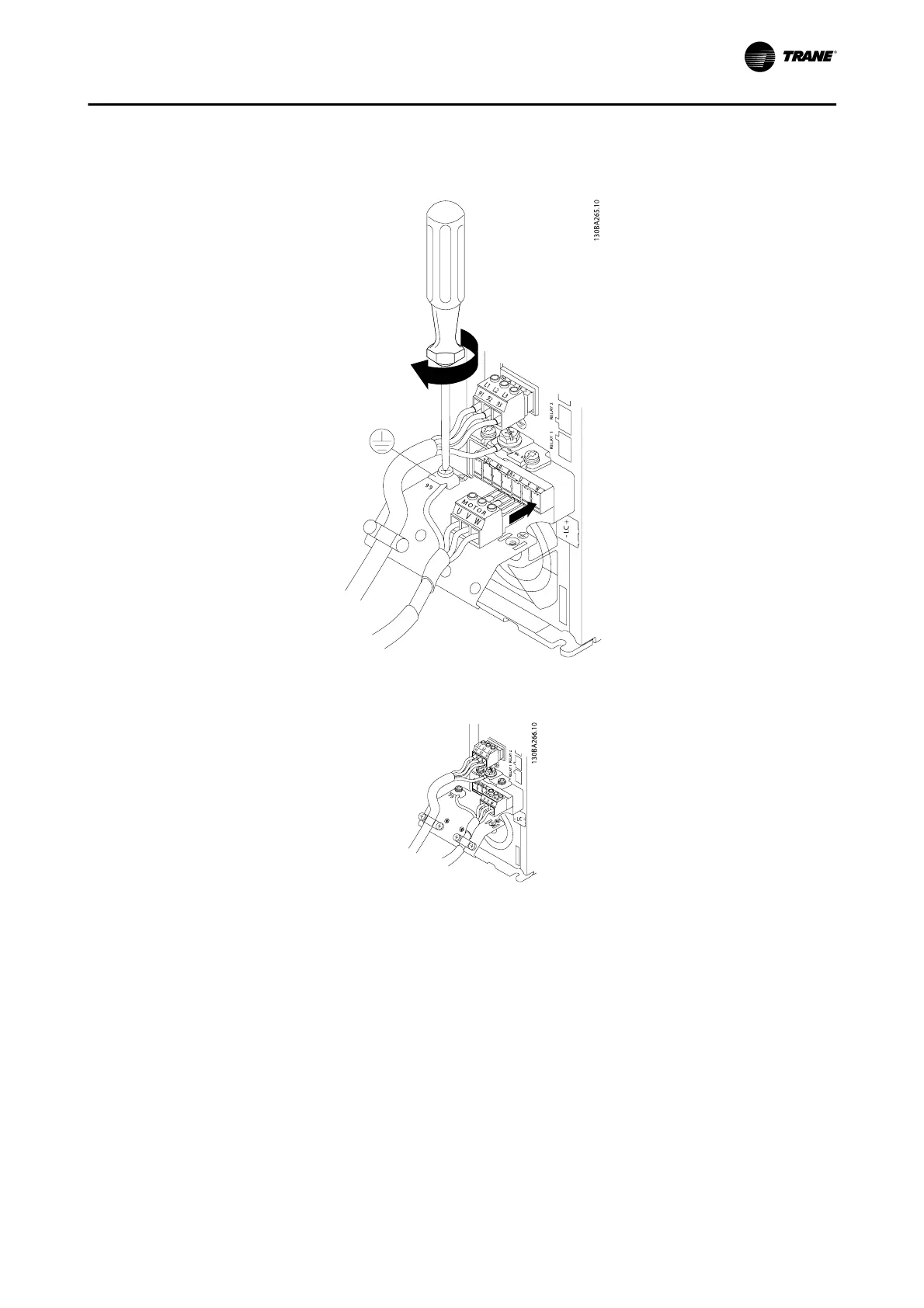

Follow these drawings step by step for connecting the motor to the frequency converter.
Figure 4. 23: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Figure 4. 24: Mount cable clamp to ensure 360 degree connection between chassis and screen, note the outer
insulation of the motor cable is removed under the clamp.
