Relay Connection
To set relay output, see par. group 5-4* Relays.
No. 01 - 02 make (normally open)
01 - 03 break (normally closed)
04 - 05 make (normally open)
04 - 06 break (normally closed)

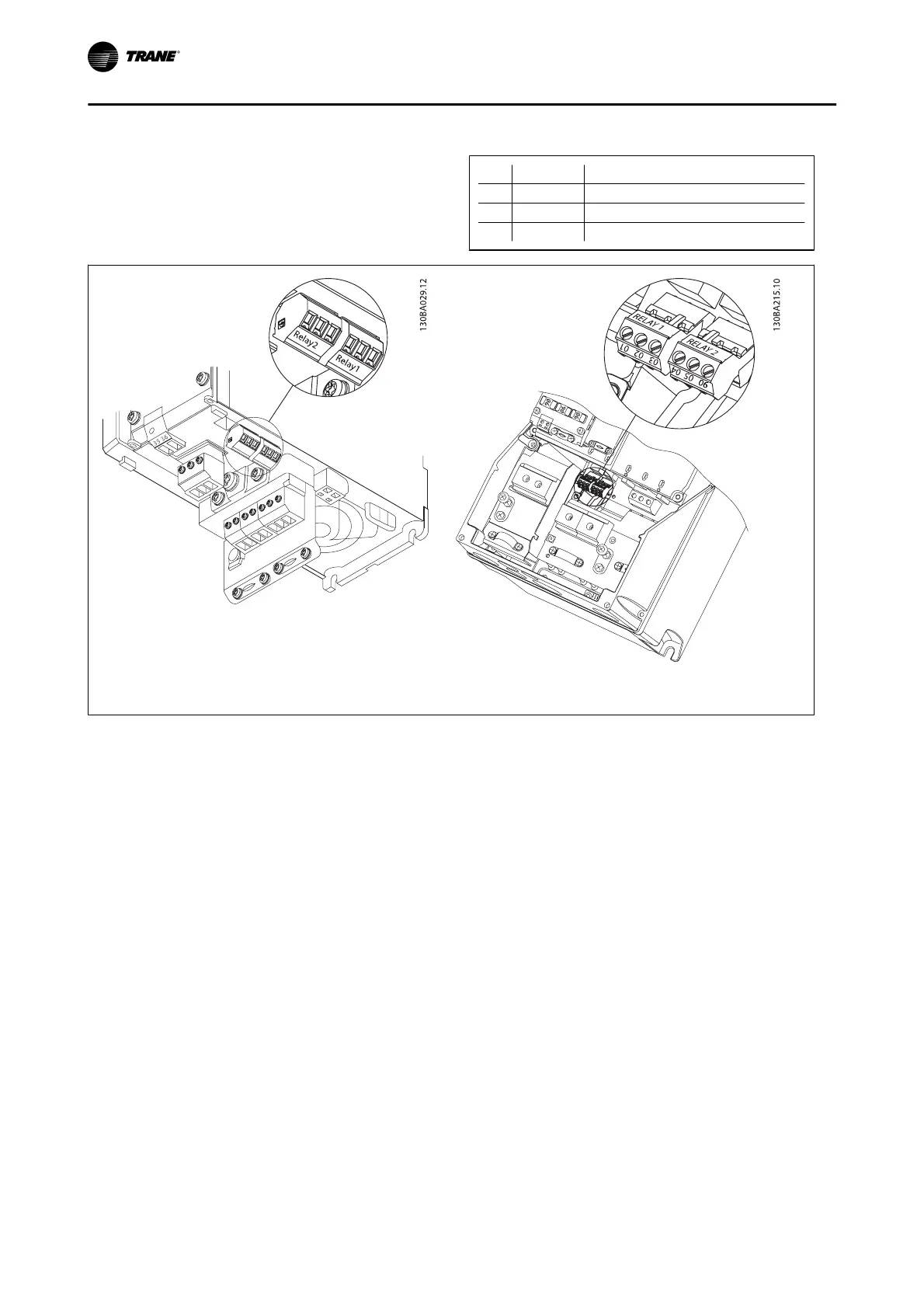

Terminals for relay connection
(A2 and A3 enclosures).
Terminals for relay connection
(A4, A5, B1 and B2 enclosures).
Electrical Installation
4-28 BAS-SVX19C-EN
