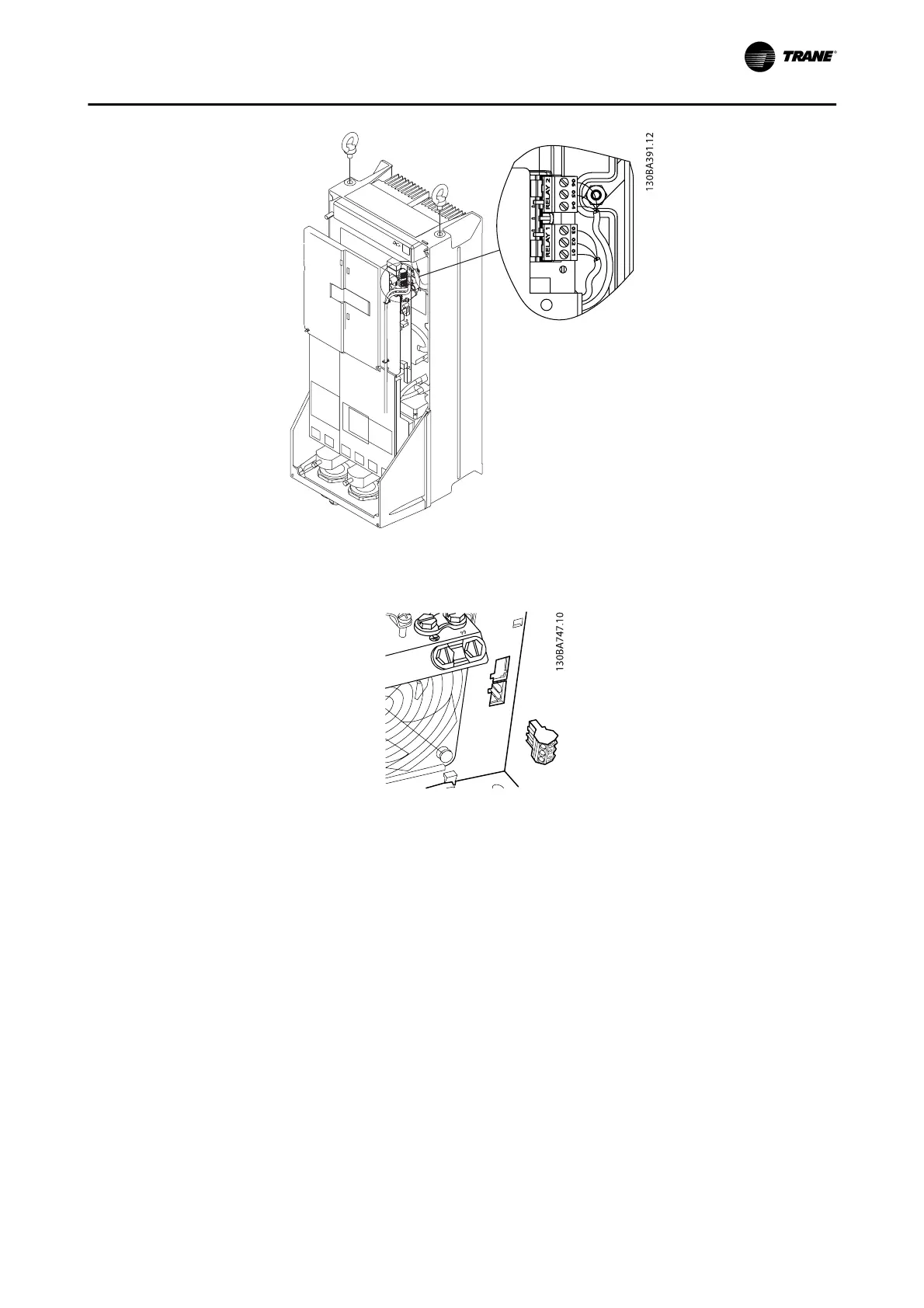

Figure 4. 36: Terminals for relay connection (C1 and C2 enclosures).
The relay connections are shown in the cut-out with relay plugs (from the Accessory Bag) fitted.
Figure 4. 37: Terminals for relay connections for B3. Only one relay input is fitted from the factory. When the second
relay is needed remove knock-out.
Electrical Installation
BAS-SVX19C-EN 4-29
