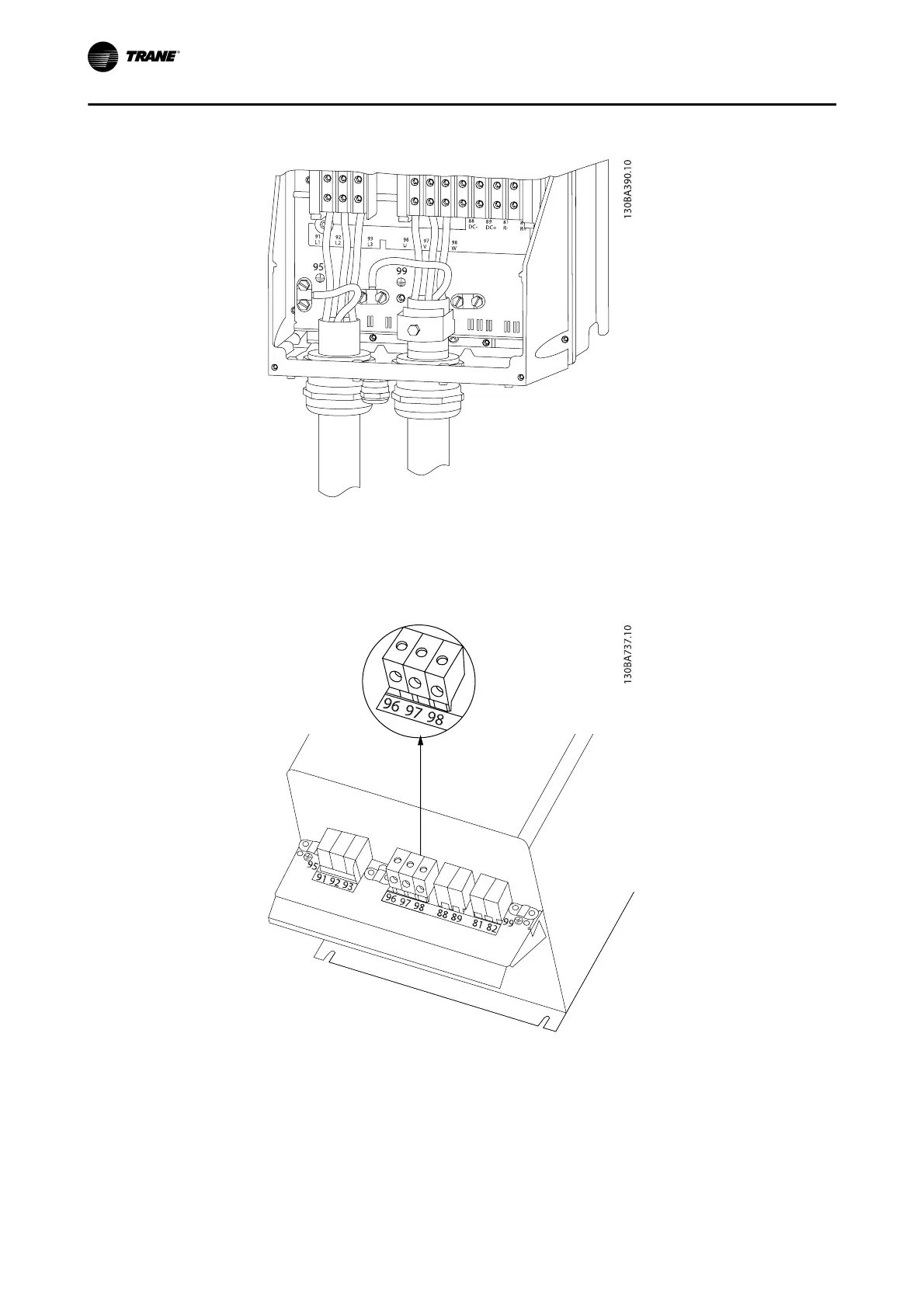

Motor Connection for C1 and C2
First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten. Please ensure that
the outer insulation of the motor cable is removed under the EMC clamp.
Motor Connection for C3 and C4
First terminate the motor earth, then place motor U, V and W wires into the appropriate terminals and tighten.
Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
Electrical Installation
4-24 BAS-SVX19C-EN
