Motor Connection for B3 and B4

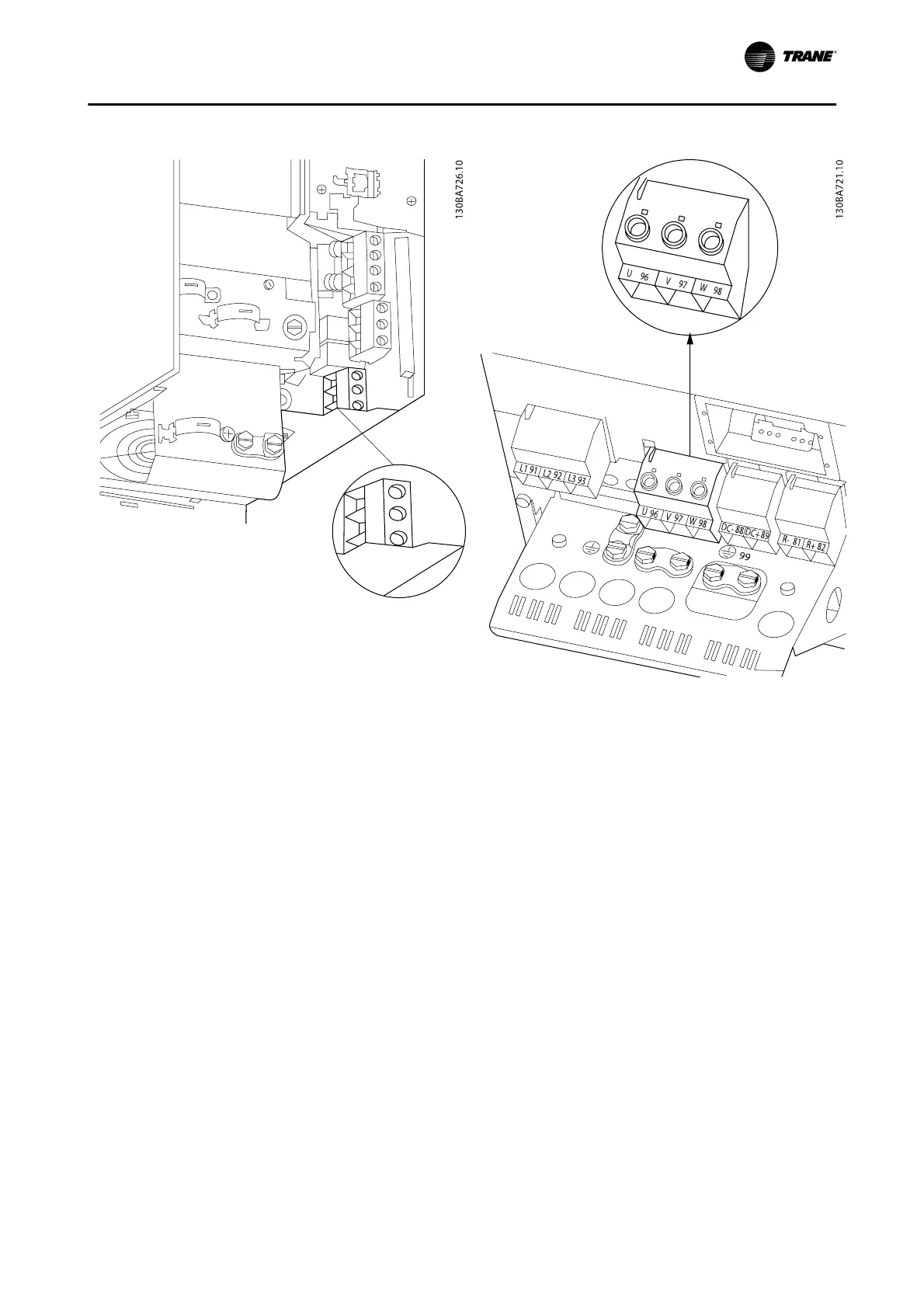

Figure 4. 26: First terminate the motor earth, then
Place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor
cable is removed under the EMC clamp.
Figure 4. 27: First terminate the motor earth, then
Place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor
cable is removed under the EMC clamp.
Electrical Installation
BAS-SVX19C-EN 4-23
