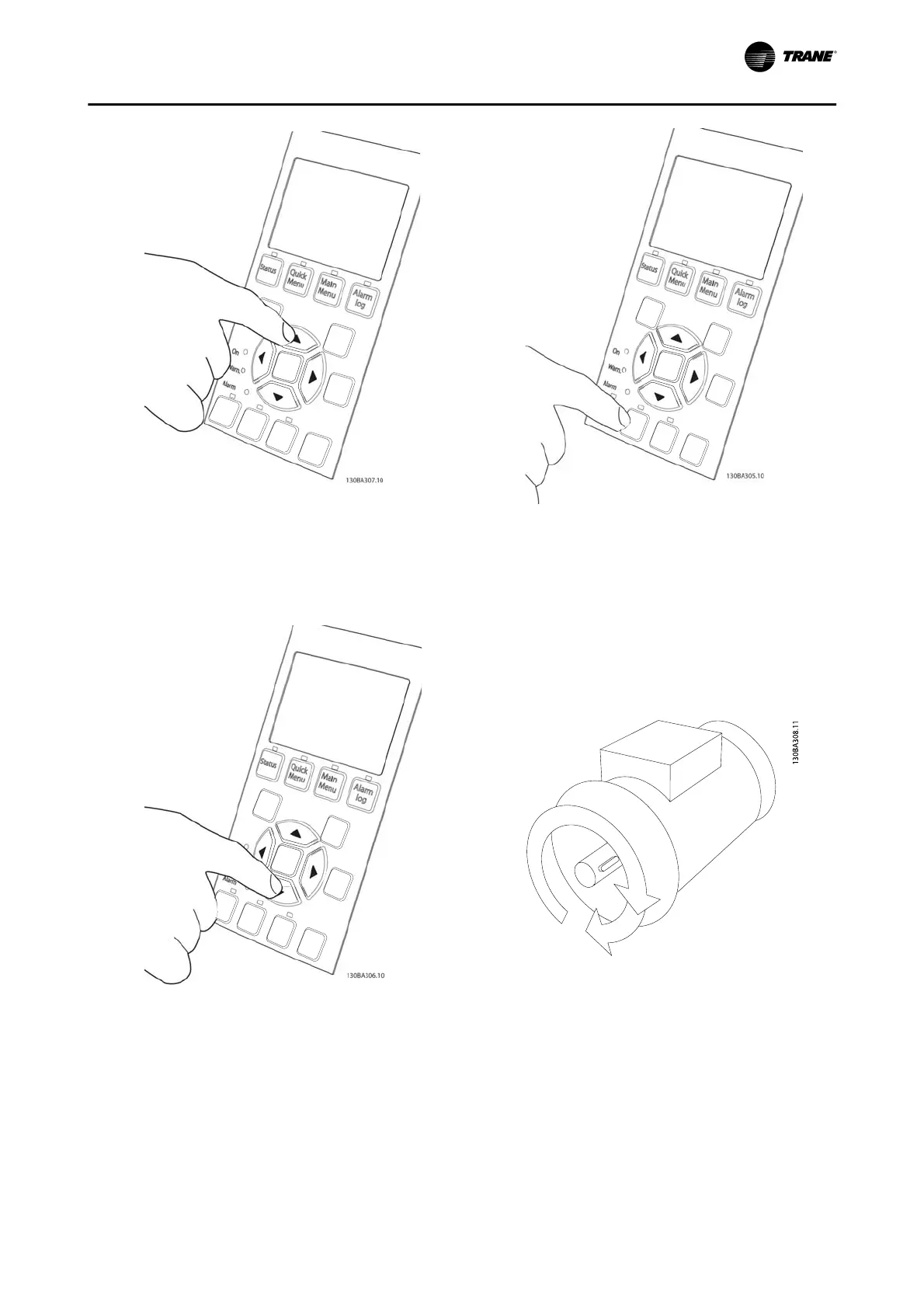

Figure 4. 48:
Step 6: The speed of the motor can be seen in the
keypad. It can be adjusted by pushing the up
▲
and
down
▼
arrow buttons.
OK
Figure 4. 49:
Step 7: To move the cursor, use the left ◄ and right ►
arrow buttons. This enables changing the speed in
larger increments.
OK
Figure 4. 50: Step 8: Press the [Off] button to stop the
motor again.
Hazardous Voltage!
Disconnect all electric power, including remote discon-
nects before servicing. Follow proper lockout/tagout pro-
cedures to ensure the power can not be inadvertently
energized. Failure to disconnect power before servicing
could result in death or serious injury.
Figure 4. 51:
Step 9: Change two motor wires if the desired rotation
of direction is not achieved.
Electrical Installation
BAS-SVX19C-EN 4-35
