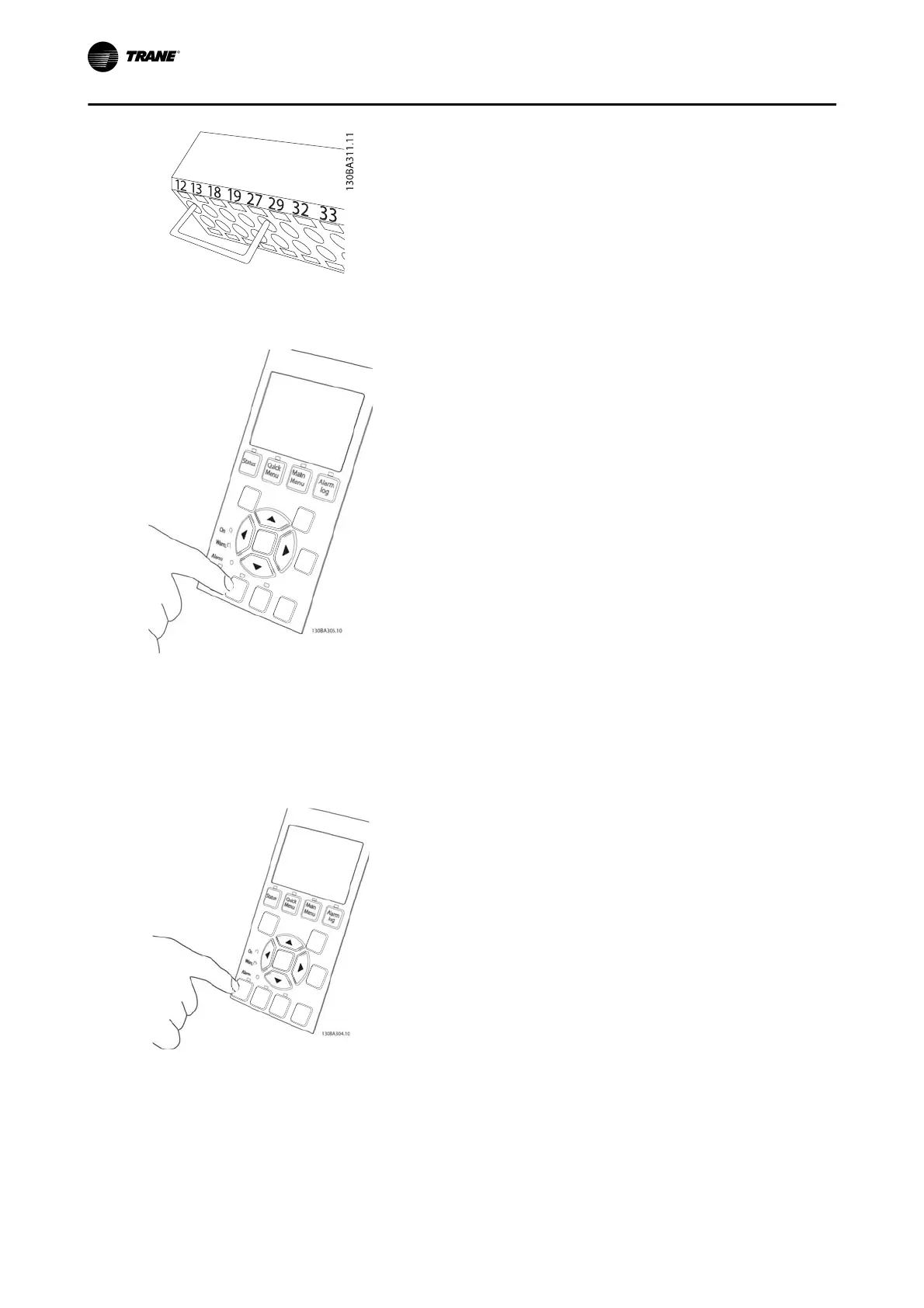

Figure 4. 45:
Step 3: Insert the other end in terminal 12 or 13.
OK
Figure 4. 46:
Step 4: Power-up the unit and press the [Off] button.
In this state the motor should not rotate. Press [Off]
to stop the motor at any time. Note the LED at the
[OFF] button should be lit. If alarms or warnings are
flashing, please see chapter 7 regarding these.
OK
Figure 4. 47:
Step 5: By pressing the [Hand on] button, the LED
above the button should be lit and the motor may ro-
tate.
