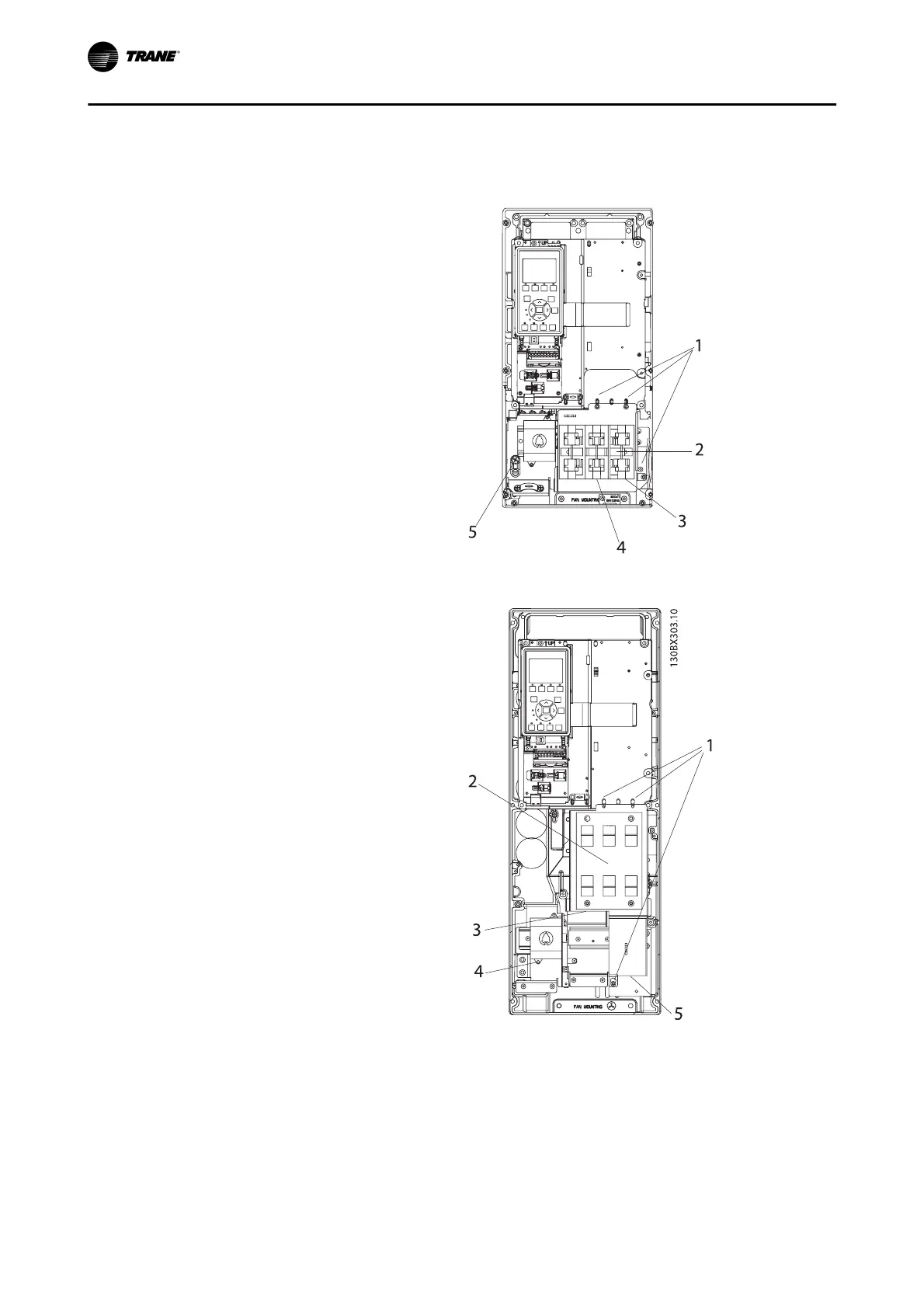

For B1 and B2 frame sizes, motor and relay connections are located under the drive fuse block. To access these
connectors, loosen 3 T-20 screws and move fuse block out of the way. The fuse block does not need to be
disassembled
1. Loosen screws
2. Drive fuses
3. Motor power terminals (remove fuse plate to
connect)
4. Relay terminals
5. Input power terminals
Figure 4. 3: B1
1. Loosen screws
2. Drive fuses
3. Relay terminals
4. Input power terminals
5. Motor power terminals (remove fuse plate to
connect)
Figure 4. 4: B2
Electrical Installation
4-2 BAS-SVX19C-EN
