92INSTRUMENTSANDCONTROLS

W3005510

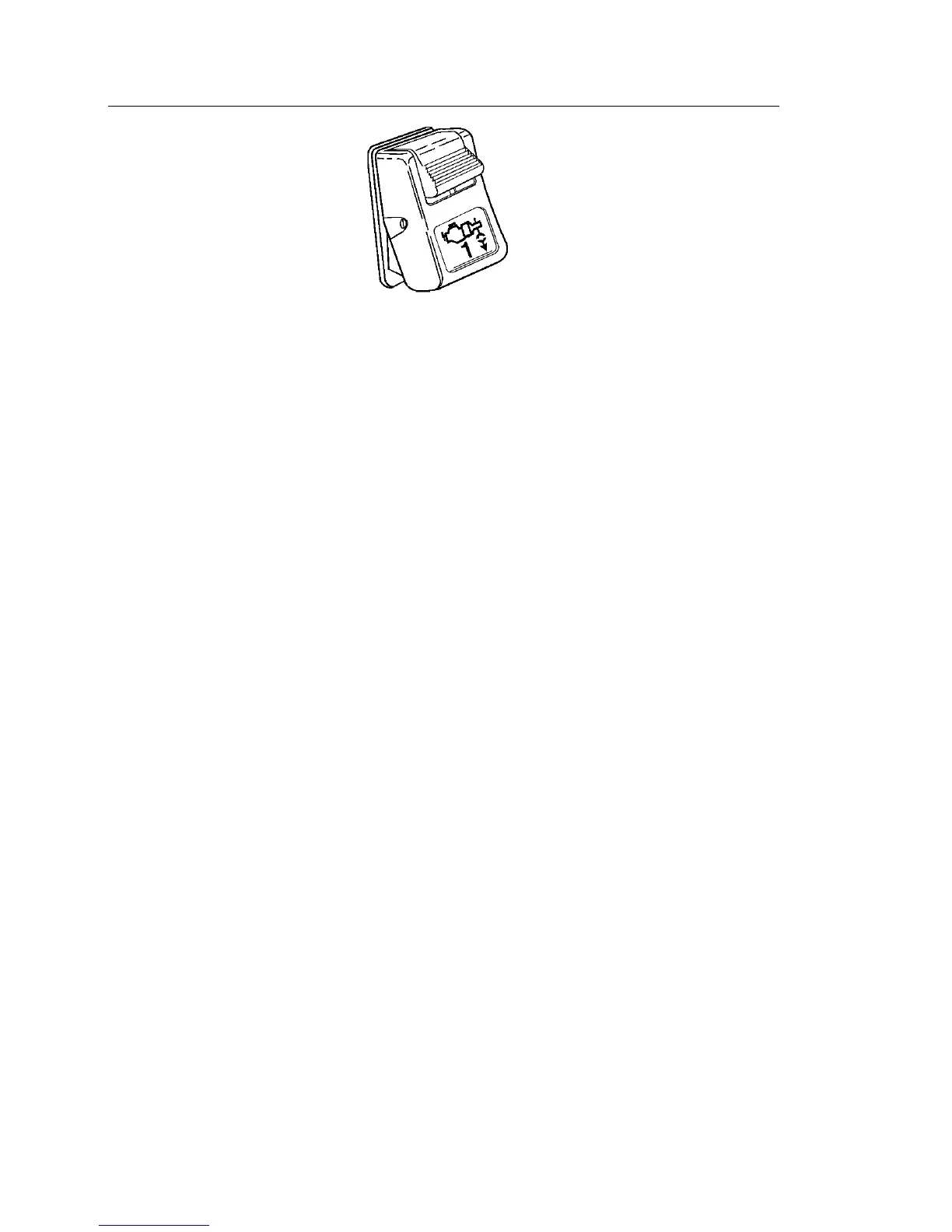

Engine-MountedPTO,VN

Theengineshouldberunningatlowidleandthevehicleshouldbestoppedorrunning

atverylowspeedbeforeengagingpowertake-off.EngagethePTObydepressingthe

lockingtabandatthesametime,depressingthemainpartoftheswitch.ThePTOis

nowinoperationandhydraulicowcanberegulatedbytheenginespeed.
