INSTRUMENTSANDCONTROLS181

VN430SleeperBunk

W8028530

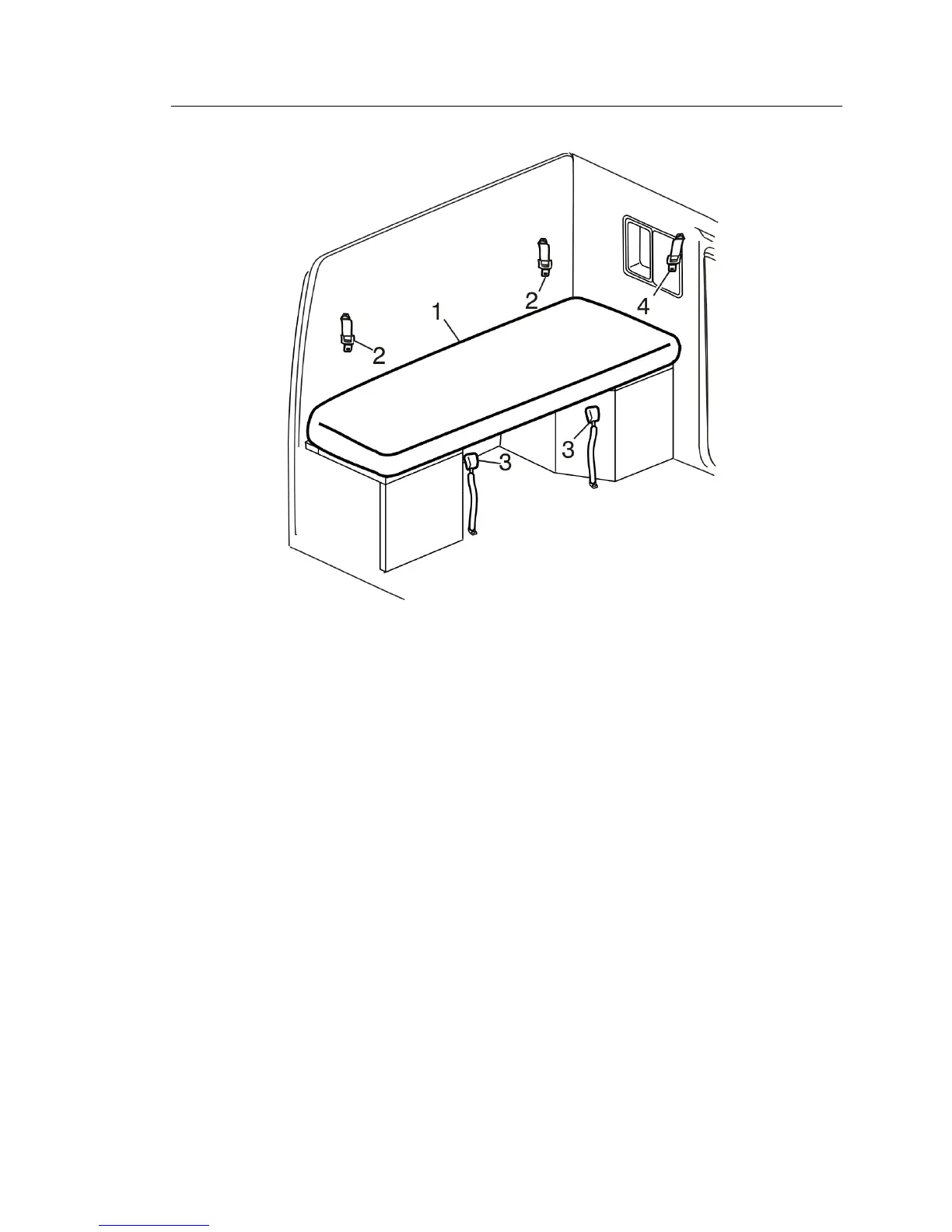

1Bunk

2BunkRestraints

3LowerBunkRestraintAttachmentBuckles

4TentingBuckles
