410MAINTENANCEANDLUBRICATION

HEADLIGHTS

ChangingHeadlightBulb

Note:Topreventshortservicelife,DONOTtouchtheglasssurfaceofthe

replacementbulb.

VNMInstructions

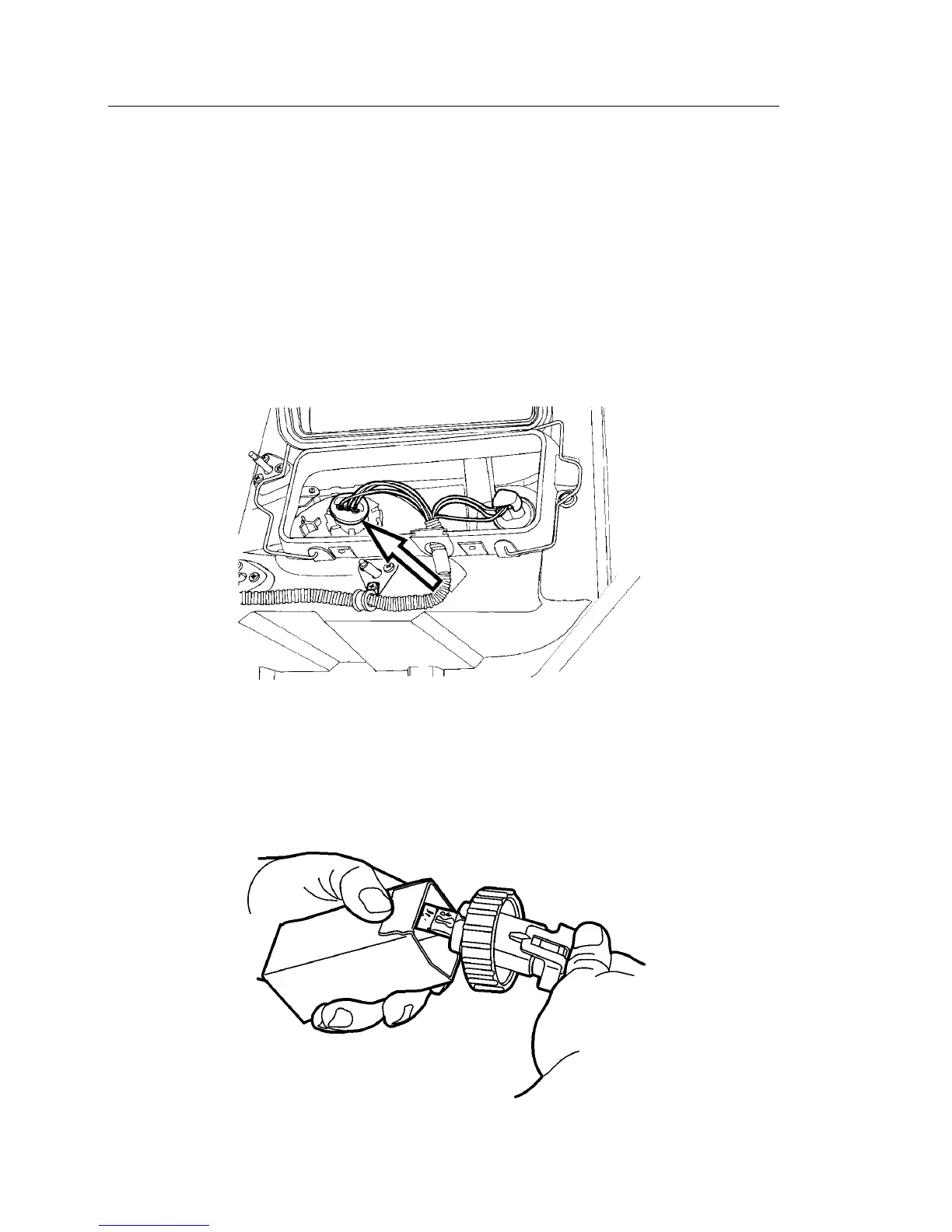

Theheadlightbulbcanbeaccessedfromtherearoftheheadlightassembly.Raisethe

hoodandremovethecover.

Removetheterminalfromthebackofthebulbbybendingupthelocktabsand

pullingbackatthesametime.Turnthelockringcounterclockwiseandremove.

Pulloutthebulb.

W3004382

VNM

Installthebulbandlineupwiththelocationtabbyturningitandthenpushitinuntil

fullyseated.Installthelockring.Pushtheterminalbackon.Checkthattherubber

sealiscleanandtheninstallcoverandsnaptheclampsoverit.

W3004383
