INSTRUMENTSANDCONTROLS59

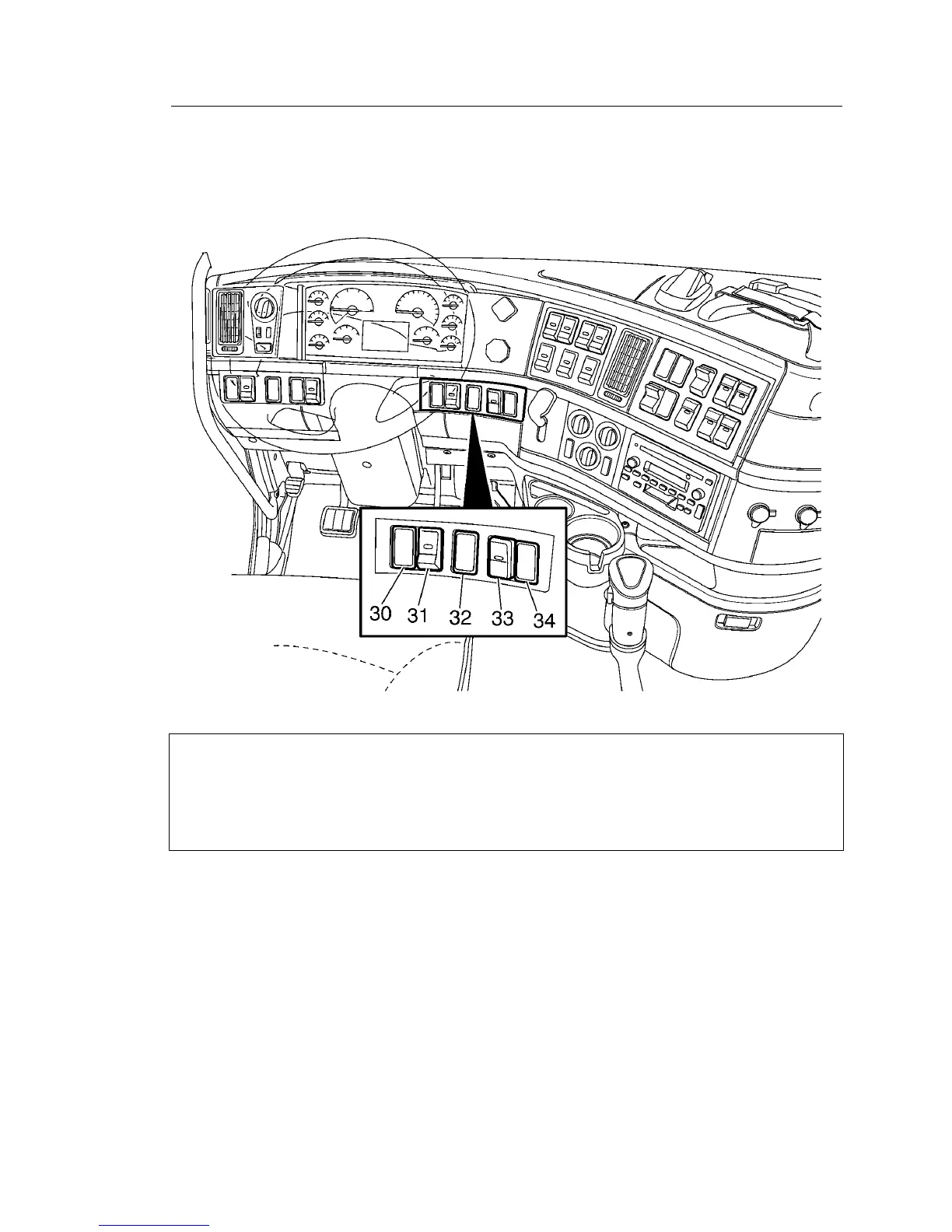

PanelC

W3007471

30.VN:OptionalSwitchorPassengerWindowLift

31.WaterinFuel(PurgeSwitch)

32.OptionalSwitchorAUX/USBPort

33.VN:SleeperFanSpeed

34.VN:OptionalSwitchorBeaconLamps
