252OPERATION

NATIONALSTANDARDSEAT

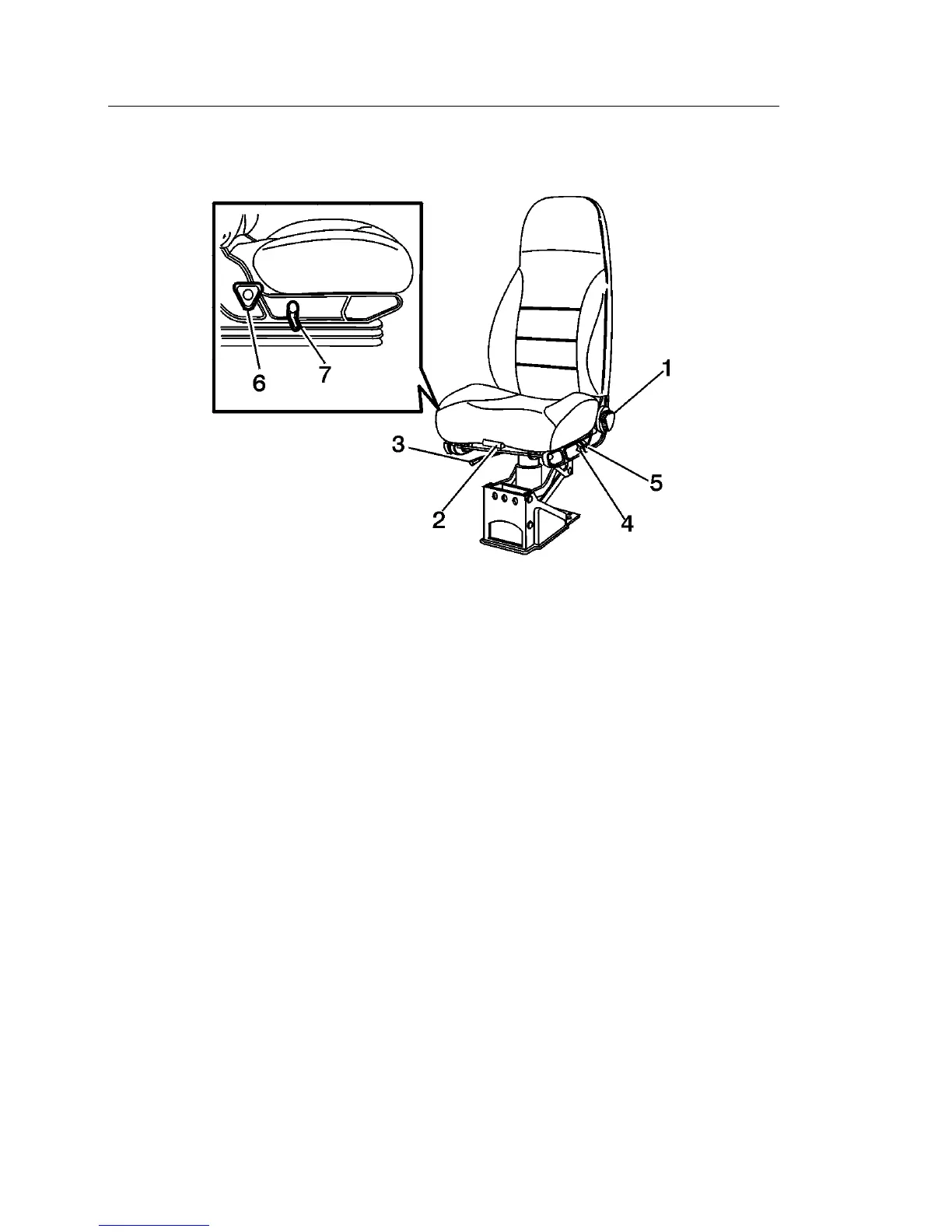

SeatAdjustments

W8002745

NationalStandardSeat

1BackrestTilt:Byrotatingtheroundhandle,thebackrestreclineanglecanbe

adjustedwithin12degrees.

2CushionFrontTiltandLength:Pullingthehandleupandoutadjuststhetilt

andlengthoftheseatcushion.Supportyourbodyweightwithyourfeetwhile

adjusting.

3ForeandAftMovement:Presstheleversidewaystounlocktheseat.Moveseat

foreorafttoanewposition.

4RideHeightAdjustment:Pushtheupperpartoftheswitchuptoincreaseride

height.Pushthelowerpartoftheswitchtodeatetheairbagandlowertheride

height.

5LumbarSupportAdjustment:Pushtheupperpartoftheswitchtoinatethe

supportforarmersupport.Pushthelowerpartoftheswitchtodeatethesupport.

6CushionRearTilt:Rotatethelevertogetdifferentheightpositions.Supportyour

bodyweightwithyourfeetwhileadjusting.

7ChuggerSnubber:Movingthehandledownisolatestheseatfromtheforeandaft

movementofthecab.
