OPERATION243

SafetyRestraintVN780

Connecttherestrainttothebackwallrst.Thewallconnectorsarelocatedinthe

storageunits.Connectthelowerpartoftherestrainttothelowerbuckles.Connectthe

sidetethersandadjustthestrapstoforma"tent"overthebunk.

Note:Therestraintsfortopandbottombunksaredifferent.Eachbeltcanonlybe

installedtothecorrectbunk.

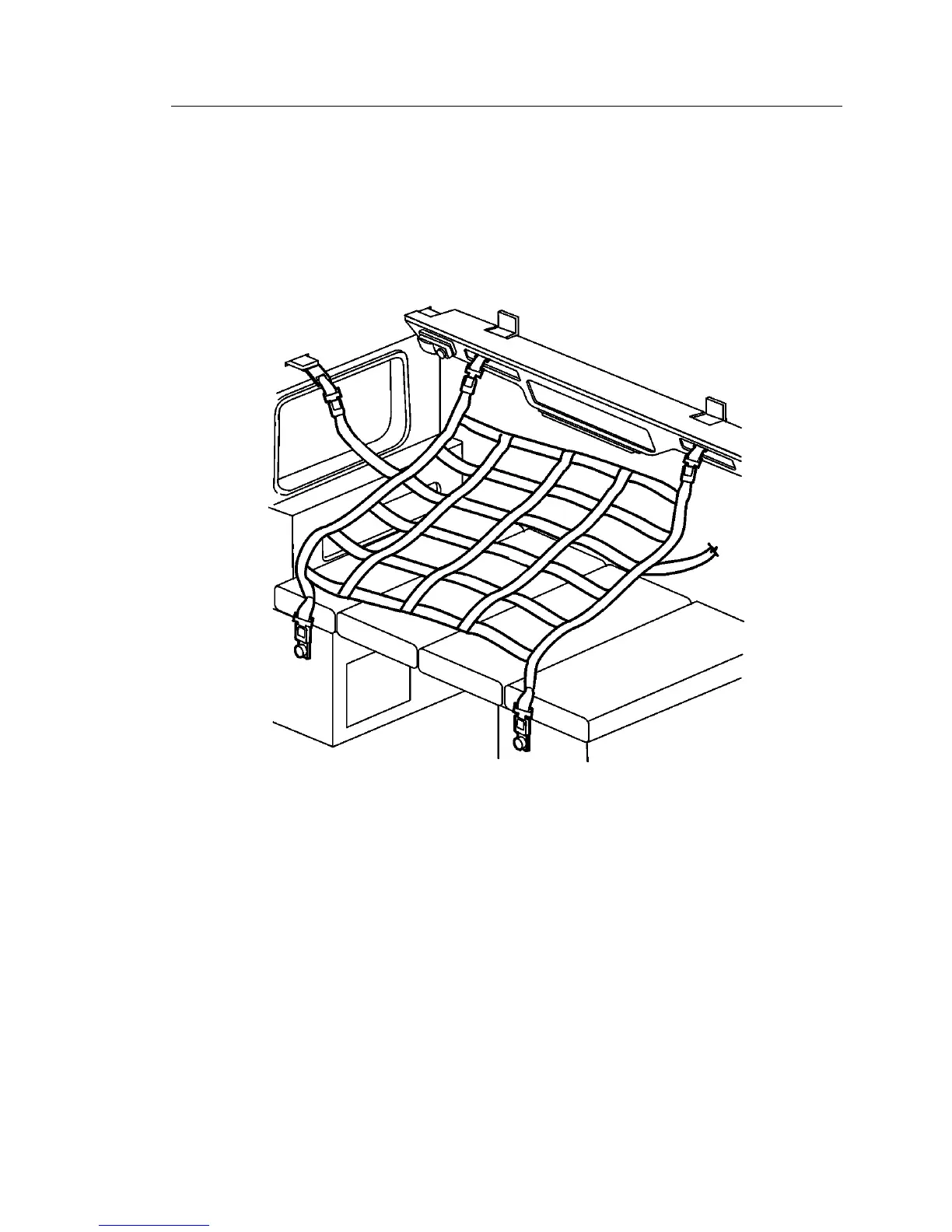

W8003217

LowerBunk
