OPERATION193

Switch/CircuitStatusCheck

TheSwitch/CircuitStatuscheckteststhefunctionalityoftheswitchesandtheir

correspondingcircuits.Tostartthecheckthedrivermustturntheindividualswitches

on/off.Astheswitchesturnon/off,theclusterupdatestheDIDtoshowswitchoption

beingtestedandit’sstatus.

Note:TheHazardandHigh/LowSwitchesaremomentaryswitchesandreturntothe

OFFpositionwhenreleasedduringtesting.

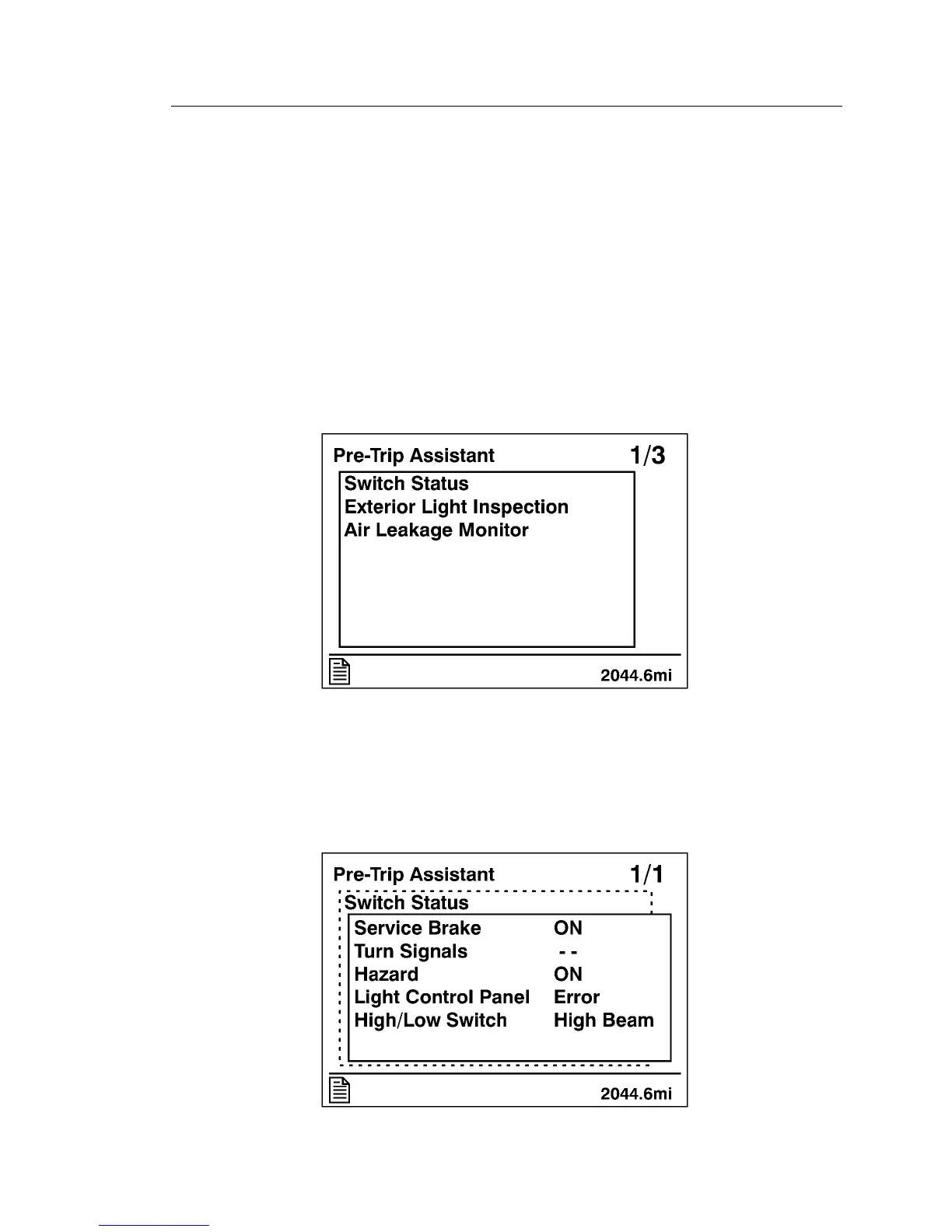

1.TheinitialPre-Tripscreendisplays.

Usingthestalkcontrols,selectSwitch

Status.

W3035544

2.Afterthediagnosticiscompleted,the

followingscreendisplaysdetailingthe

statusofeachswitch.

W3035548
